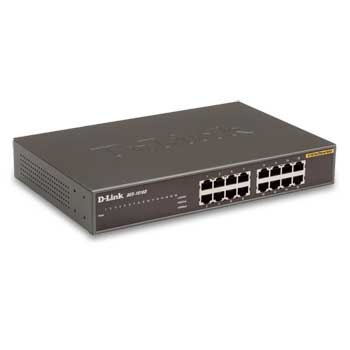

D-Link DES-1016D/B 16 Port 10/100 Desktop Switch
Scan code: LN3704
Manufacturer code: DES-1016D/B
End Of Life
D-Link DES-1016D/B 16 Port 10/100 Desktop Switch
16 Port D-Link Fast Ethernet Desktop Switch
Scan code:
LN3704
Manufacturer code:
DES-1016D/B
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Product Overview
16-Port 10/100Mbps switch for SOHO/Workgroup
The DES-1016D is an unmanaged 10/100Mbps switch designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.
16 Auto-sensing 10/100Mbps Ports
The switch comes with 16 10/100Mbps ports, allowing a small workgroup to flexibly integrate to Ethernet and Fast Ethernet. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full and half-duplex.
Flow Control for Secure Transmission
All ports support flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full.
Auto-negotiation of MDI/MDIX Cross Over
All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable.
Plug-and-Play
With 16 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment. The ports can be connected to servers in full duplex, or hubs in half-duplex.
Direct Connection to Workstations
With low-cost connection per-port, the switch can be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network. Features • 16 10/100Mbps ports.
• Full/half duplex support for each port.
• MDI uplink port for easy expansion.
• Auto-learning of network configuration.
• Flow control in full duplex mode for protection against data loss.
• Back pressure in half duplex mode.
• RAM buffer dynamically allocated for each port.
The DES-1016D is an unmanaged 10/100Mbps switch designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.
16 Auto-sensing 10/100Mbps Ports
The switch comes with 16 10/100Mbps ports, allowing a small workgroup to flexibly integrate to Ethernet and Fast Ethernet. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full and half-duplex.
Flow Control for Secure Transmission
All ports support flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full.
Auto-negotiation of MDI/MDIX Cross Over
All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable.
Plug-and-Play
With 16 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment. The ports can be connected to servers in full duplex, or hubs in half-duplex.
Direct Connection to Workstations
With low-cost connection per-port, the switch can be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network. Features • 16 10/100Mbps ports.
• Full/half duplex support for each port.
• MDI uplink port for easy expansion.
• Auto-learning of network configuration.
• Flow control in full duplex mode for protection against data loss.
• Back pressure in half duplex mode.
• RAM buffer dynamically allocated for each port.
