Scan code: LN108508 Manufacturer code: MZWLJ15THALA-00007

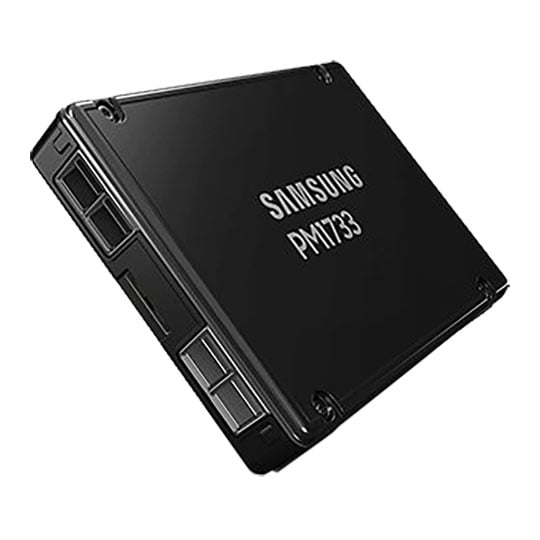

Samsung PM1733 Enterprise U.2 2.5" Enterprise NVMe SSD

15.36TB Samsung MZWLJ15THALA PM1733 2.5" U.2 NVMe SSD

Thumbnail 1 : Samsung PM1733 Enterprise U.2 2.5" Enterprise NVMe SSD Thumbnail 2 : Samsung PM1733 Enterprise U.2 2.5" Enterprise NVMe SSD
Scan code: LN108508 Manufacturer code: MZWLJ15THALA-00007
£3,407.99Item currently awaiting an ETA
Pre order
From £85.59 / month (APR 9.9%) or 0% for 4 months
Monthly Payment: £298.79
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £3,407.99
Total inc. interest: £3,585.46
Monthly Payment: £156.44
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £3,407.99
Total inc. interest: £3,754.56
Monthly Payment: £109.14
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £3,407.99
Total inc. interest: £3,928.72
Monthly Payment: £85.59
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £3,407.99
Total inc. interest: £4,107.88
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £85.12 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

Welcome to A New Era of Performance and Reliability

Enterprise environments have unique requirements to ensure their storage hardware operates optimally 24/7, 365 days a year. Varied levels of performance with low latency is essential. It is also critical that these environments remain stable when processing countless read and write workloads. The most crucial criteria of all is protection from data corruption or loss due to unexpected power outages. Considering each of these factors, IT and data centre managers are tasked with finding high performing and extremely dependable memory solutions.

For the first time, Samsung is introducing three new technologies on a single solid state drive - the PM1733. Samsung's SSD virtualisation allows each PM1733 to be divided into 64 separate virtual drives. V-NAND Machine Learning enables the SSD to accurately predict and verify cell characteristics, as well as detect any variations in circuit patterns.

Furthermore, the drive features revolutionary "fail-in-place" (FIP) technology, which allows the PM1733 to identify failing NAND cells, and actually recover then relocate the data without interrupting normal operations or impacting performance. The PM1733 is the first of a new class of "never-die" SSDs - brought to you only by Samsung, the leader in flash technology.

Extreme Performance

Featuring support for PCIe Gen 4, the PM1733 delivers up to 7GB/s Sequential and 1.5M IOPS Random Read speeds, making it the highest performing SSD ever.

Revolutionary Reliability

Samsung's new Fail-in-Place technology coupled with V-NAND Machine Learning gives the PM1733 unmatched durability.

Unmatched Flexibility

The PM1733 supports a range of capacities, from 1.6TB to an industry leading 15.36TB. In addition, each PM1733 can be virtually provisioned, offering up to 64 separate virtual drives.

The NVMe Advantage

The NVMe protocol was built from the ground up to maximise flash storage performance and minimise latency. PM1733 offers 40% and 60% improvements in latency over SSDs using SAS and SATA protocols.

Physical and Digital Flexibility to Fit Your Needs

The PM1733 supports PCIe Gen 3 and PCIe Gen 4, and is available in several capacities. In addition, its firmware can be modified by the user to exchange some drive capacity for additional endurance. These features provide you with the flexibility to bring top-tier performance and reliability to a variety of architectures and environments.

The PM1733 is configured as capacity-optimised, providing 1 DWPD at 1.92TB, 3.84TB, 7.68TB, and 15.36TB. Alternatively, it can be reconfigured for endurance and performance optimisation, with 3 DWPD at 1.6TB, 3.2TB, 6.4TB and 12.8TB. The capacity-optimised version is most popular when utilising dual port functionality in all-flash-array applications.

Enterprise-Grade Power Loss Protection

During normal power-off periods, the host server allocates time to preserve data integrity by transmitting a standby command to each storage device. In the event of an unexpected power loss, though, the cached data in a device’s internal buffers (DRAM) can be lost. This can occur with unexpected power outages, or when users unplug devices from the system. However, the Samsung PM1733 SSD has been designed to prevent data loss resulting from unexpected power shutdowns with its power-loss protection architecture. Upon detection of a failure, the SSD immediately uses the stored energy from tantalum capacitors to provide enough time to transfer the cached data in DRAM to the flash memory, ensuring no loss of data.

Delivering Highly Optimised Performance for Various Data Centre Applications

The Samsung PM1733 SSD is optimised to excel in virtually any data centre scenario. This enterprise-level, ultra-high performance SSD provides exceptional random read speeds and is particularly suitable for read-intensive data centre applications.

Delivering Dual-Port NVMe to the Enterprise

PM1733 supports dual-port functionality, enabling high availability via two access paths to the storage array controller. This delivers the reliability, availability and serviceability (RAS) that is required for enterprise storage, allowing SAS SSDs to be replaced by high-performance NVMe SSDs in all-flash-array architectures.

Get the Most from Your Flash

Samsung’s SSD virtualisation technology allows a single SSD to be subdivided into a maximum of 64 smaller SSDs, providing independent virtual workspaces. It also enables SSDs to take on certain tasks typically carried out by the server CPUs, such as SingleRoot I/O Virtualisation (SR-IOV), requiring fewer server CPUs and SSDs. This significantly reduces the server footprint, for enhanced overall IT efficiency.

V-NAND Machine Learning, a new functionality available only on the Samsung PM1733, helps the SSD to accurately predict and verify cell characteristics, as well as detect any variation among circuit patterns through big data analytics. This capability allows the PM1733 to offer the superior data reliability, greater performance, and more efficient use of capacity needed in server and data centre storage systems.

• Fail-In-Place technology: Ensures the SSD operates normally even when errors occur at the chip level.
• Zoned Namespace: PM1733 is capable of supporting ZNS implementations.
• FIPS compliance: PM1733 can be FIPS certified to satisfy government requirements.
Capacity 15.36TB
Edition PM1733
Form Factor 2.5"
Height 15 mm
Interface PCIe 4.0 (x4)
Host Controller Interface NVMe 1.3
Flash Memory Type Samsung V-NAND
Max. Read 7000 MB/s
Max. Write 3500 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 1.5M IOPS
Max. Random Write 4K 135000 IOPS
Latency N/A
Special Features
  • NVMe-MI (Management Interface) Support
  • TCG/Opal V2.0
Power Consumption (active) 20W
Max. Endurance Rating 1 DWPD for 5 years
MTBF 2000000 Hours
Max. Operating Vibration
Max. Non-operating Vibration
Max. Operating Shock
Max. Non-operating Shock
OS Support
Bracket N/A
Dimensions 69 x 15 x 100 mm (WxHxD)
Package Type
Additional Information
Scan Code LN108508
Model Number MZWLJ15THALA-00007
GTIN 5450901228

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

60 months
DOA Period:
7 days
RTB Period:
1 months
Manufacturer Contact Details
0330 (7267864)
