Scan code: LN100469 Manufacturer code: SSDPE2NV153T801

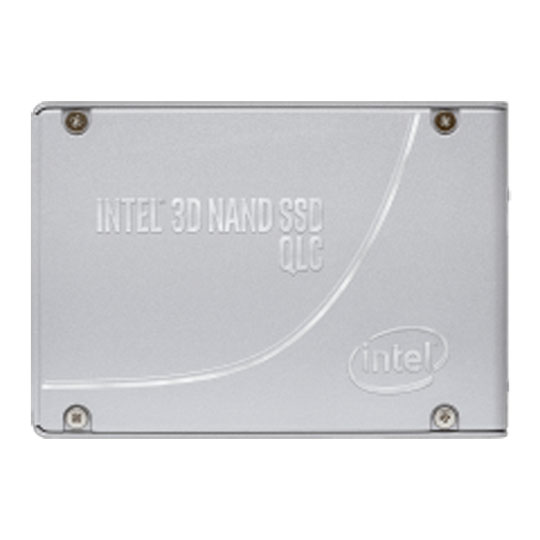

Intel SSD D5 P4326 15.36TB 2.5" U.2 PCIe NVMe Enterprise Datacenter SSD

15.36TB Intel D5-P4326 2.5" U.2 SSD, PCIe 3.1 (x4), NVMe, QLC 3D NAND, 3200MB/s Read, 1600MB/s Write, 580k/11k IOPS

Scan code: LN100469 Manufacturer code: SSDPE2NV153T801
£3,281.99Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

Store More, Save More, Do More with Intel QLC Technology & PCIe Performance

Designed to deliver massive, affordable capacities with PCIe performance, the Intel SSD D5-P4326 consolidates storage footprints and reduces operational cost vs. legacy storage.

The Intel SSD D5-P4326 offers Intel QLC technology, PCIe performance and the flexibility to scale solutions, maximise capacity, and improve operational efficiency at scale, available here in the U.2 form-factor.

The Intel QLC technology inside the Intel SSD D5-P4326 provides 33% more bits per cell than prior generation Intel 3D NAND drives, consolidating the data centre storage footprint up to 20x. In addition to capacity, replacing HDDs with Intel QLC SSDs reduces power, cooling and drive replacement costs. Thanks to the PCIe-based design, performance also gets a boost over SATA drives, allowing greater usable capacity meeting IOPS/TB requirements.

Innovations Delivering Operational Efficiency

The D5-P4326 is a cost optimised addition to Intel’s QLC family. This affordability makes the D5-4326 ideally suited to displace hard disks in all-HDD arrays and hybrid arrays. In addition to storage consolidation, data centres choosing to displace HDDs can lower power cost, reduce cooling cost and significantly save on drive replacement cost.

PCIe Accelerates Workloads at Large Capacities

The IOPS of a drive is a fixed number meaning that as a drives capacity gets larger IOPS/TB get smaller. This can be problematic with certain storage workloads that have minimum IOPS/TB requirements. The performance advantage of the PCIe interface vs. SATA interface means IOPS/TB remain sufficiently high even as capacities scale.

Backed by Intel Experience & Innovation

Intel brings longstanding expertise and disruptive innovation in data management to address the capacity and performance issues of today’s data centres. Prepare for the future with PCIe Intel QLC SSDs, backed by Intel’s technology and manufacturing leadership.

• Capacity: 15.36TB.
• Form Factor: 2.5".
• Height: 15mm.
• Interface: PCIe 3.1 (x4).
• Host Controller Interface: NVMe.
• Flash Memory Type: Intel 64-Layer QLC 3D NAND.
• Max. Read: 3200 MB/s.
• Max. Write: 1600 MB/s.
• Max. Random Read 4K: 580000 IOPS.
• Max. Random Write 4K: 11000 IOPS.
• Latency: 135 µs Read / 60 µs Write.
• AES 256-bit Hardware Encryption.
• End-to-End Data Protection.
• Enhanced Power Loss Data Protection.
• Temperature Monitoring and Logging.
• UBER: < 1 sector per 10^17 bits read.
Capacity 15.36TB
Edition Intel SSD D5-P4326 Series
Form Factor 2.5"
Height 15 mm
Interface PCIe 3.1 (x4)
Host Controller Interface NVMe
Flash Memory Type Intel 64-Layer QLC 3D NAND
Max. Read 3200 MB/s
Max. Write 1600 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 580000 IOPS
Max. Random Write 4K 11000 IOPS
Latency 135 µs Read / 60 µs Write
Special Features
  • AES 256-bit Hardware Encryption
  • End-to-End Data Protection
  • Enhanced Power Loss Data Protection
  • Temperature Monitoring and Logging
  • UBER: <1 sector per 10^17 bits read
Power Consumption (active) 20W
Max. Endurance Rating 5PBW (random), 24.6PBW (sequential)
MTBF 2,000,000 Hours
Max. Operating Vibration 2.17 GRMS
Max. Non-operating Vibration 3.13 GRMS
Max. Operating Shock 1000 G
Max. Non-operating Shock 1000 G
Connectivity 1 x U.2
OS Support
Bracket N/A
Weight 134 g
Package Type Retail
Additional Information
Scan Code LN100469
Model Number SSDPE2NV153T801
GTIN 00735858384315
