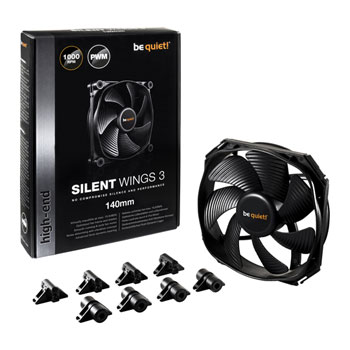

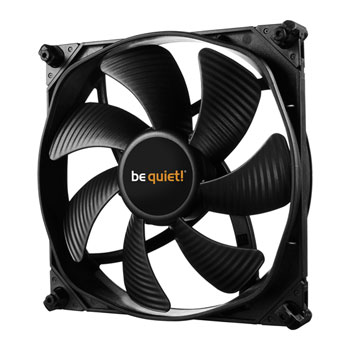

be quiet 140mm Silent Wings 3 Quiet PWM PC Case Fan

140mm be quiet! Silent Wings 3, 7 Blade, PWM, Inaudible Airflow Fan, 1000rpm, 59.5CFM, 15.5dB, Fluid Dynamic, 4-pin

Thumbnail 1 : be quiet 140mm Silent Wings 3 Quiet PWM PC Case Fan Thumbnail 2 : be quiet 140mm Silent Wings 3 Quiet PWM PC Case Fan Thumbnail 3 : be quiet 140mm Silent Wings 3 Quiet PWM PC Case Fan Thumbnail 4 : be quiet 140mm Silent Wings 3 Quiet PWM PC Case Fan be quiet 140mm Silent Wings 3 Quiet PWM PC Case Fan : video thumbnail 1
Scan code: LN75464 Manufacturer code: BL067
£20.48
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 16th Oct 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview No Compromise Silence and Performance
be quiet! SilentWings® fans stand for state-of-the-art technology, virtually inaudible operation and superior cooling. The third generation of this award-winning fan series offers unrivaled and uncompromising performance with a broad range of meticulous optimizations. They feature a smooth-running 6-pole motor, an advanced fluid-dynamic bearing, a unique airflow-optimized fan blade design and a fan frame with funnel-shaped air inlets.

Virtually Inaudible, High-End Operation
The SilentWings® 3 140mm PWM model combines all of the above best-in-class features. It strikes the perfect balance between cooling and silence with a maximum of 15.5dB(A) and meets all the requirements to be a perfect choice for heat sinks, PC cases and radiators. Features • Virtually inaudible operation at max. 15.5dB(A).
• 6-pole fan motor with three phases giving very low power consumption and less vibration.
• Advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours.
• Seven fan blades with optimized surface structures ensure excellent airflow.
• The rubberized fan frame is equipped with funnel-shaped air inlets producing extremely high air pressure.

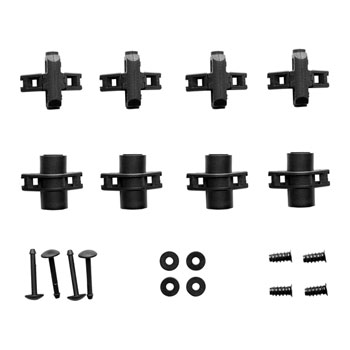

• Removable anti-vibration mountings minimize the transmission of vibrations to the PC case and its components.
• Advanced high quality IC motor controller reduces electrical noise.
• Product Conception, Design and Quality Control in Germany.

Advanced PWM function
• Pulse width modulation (PWM) allows compatible 4-pin controllers (including those built into many motherboards) to intelligently vary the speed of the fan.
• With PWM your system can ramp up the cooling when it’s needed, or operate in maximum quiet mode when it’s not.
Specifications
Pack Information
Edition Silent Wings 3 PWM
Pack Type
Includes
Individual Fan Specifications
Fan Diameter 140mm
Fan Depth 25 mm
Fan Speed 1000 rpm
Fan Blades 7
PWM Yes
Fan Specialization Inaudible Airflow
Airflow 59.5 CFM
Air Pressure 1.08 mm H2O
Sound Level (dB) 15.5 dB
Sound Level (Sone)
Motor Type 6-pole Motor
Bearing Type Fluid Dynamic Bearing
Manual Speed Controller No
Material Plastic / Rubber
Fan Colour Black
LED No
LED Colour N/A
MTBF 300,000 Hours
Fan Fixing
  • Push-pin Fixing
  • Screw Fixing
Cable length 500 mm
Connectors 1 x 4-pin
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
Loading Please Wait

Please wait . . .

Reviews
140mm be quiet! Silent Wings 3, 7 Blade, PWM, Inaudible Airflow Fan, 1000rpm, 59.5CFM, 15.5dB, Fluid Dynamic, 4-pin is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Great fans that move alot of air quietly At full pelt these fans are not silent, but they are very quiet. I used to have AF140 fans and at full speed those made a lot of noise. However these turned up to max seemingly move just as much air but with a lot less noise. I'm a big fan of the push pin mounting mechanism as it decouples the fan from the chassis
