Matrox P69-MDDP128F P690 PCI, 2 x DVI-I, Passive Cooling

Facebook Twitter Google Pinterest LinkedIn

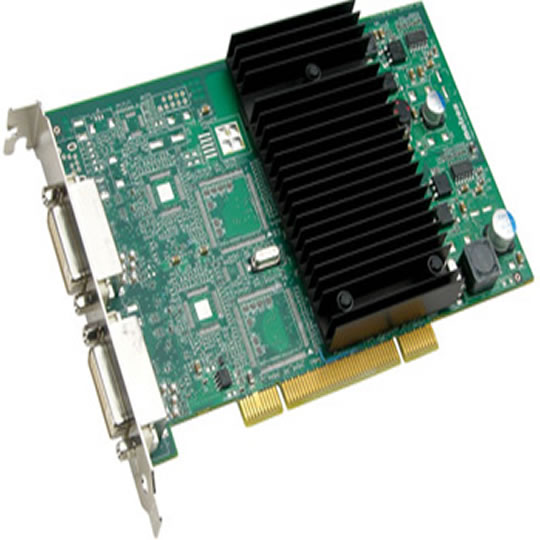

128MB Matrox P69-MDDP128F P690 PCI DualHead 2 x DVI-I, Passive Cooling

Scan code: LN20553 Manufacturer code: P69-MDDP128F Request call

End Of Life

Mid Range

Product Overview Reliable, ultra-low power graphics solution with wide enterprise flexibility

The Matrox Millennium P690 PCI offers 128MB of graphics memory and full DualHead® support for using two digital or analog monitors at high resolution and pristine image quality. With ultra-low power consumption, fanless cooling and unified display drivers for easy deployment across multiple systems, the P690 PCI is suitable for a wide range of professional applications. This graphics card builds upon the reliability, stability, and features of the proven Millennium P-Series product line, making it an ideal choice for use in long-life environments. Features • Matrox DualHead® technology with support for two digital or analog monitors at a time
• Independent resolutions and stretched desktop both supported
• PCI card compatible with all PCI and PCI-X slots
• Passive cooling (heat sink with no fan) for silent operation and extra reliability
• Ultra low power consumption: 10.7 watts
• Unified driver package also compatible with other products in P-Series, G-Series, QID Series, MMS Series, Parhelia Series, and Extio Series
• Display drivers for Windows XP and XP x64, Windows 2000, Windows Vista (XDDM) and Vista x64 (XDDM), Windows Server 2003 and Server 2003 x64
• Easy-to-use Matrox PowerDesk desktop management software
• Support for customizable unattended installation of drivers for multi-system set-up
• Compatible with Matrox PowerSpace for augmented multi-display desktop functionality including multiple workspace configuration support, program autostart, desktop recall, RDP recognition support, and multi-system workspace import/export
• Joined graphics card mode enables an additional Matrox DualHead or TripleHead graphics card to work in tandem in one system to drive up to four displays using advanced multi-card features
• Widescreen resolution support and additional functionality via Matrox PowerRes
• Display pivoting (rotation) support
• Global sales and technical support
• RoHS and WEEE compliant
