Scan code: LN123382 Manufacturer code: CL-F117-PL12WT-A

Thermaltake TOUGHFAN 12 Static Pressure120mm Radiator Fan

120mm Thermaltake TOUGHFAN 12, 9 Blade, Static Pressure, 500-2000rpm, 58.35CFM, Hydraulic Bearing, White, 4-Pin

Thumbnail 1 : Thermaltake TOUGHFAN 12 Static Pressure120mm Radiator Fan Thumbnail 2 : Thermaltake TOUGHFAN 12 Static Pressure120mm Radiator Fan
Scan code: LN123382 Manufacturer code: CL-F117-PL12WT-A
Order now and get it tomorrow, Thu 26th May
Get it Tomorrow, 26 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 26th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

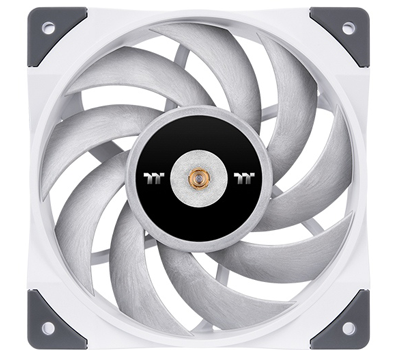

120mm Toughfan 12 White Performance PWM Fan from Thermaltake

Thermaltake ToughFan12 White

Exquisite Cooling Performance Meet the Thermaltake ToughFan 12, returning with a fresh-white colourway this PWM-controlled high static pressure fan features an optimised structure to maximise high-end cooling needs. Easily cool your dream PC and utilise the maximum speed of up to 2000RPM for unbeatable cooling performance. Producing a consistent airflow and low audio ensures that your cooling remains on top-form without being overly distracting. it's huge 9 blade design is built from a liquid crystal polymer further minimising vibration and ensuring superb product longevity even when operating at full speed.

Performance Doesn't Have To Be Noisy

Powerful and NoiselessTOUGHFAN 12 White high static pressure fan can perform at a maximum operating speed of up to 2000 RPM, producing a consistent airflow of 58.35 CFM with 2.41 mm-H2O static pressure, and maintaining a low audio noise level of 22.3 dB-A.

4K Recording

Superb Blade DesignFeaturing high tensile strength and low thermal expansion coefficient materials, the fan blade is built with special liquid crystal polymer (LCP), a compound which minimizes vibration when the fan is operating at full speed.

Built To Last

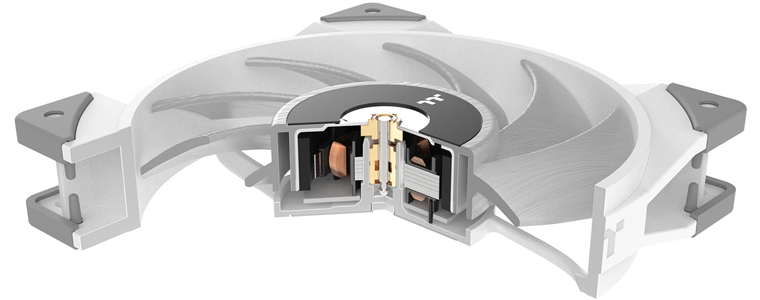

Metal-Reinforced Motor HubThe Toughfan 12 center is constructed with a full steel motor hub providing enhanced stability and durability.

4K Recording

Full Steel Motor Hub

Second Gen Hydraulic Bearing

2nd Generation Hydraulic Bearing The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan.

Anti-Vibration Mounting System


Powerful Performance, Quiet OperationThe in-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.

Pack Information
Edition TOUGHFAN 12 Radiator
Pack Type Single (1) Fan Expansion Pack
Includes 1 x 120mm Fan/s
Individual Fan Specifications
Fan Diameter 120mm
Fan Depth 25 mm
Fan Speed 500-2000 rpm
Fan Blades 9
Fan Specialization Static Pressure
Airflow 58.35 CFM
Air Pressure 2.41 mm H²O
Sound Level (dBA) 22.3 dBA
Sound Level (Sone)
Motor Type
Bearing Type Hydraulic Bearing
Manual Speed Controller No
Fan Colour White
LED Colour
MTBF 40,000 Hours
Fan Fixing Screw Fixing
Cable length
Connectors 1 x 4-pin
Additional Information
Scan Code LN123382
Model Number CL-F117-PL12WT-A
GTIN 4713227530408

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
