Thermaltake 3 Pack 120mm Riing Premium Edition RGB Fan and Fan Controller

120mm ThermalTake 3 Pack Riing RGB Radiator Fan w/ Controller, 11 Blade, PWM, 500-1400rpm, 48.79CFM, Hydraulic Bearing

ThermalTake
Scan code: LN73742 Manufacturer code: CL-F049-PL12SW-A Request call
£69.98Item overdue since 02 December 2016
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview Thermaltake Riing RGB Software

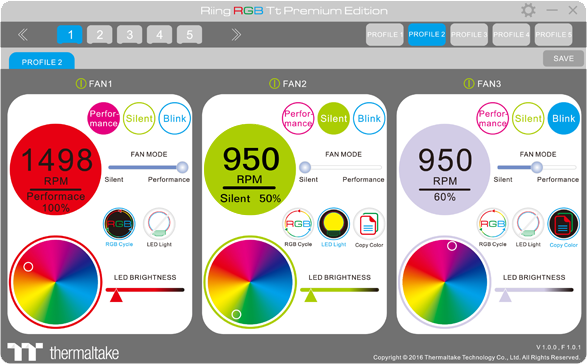

In the Riing RGB Software, users can set up a maximum of five profiles. Each profile includes three Riing RGB fans. Through the software, users can change the fan speed to either “Performance” operation or “Silent” operation. By dragging the “FAN MODE” bar, users can even adjust the fan duty cycle from 50% to 100%. In addition, with the Riing RGB Software, users can easily select a color for their Riing RGB fans by clicking the “Color Palette” or “RGB Cycle” icon. The Color Palette enables users to freely pick a color for the fans. Alternatively, users can choose RGB Cycle to switch to a 256 multicolored mode. Users can even disable the lighting by simply clicking the “LED Light” icon. Moreover, the Riing RGB Software is designed with a “LED Brightness” bar, allowing users to freely adjust the lighting effect for their Riing RGB fans. By clicking the “SAVE” icon, all preference settings, including the fan speed and the LED Lighting effect, will be stored to the software. The Real-time Fan Warning Alert is another innovative function of the Riing RGB Software. Once the fan stops operating, the control panel of the failed fan will appear grey.


Eleven Fan Blade Design
Eleven fan blades are engineered to generate large volumes of air to cool the system and create a perfect balance between silent and performance. In addition, the Riing 12 LED RGB fan is designed with a PWM function which allows the motherboard to run the fan precisely at its necessary speed. And this guarantees the required cooling performance as well as minimizes the noise level.

Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality, friction-reducing substance, which lowers operation noise and improves efficiency. The seal cap prevents lubricant leakage and improves the lifespan of the unit.

Wind Blocker Frame
To achieve maximum cooling performance in all applications, the wind blocker frame is designed to direct airflow towards the middle section of the blade, thereby creating a compression effect and blocking any air from escaping. This special design reduces the blade’s noise and vibration, creating a perfect balance between power and sound.

Anti-Vibration Mounting System
In-mold injection anti-vibration rubber pads provide a hassle-free usage with 80% protection coverage for all corners.

Digital Fan Hub
The self-contained digital fan hub allows users to connect up to 48 Riing RGB fans. Additionally, on the back of the fan hub, there is a DIP switch for users to conveniently set a number for each hub. Features • Comes with Digital Fan Hub.
• Digitally controlled with Riing RGB software.
• Patented 256 colors RGB radiator fan.
• Numerous PWM fan speed modes.
• Support up to 48pcs fans (16 controllers).
• Real-time fan warning alert.
• Long life hydraulic bearing for reliable and silent operation.
Specifications
Specifications
Edition Riing RGB Radiator Fan
Fan Diameter 120mm
Fan Depth 25 mm
Fan Speed 500 - 1400 rpm
Fan Blades 11
PWM Yes
Fan Specialization
Airflow 48.79 CFM
Air Pressure 1.113 mm H2O
Sound Level 28.8 dB
Motor Type
Bearing Type Hydraulic Bearing
Manual Speed Controller Yes
Material Plastic
Fan Colour Black
LED Yes
LED Colour RGB
MTBF 40000 Hours
Fan Fixing
Cable length
Connectors 1 x 4-pin
