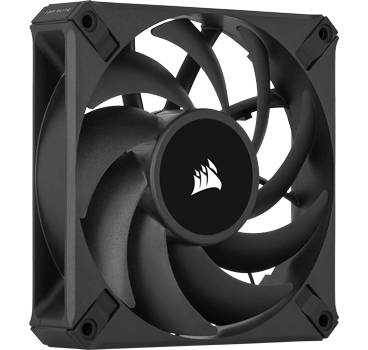

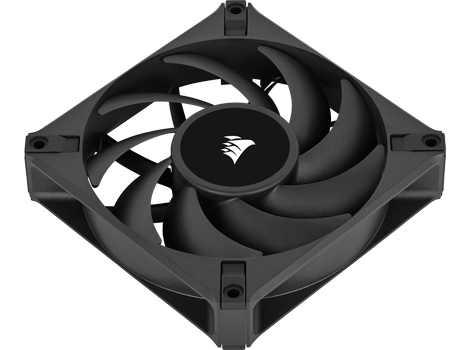

Corsair AF120 ELITE Black Performance Single 120mm PWM Fan

120mm Corsair AF120 ELITE Black, 9 Blade, PWM, Fluid Dynamic Bearing, AirGuide, Single Fan Standalone Pack, 4-Pin

MORE INFO

Thumbnail 1 : Corsair AF120 ELITE Black Performance Single 120mm PWM Fan

Thumbnail 2 : Corsair AF120 ELITE Black Performance Single 120mm PWM Fan

Thumbnail 3 : Corsair AF120 ELITE Black Performance Single 120mm PWM Fan

Thumbnail 4 : Corsair AF120 ELITE Black Performance Single 120mm PWM Fan

Corsair AF120 ELITE Black Performance Single 120mm PWM Fan : image 1

zoom

Corsair AF120 ELITE Black Performance Single 120mm PWM Fan : image 2

zoom

Corsair AF120 ELITE Black Performance Single 120mm PWM Fan : image 3

zoom

Corsair AF120 ELITE Black Performance Single 120mm PWM Fan : image 4

zoom

Scan code: LN125875 Manufacturer code: CO-9050140-WW

Share Facebook Twitter Google Reddit Pinterest LinkedIn

Order in the next 2 hrs 41 mins and get it tomorrow

£19.99

Add To Basket

Get it Tomorrow, 18 MayIn stock

spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.

Delivery Options

By DPD On 18th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Collect instore Collect from our Bolton store, BL6 6PE | Free

Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store | £4.79

Collect your parcel from your newsagents, petrol stations and convenience stores

Services

SCANPROTECT Protect against installation damage for 28 days. More info

ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Share Facebook Twitter Google Reddit Pinterest LinkedIn WhatsApp

CORSAIR AF120 ELITE High-Performance 120mm PWM Fluid Dynamic Bearing Fan

Essential Airflow for Peak Performance The CORSAIR AF120 ELITE High-Performance 120mm PWM Fluid Dynamic Bearing Fan delivers PWM-controlled fan speeds from 400 RPM up to 1,850 RPM for powerful cooling, near-silent operation, and exceptional durability. With a low-noise design, the AF120 ELITE spins as quietly as 31.5 dBa, while CORSAIR AirGuide technology with anti-vortex vanes channels airflow to concentrate your cooling. The AF120 ELITE’s fluid dynamic bearing ensures exceptional durability and reliable cooling performance while pushing up to 59.1 CFM of air with 1.93mm-H2O of static pressure even at full speed. Support for 0 RPM PWM signals enables the fan to stop completely, eliminating noise entirely.

An Incredible Feature-Set

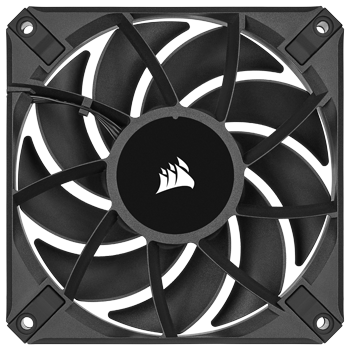

CORSAIR AIRGUIDE TECHNOLOGYUtilises anti-vortex vanes to channel concentrated airflow and improve cooling, whether used as intake, exhaust, or mounted to a liquid cooling radiator or heatsink.

Fluid Dynamic BearingLubricant between the shaft and bearing greatly reduces friction, ensuring exceptional durability and minimal noise.

POWERFUL PerformancePowerful PWM-controlled fan speeds from 400 RPM up to 1,850 RPM, pushing up to 59.1 CFM of air with 1.93mm-H2O of static pressure.

Silence When RequiredStops the fan entirely when sent a 0 RPM PWM signal, completely eliminating fan noise.

Whisper Quiet Operation

Maximum Performance, Minimal NoiseA low-noise 120mm fan blade spins as quietly as 31.5 dBa.

Universal SizingExperience a perfect Fit in case fan mounts, radiators, heatsinks, and more.

Specifications

Pack Information
Edition	AF120 ELITE
Pack Type	Single (1) Fan Standalone Pack
Includes	1 x 120mm Fan/s

Individual Fan Specifications
Fan Diameter	120mm
Fan Depth	25 mm
Fan Speed	400 ~ 1850 +/- 10% rpm
Fan Blades	9
PWM	Yes
Fan Specialization
Airflow	10.9 ~ 59.1 CFM
Air Pressure	0.09 ~ 1.93 mm H²O
Sound Level (dBA)	31.5 dBA
Sound Level (Sone)
Motor Type
Bearing Type	Fluid Dynamic Bearing
Manual Speed Controller	No
Material
Fan Colour	Black
LED	No
LED Colour
MTBF
Fan Fixing	Screw Fixing
Cable length	600 mm
Connectors	1 x 4-pin

Additional Information
Scan Code	LN125875
Model Number	CO-9050140-WW
GTIN	840006650799
