EVGA 1200 P2 80PLUS PLATINUM

EVGA 1200 P2

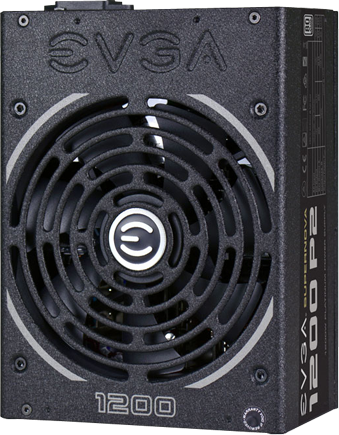

1200P2 - Platinum Performance

Introducing the EVGA SuperNOVA 1200 P2 power supply. This power supply raises the bar with 1200W of continuous power delivery and 92% efficiency. A fully modular design reduces case clutter and 100% Japanese Capacitors ensures that only the absolute best components are used. What does that mean? The best stability, reliability, overclockability and unparalleled control. The EVGA SuperNOVA 1200 P2 is the ultimate tool to eliminate all system bottlenecks and achieve unrivaled performance.

1200P2 POWER CHART

AC Input
DC Output
Max Output
Combined
Output

Large 99.9 amp single + 12V Rail

100 - 240 VAC / 15A / 50 - 60Hz
+3.3V +5V +12V +5Vsb -12V
20A 20A 99.9A 2.5A 0.5A
100W 1198.8W 12.5W 6W
1200W @ +50C

Industrial grade testing all load and regulation testing done at 50C

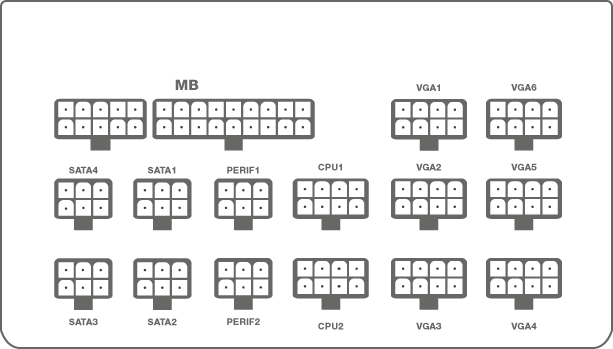

CONNECTIVITY

Standard ATX Form Factor
Will fit most mATX / ATX / EATX / HPTX & XLATX cases

Fully Modular Cabling
Fully Modular to reduce clutter and improve airflow

FAN NOISE CHART

SuperNOVA 1200 P2

(Eco ON)

HARDWARE PROTECTION

While being silent, this entire series has a large single 12volt rail, providing plenty of power to fuel all of your hardware. And lastly, because power without safety is pointless, a full suite of top tier circuit protections have been added to keep you running strong and more importantly keeping your hardware safe.

OVP

(Over Voltage Protection)

OPP

(Over Power Protection)

UVP

(Under Voltage Protection)

SCP

(Short Circuit Protection)

OCP

(Over Current Protection)

OTP

(Over Temperature Protection)

FEATURES

Single +12V Rail

A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.

LLC Resonant Circuit Layout

Full DC to DC, LCC resonant circuit design improves efficiency.

Double Ball Bearing Fan

A high-quality dual ball bearing fan gives the SuperNOVA 1200 P2 an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.

Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors

Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.

NVIDIA SLI Ready

Run multiple NVIDIA graphics cards for the ultimate gaming experience. The SuperNOVA 1200 P2 gives you the power you need to drive these demanding systems and achieve the best overclocks.

Fully Modular

Fully modular designs allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximise case airflow.

80PLUS PLATINUM Efficiency

80 Plus certification ensures your power supply isn’t wasting power and turning it into exess heat. Under typical load this power supply is 92% efficient or higher.

Specifications
Size ATX
Edition SuperNOVA P2
Wattage 1200 W
80 PLUS Certification 80 PLUS Platinum
Max. Efficiency (at 230Vac) 94 %
Cooling Fan
Fans 1 x 140mm
Internal +12V Rails Single Rail
Rail 1 +12V 99.9 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 99.9 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 2 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Power
  • 5 x 4-pin Molex
  • 6 x 6+2-pin PCIe
  • 2 x 6-pin PCIe
  • 12 x SATA
Dimensions 150 x 85 x 200 mm (WxHxD)
Package Type Retail
Additional Information
Scan Code LN58020
Model Number 220-P2-1200-X3
GTIN 4250812405098
