Scan code: LN80755 Manufacturer code: GSM7212F-100NES

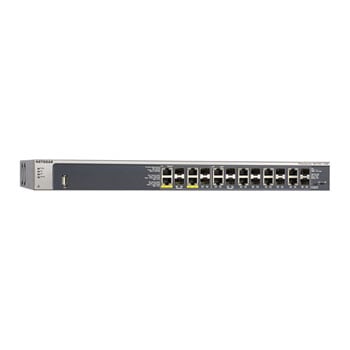

netgear GSM7212F-100NES POE Fibre Managed network switch

12 port NETGEAR ProSAFE M4100-12GF Fibre SFP Managed Switch with Routing and PoE+

Scan code: LN80755 Manufacturer code: GSM7212F-100NES
Order now and get it tomorrow, Fri 3rd Jul
With a 10% deposit from just £14.98 / month (APR 15.9%)
Delivery Options
  • By DPD On 3rd Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The NETGEAR Intelligent Edge M4100 series consists of 9 fully managed switches, ranging from 12-port to 50-port Fast and Gigabit Ethernet. They are ideal for all organizations considering reliable, affordable and simple access layer switching with CLI, advanced scripting capabilities and Layer 3 routing. As a cost-effective component of converged voice, video and data networking solutions, NETGEAR M4100 series delivers a secure edge in commercial buildings and campus LAN environments: PoE (802.3af) and PoE+ (802.3at) versions of M4100 series are perfect for Wireless access points, IP telephony and IP surveillance deployments.

Layer 2+ with Static Routing
• M4100 series comes with Port-based / VLAN-based / Subnet-based "static routing" Layer 2+ versions.
• L3 fixed routes to the next hop towards the destination network are added to the routing table.
• L3 routing is wire-speed in M4100 series hardware with 64 static routes (IPv4).

Engineered for Convergence
• Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol.
• Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration.
• Advanced classifier-based hardware for L2, L3, L4 security and prioritization.
• Advanced Multicast filtering with IGMP and MLD snooping and querier modes.

High-Value Performance and IPv6 Ready
• 16K MAC addresses; up to 100Gbps switching fabric; 9K jumbo frames; Green Ethernet.
• IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ).

High Availability and PoE/PoE+ Full Power Capability
• Redundant power supply option for uninterruptible operation (RPS).
• External power supply option for PoE and PoE+ full power applications (EPS up to 1,440W).

Industry Standard Management
• Industry standard command line interface (CLI).
• Fully functional NETGEAR web interface (GUI).

Industry Leading Warranty
• NETGEAR M4100 series is backed by NETGEAR ProSAFE® Lifetime Hardware Warranty.
• Also included ProSUPPORT™ Lifetime 24x7 Advanced Technical Support.
• Also included Lifetime Next Business Day Hardware Replacement. Features • High availability and PoE/PoE+ full power capability.
• Industry standard management.
• Industry leading warranty.
• Layer 2+ with static routing.
• Engineered for convergence.
• High-value performance and IPv6 ready.
Edition ProSafe
Form Factor Rackmount
Total Network Ports 12 x RJ45 10/100/1000 (Shared with Gigabit SFP)
PoE Support Type PoE
No. of Ports Providing PoE 4 x 10/100/1000 (Gigabit) RJ-45
Other Non-Network Ports
Switching Capacity
Non-Blocking Throughput
Forwarding Rate 24
MAC Address Table Size 16k Entries
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.1ab
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1v
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Acoustic Noise 30 dB
Max. Power Consumption 150 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF) 670956 hours
Power Supply
Dimensions (WxHxD) 440 x 43.2 x 257 mm
Weight 3.6 kg
Additional Information
Scan Code LN80755
Model Number GSM7212F-100NES
GTIN 606449080926

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

60 months
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
0134 445 8200
