HK Audio Linear 3 Active 12" Cab Speaker

HK Audio

TOP PERFORMANCE TO TRUSTThis active 12”/1” fullrange mid/high unit delivers 1,200 watts of class D power, and functions either as a standalone speaker or in combination with subwoofers from the Linear Sub series. Four different EQ presets – Bass Boost, Flat (LF), Flat (HMF) and Contour – allow the LINEAR 3 112 FA to deliver outstanding performance and easy handling in any situation.
Wherever the gig, whatever the venue and whoever the audio tech, this speaker delivers stellar sound in every situation for every occasion. The powered LINEAR 3 speaker system and its advanced DSP technology have got your back. Filter presets, intelligent multiband limiting, FIR separation—these are precisely the tools you need to dial in the sweet spot for your sound. With plenty of headroom and perfectly matched components, the robust LINEAR 3 line offers high-end speakers engineered to take your performance higher.

Standout Features

HK Audio

• Packs the muscular bi-amped punch of a 1,200 W class D power amp
• Beautifully balanced, high-definition audio
• 135 dB SPL—that”s plenty of sound pressure for audiences of up to 500 (With suitable L SUB 1500 A or L SUB 1800 A subwoofers)
• No need for sophisticated audio skills: advanced DSP technology serves up top-notch sound every time
• Intelligent Multiband Limiter ensures tonal integrity at every volume level
• FIR crossover filtering for transparent midrange
• Plenty of sound-shaping options with four EQ presets—Bass Boost, Flat (LF), Flat (MHF) and Contour
• Very low total harmonic distortion, so no listening fatigue
• System”s sound is easy to control and shape, even from the stage
• On-target, directional PA aiming to reduce reflections off walls and ceilings

The Tech Spec

Features Specification
Max SPL peak 135 dB half space (@ 10% THD)
Frequency response +/- 3dB 65 Hz – 18 kHz
Frequency response -10dB 58 Hz – 18 kHz
Power Rating 1200W
Amplifier Class D - bi-amped
Low/Mid Speaker 1x 12"
HF Driver 1"
Horn characteristics 90° x 55° CD horn
Cut-off Frequency active 2.3 kHz FIR X-Over with 72 dB/oct

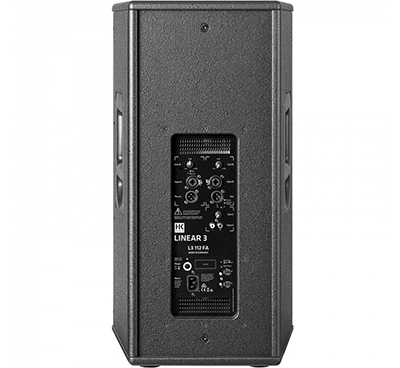

Connections 2x XLR Combo In bal
1x Stereo RCA In
2 x XLR Thru bal
1x XLR Mix Out
Input Sensitivity +4 dBu @ Gain center-notched
Sensitivity switch Line/Mic Input A
Equalizer 2 EQ switches: Bass Boost/Flat & Flat/Contour
Pole mount HK Audio DuoTilt 3/7
Rigging points 4x M8
Handles 2x HK Audio MultiGrip
Enclosure 16 mm MDF
Weight 21.5 kg
Dimensions(W x H x D) 360 x 660 x 367
Specifications
Total Channels
Max Mic Inputs
Computer Interface
Mixer Type
Computer Interface Channels
Total Aux Channels
Subgroups
Max Line Inputs
Insert Points No
Direct Channel Outputs
Internal FX No
Flying Faders No
Additional Information
Scan Code LN103656
Model Number L3112FA
