Scan code: LN69316 Manufacturer code: 220-T2-1000-X3

EVGA SuperNOVA T2 1000 Watt Titanium Modular PSU/Power Supply

1000W EVGA SuperNOVA 1000 T2, Full Modular, 80PLUS Titanium, SLI/CrossFire, Single Rail, 83.3A, 140mm Fan, ATX PSU

Thumbnail 1 : EVGA SuperNOVA T2 1000 Watt Titanium Modular PSU/Power Supply Thumbnail 2 : EVGA SuperNOVA T2 1000 Watt Titanium Modular PSU/Power Supply Thumbnail 3 : EVGA SuperNOVA T2 1000 Watt Titanium Modular PSU/Power Supply Thumbnail 4 : EVGA SuperNOVA T2 1000 Watt Titanium Modular PSU/Power Supply EVGA SuperNOVA T2 1000 Watt Titanium Modular PSU/Power Supply : video thumbnail 1
Scan code: LN69316 Manufacturer code: 220-T2-1000-X3
FREE EVGA +2 Years Warranty Upgrade
Was: £269.99
£239.99
From £11.52 / month (APR 14.9%)
Monthly Payment: £41.65
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £239.99
Total inc. interest: £249.85
Monthly Payment: £21.55
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £239.99
Total inc. interest: £258.53
Monthly Payment: £14.86
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £239.99
Total inc. interest: £267.39
Monthly Payment: £11.52
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £239.99
Total inc. interest: £276.46
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £5.99 / month (APR 15.9%)
Delivery Options
  • By DPD On 15th Nov 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

EVGA 1000 T2 80PLUS TITANIUM

EVGA 1000 T2

850T2 - Nothing Beats Titanium

EVGA SuperNOVA T2 power supplies offer unmatched efficiency and performance with the Titanium series, second only to higher classes of themselves (i.e. EVGAs 850 T2 or the 1600 T2). The 1000 T2 Titanium is capable of powering high-end systems with ease. It measures at 85mm (H) x 150mm (W) x 180mm (L) meaning it will fit into most cases, though it may be a tight fit in the smaller selection. The fan size is relatively large at 140mm, with a double ball-bearing set-up. Uisng a +12V single rail and an ECO Mode switch means the Titanium 1000W has a rating of 83.3 amps and a 94%+ in efficiency!

1000T2 POWER CHART

AC Input
DC Output
Max Output
Combined
Output

Large 83.3 amp single + 12V Rail

100 - 240 VAC / 15A / 50 - 60Hz
+3.3V +5V +12V +5Vsb -12V
20A 20A 83.3A 2.5A 0.5A
100W 999.6W 12.5W 6W
1000W @ +50C

Industrial grade testing all load and regulation testing done at 50C

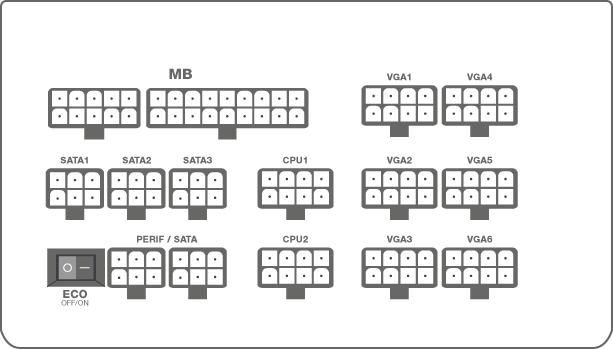

CONNECTIVITY

Standard ATX Form Factor
Will fit most mATX / ATX / EATX / HPTX & XLATX cases

Eco Mode
Fan does not switch on until PSU load is above 45°

Fully Modular Cabling
Fully Modular to reduce clutter and improve airflow

FAN NOISE CHART

SuperNOVA 1000 T2

(Eco ON)

HARDWARE PROTECTION

While being silent, this entire series has a large single 12volt rail, providing plenty of power to fuel all of your hardware. And lastly, because power without safety is pointless, a full suite of top tier circuit protections have been added to keep you running strong and more importantly keeping your hardware safe.

OVP

(Over Voltage Protection)

OPP

(Over Power Protection)

UVP

(Under Voltage Protection)

SCP

(Short Circuit Protection)

OCP

(Over Current Protection)

OTP

(Over Temperature Protection)

FEATURES

Single +12V Rail

A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.

LLC Resonant Circuit Layout

Full DC to DC, LCC resonant circuit design improves efficiency.

Double Ball Bearing Fan

A high-quality dual ball bearing fan gives the SuperNOVA 1000 T2 an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.

Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors

Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.

NVIDIA SLI Ready

Run multiple NVIDIA graphics cards for the ultimate gaming experience. The SuperNOVA 1000 T2 gives you the power you need to drive these demanding systems and achieve the best overclocks.

Fully Modular

Fully modular designs allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximise case airflow.

80PLUS TITANIUM Efficiency

80 Plus certification ensures your power supply isn’t wasting power and turning it into exess heat. Under typical load this power supply is 94% efficient or higher.

Specifications
Size ATX
Edition SuperNOVA 1000 T2
Wattage 1000 W
80 PLUS Certification 80 PLUS Titanium
Max. Efficiency 96 %
Cooling Fan
Fans 1 x 140mm
Internal +12V Rails Single Rail
Rail 1 +12V 83.3 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 83.3 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 2 x 4+4-pin CPU +12V (EPS)
  • 6 x 4-pin Molex
  • 6 x 6+2-pin PCIe
  • 2 x 6-pin PCIe
  • 1 x FDD Power
  • 12 x SATA
Dimensions 150 x 85 x 180 mm (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Direct
DOA Period:
280 days
RTB Period:
12 months
Manufacturer Contact Details
Telephone:
01788 247 298
