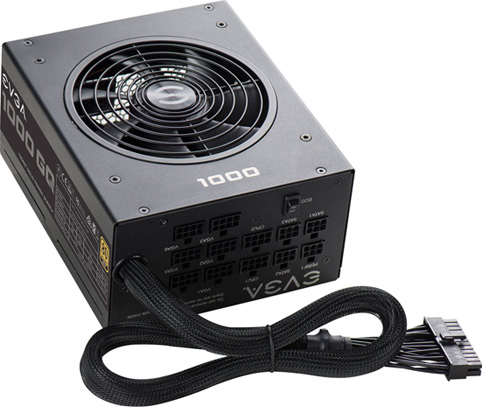

EVGA 1000 Watt GQ Gold Hybrid Modular ATX PSU/Power Supply

1000W EVGA GQ Series, 80 PLUS Gold, Hybrid Modular, SLI/CrossFire, Single Rail, 83.3A +12V, 1x135mm Fan, ATX PSU

EVGA
Scan code: LN68208 Manufacturer code: 210-GQ-1000-V3 Request call
£129.98
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £11.50 By DPD On 5th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More

EVGA 1000GQ 80PLUS GOLD

EVGA 1000 GQ

1000GQ - Great Quality, Great Value

Introducing the GQ series power supplies from EVGA. The 1000GQ takes some of the best features from EVGA's award winning power supplies, like EVGA ECO fan mode for near silent operation, Japanese Capacitor Design and a highly efficient design, at an excellent value. This power supply is 80PLUS GOLD rated and offer an outstanding 5 Year Warranty that’s backed by world class EVGA support.

1000GQ POWER CHART

AC Input
DC Output
Max Output
Combined
Output

Large 83.3 amp single + 12V Rail

100 - 240 VAC / 10A / 50 - 60Hz
+3.3V +5V +12V +5Vsb -12V
24A 24A 83.3A 3A 0.5A
120W 999.6W 15W 6W
1000W @ +50C

Industrial grade testing all load and regulation testing done at 50C

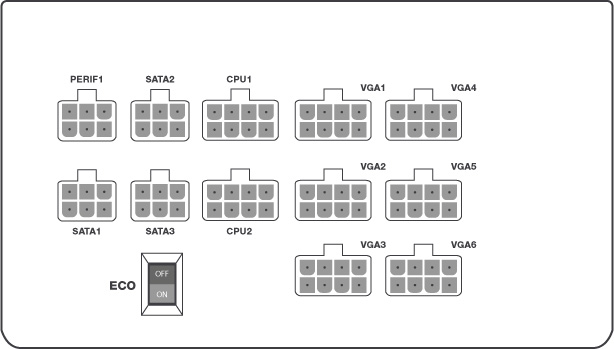

CONNECTIVITY

Modular Design
Semi-modular design allows you to only use the cables you need, helping to improve case airflow, eliminate unnecessary wires, and best of all, reduce cable clutter.

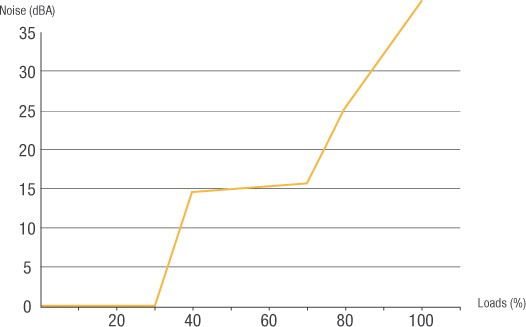

FAN NOISE CHART

SuperNOVA 1000 GQ

(Eco ON)

FEATURES

Single +12V Rail

A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.

80PLUS GOLD Efficiency

80 Plus certification ensures your power supply isn’t wasting power and turning it into exess heat. Under typical load this power supply is 90% efficient or higher.

LLC Resonant Circuit Layout

Full DC to DC, LCC resonant circuit design improves efficiency.

NVIDIA SLI Ready

Run multiple NVIDIA graphics cards for the ultimate gaming experience. The SuperNOVA 1000 GQ gives you the power you need to drive these demanding systems and achieve the best overclocks.

Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors

Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.

Modular

Modular design allows some cables to be removed from the power supply for ease of installation and removal. Tou can leave off unnecessary cables to reduce case clutter and maximize case airflow.

Specifications
Specifications
Size ATX
Edition GQ Series
Wattage 1000 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency 92 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 83.3 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 83.3 A
Modular Yes
Modularity Hybrid Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4 Pin
Connectors
  • 2 x 4+4pin CPU +12V
  • 3 x 4pin Molex
  • 10 x 6+2pin PCI-E Power
  • 2 x FDD Power
  • 12 x SATA Power
Dimensions 150 x 85 x 180 mm (WxHxD)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
60 months
