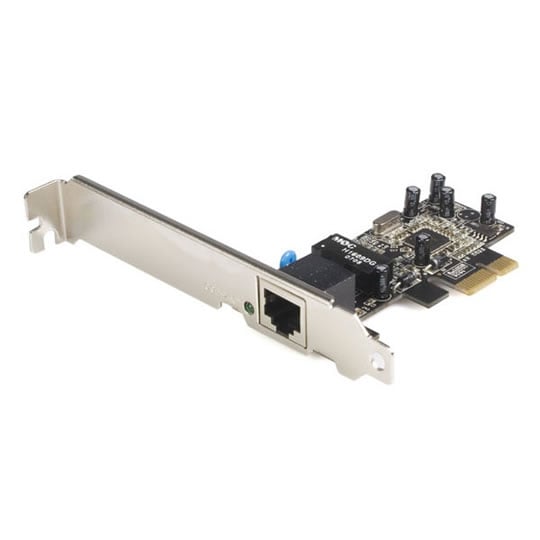

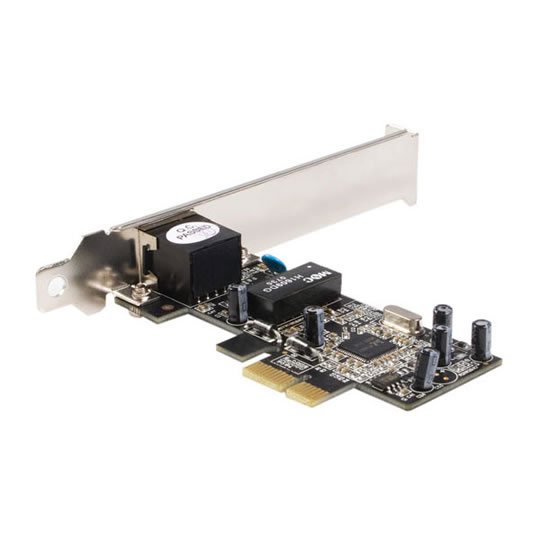

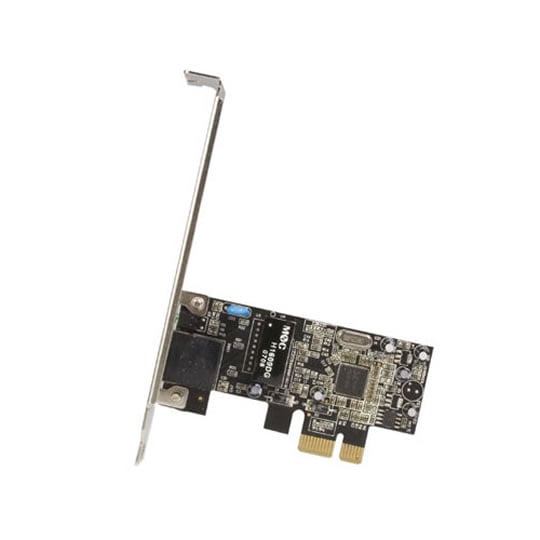

StarTech Network Card with Low Profile and Full Size Bracket from Startech

1 Port PCI Express 10/100 Ethernet Network Interface Adapter Card (Low Profile Bracket incl.)
Scan code: LN43153 Manufacturer code: PEX100S Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Free Delivery Delivery options Free By DPD On 27th Nov 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview This PCI Express based 10/100 Ethernet Card provides a simple way to connect a PCIe enabled server or workstation to a 10/100 Ethernet network and offers a broad range of features and functions, including support for both Full and Half Duplex operation as well as Wake On LAN (WOL) Power Management.

The PEX100S Ethernet Card includes both standard and low profile brackets and is compatible with most mATX (Slimline) and ATX system form factors, and features Auto MDI/MDIX automatic configuration, which helps to simplify installation and configuration.

Features • Single 10/100Mbps RJ45 Ethernet port
• Compliant with IEEE802.3 CSMA/CD, 802.3 10Base-T and 100Base-TX standards
• Crossover Detection & Auto-Correction (Auto-MDIX)
• Full and Half duplex mode support
• Link speed and duplex mode auto-negotiation
• Link/Activity and 10/100Mbps LED indicators
• Supports Wake-on-LAN
• Full/Low Profile installation brackets included

• Replacement Ethernet card for a home or office desktop computer
• Adding Ethernet network connectivity for broadband Internet access to an old desktop computer
• Adding a second or redundant network connection for a workstation or server

Connector Type(s)PCI Express x1 Male
External PortsRJ-45 Female
Bus TypePCI Express
Card TypeStandard Profile (LP bracket incl.)
Chipset IDRealtek - RTL8101E
InterfaceRJ45 (10/100 Ethernet)
LED IndicatorsLink Status
Package Contents
Included in Package10/100 PCI-Express Ethernet Card
Driver CD
Instruction Manual
Low Profile Bracket
Packaging Information
Shipping (Package) Weight0.1 kg [0.3 lb]
Compatible Networks10/100 Mbps
Maximum Data Transfer Rate100 Mbps
Physical Characteristics
Product Height21 mm [0.8 in]
Product Length92.5 mm [3.6 in]
Product Weight45 g [1.6 oz]
Product Width120 mm [4.7 in]
OS CompatibilityWindows® 8 / 8.1 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000

Windows Server® 2012, 2008 R2, 2003(32/64)

Linux 2.6.x and up (Tested up to 3.5)

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
1 days
RTB Period:
12 months
