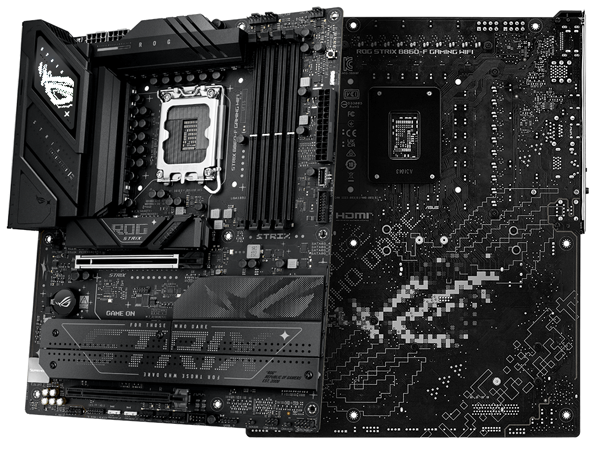

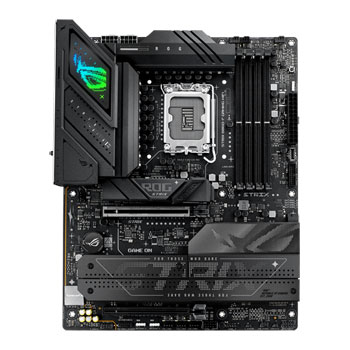

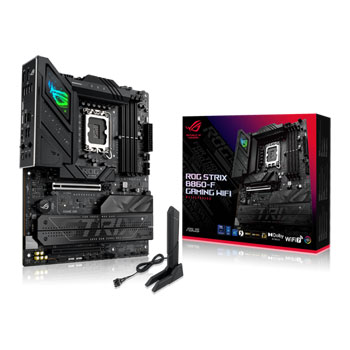

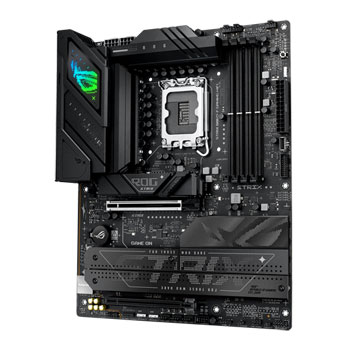

ASUS ROG STRIX B860-F GAMING WIFI ATX Motherboard
Images
ASUS ROG STRIX B860-F GAMING WIFI, Intel B860, LGA1851, DDR5, PCIe 5.0, 4x M.2, 2.5GbE/WiFi7, USB 4.0, ATX
Scan Code:LN154652
Manufacturer Code:90MB1JG0-M0EAY0
Customer Reviews and Q&A
ASUS ROG STRIX B860-F GAMING WIFI ATX Motherboard
For Those Who DareThe ASUS ROG STRIX B860-F GAMING WIFI is a high-performance motherboard designed for gamers and enthusiasts, featuring the Intel B860 chipset and supporting Intel Core Ultra Series 2 processors via the LGA 1851 socket. It includes four DDR5 memory slots, allowing up to 192 GB of RAM with overclocking capabilities up to 9066 MT/s. The board offers extensive storage options with multiple M.2 slots, supporting both PCIe 5.0 and 4.0, as well as SATA 6Gb/s ports. Networking is enhanced with Intel 2.5Gb Ethernet and Wi-Fi 7, providing fast and stable connections. The motherboard also provides various premium features, including quality audio components with high-grade capacitors, a range of USB ports - including Thunderbolt 4 and USB 20Gbps - advanced VRM cooling and ASUS-exclusive software, for customisation and optimisation.
Intel B860Motherboard Chipset
Socket LGA1851for Intel Core Ultra (Series 2)
4 x DDR5DIMM Slots DIMM Slots
ATXForm Factor
16+1+2+1 Power Solution
PCIe 5.0 Support
High-speed DDR5 Support
WiFi 7 Support
AI Networking II
Thunderbolt 4
DIY-Friendly Design
Extreme Power and Performance
Power Stages
Intel Core Ultra Series 2
1 x PCIe 5.0
1 x PCIe 4.0
1 x 2280 PCIe 5.0 x4
2 x 2280 PCIe 4.0 x4
1 x 22110 PCIe 4.0 x4
ASUS AI Intelligence

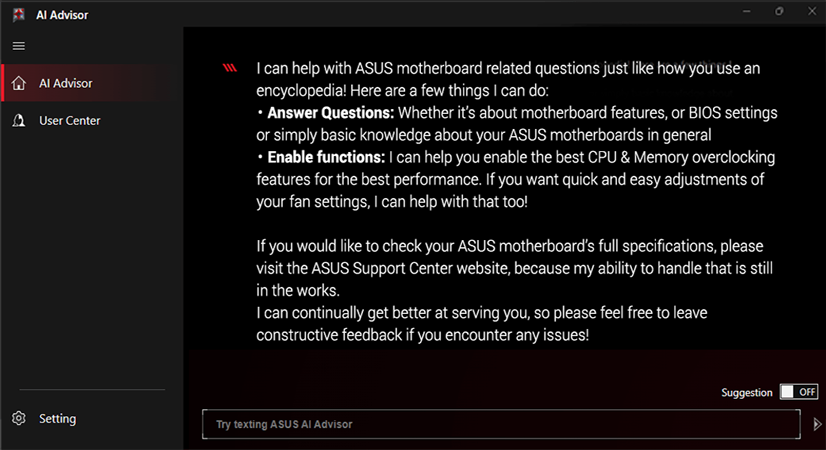

ASUS AI AdvisorASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimisation features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

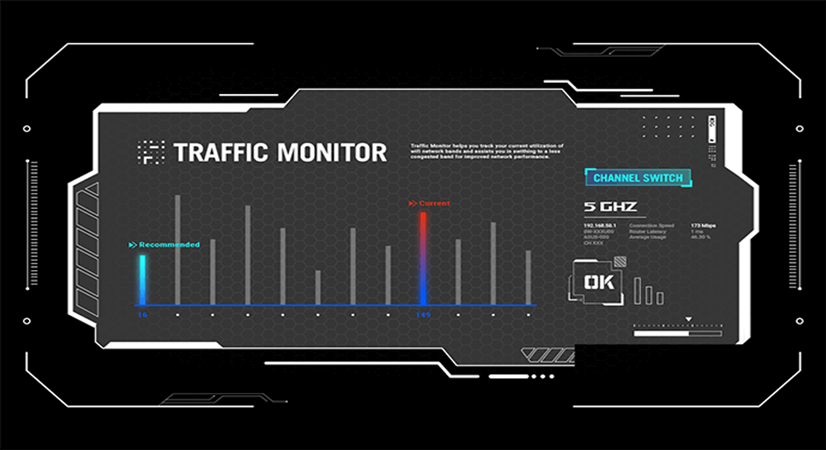

AI Networking IIArmoury Crate's Traffic Monitor tracks your curent Wi-Fi channel usage. Move to a less congested channel by clicking the "Channel Switch" button for improved network performance. Armoury Crate's Fast Check empowers users to rapidly detect Wi-Fi signal strength, whilst Direction Finder helps users detect the optimal antenna orientation to achieve the best Wi-Fi signal. GameFirst optimises networking performance by allocating bandwidth in real-time, based on algorithms that adapt to different usage scenarios.
Next-Level Overclocking
NPU BoostThe integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows, improving performance and increasing producitivty — but NPU Boost lets you do even more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

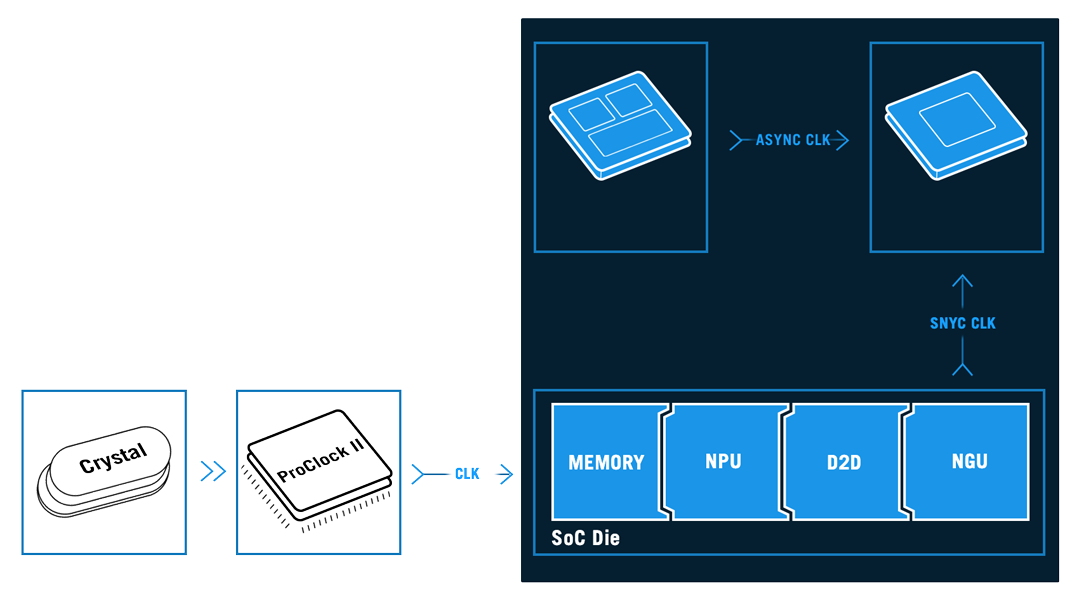

Asynchronous ClockFor next-level frequency flexibility, the ROG Strix B860-F features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains. Separate CPU BCLK from other domains for unfettered overclocking.

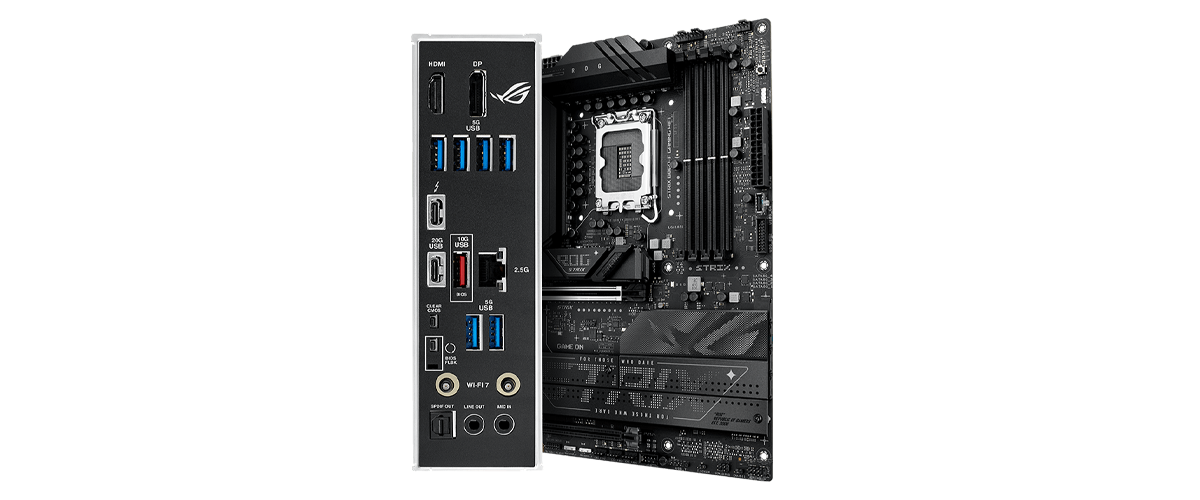

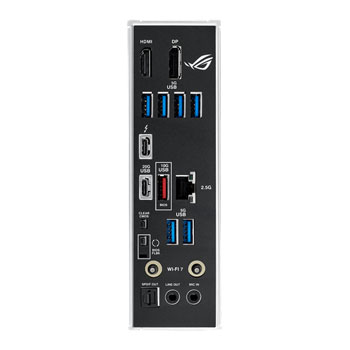

Fully-Fledged Connectivity
1 x DisplayPort
6 x USB 5Gbps ports
1 x Thunderbolt 4
1 x USB 20Gbps port
1 x USB 10Gbps port
1 x Intel 2.5Gb Ethernet
Clear CMOS Button
BIOS FlashBack Button
WiFi 7
Optical S/PDIF Out Port
2 x Audio Jacks
1 x USB 5Gbps Header

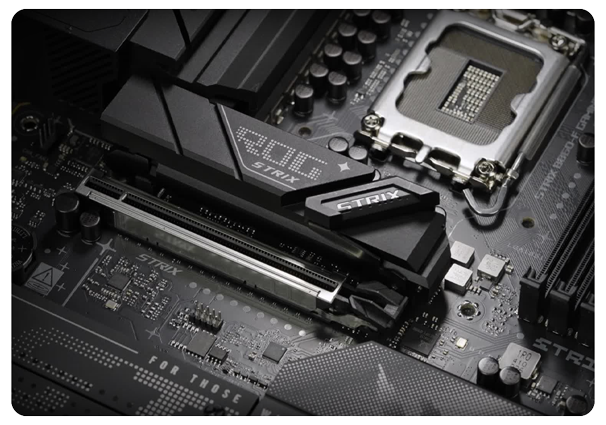

Connect without CompromiseThe Strix B860-F offers end-to-end PCIe 5.0 support, and the topmost x16 expansion slot is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. One onboard M.2 slot is rated for blistering read and write speeds up to 16 GB/s, while the remainder can still deliver impressive 8 GB/s transfers. Every M.2 slot is covered with substantial heatsinks to dissipate the heat of next-gen drives.
Additionally, Thunderbolt 4 connectivity delivers up to 40 Gbps of bi-directional bandwidth for the latest super-speed devices and drives. It can be employed for up to two external 4K displays, and PCIe bandwidth extends to up to 32 Gbps.
The revolutionary Wi-Fi 7 is faster than standard Wi-Fi 6, thanks to features such as 160 MHz channels on the 6GHz band and 4K QAM. Multi-Link Operation (MLO) provides a more stable Wi-Fi connection and lower latency, with dual transceivers supporting the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B860-F implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
DDR5 Domination

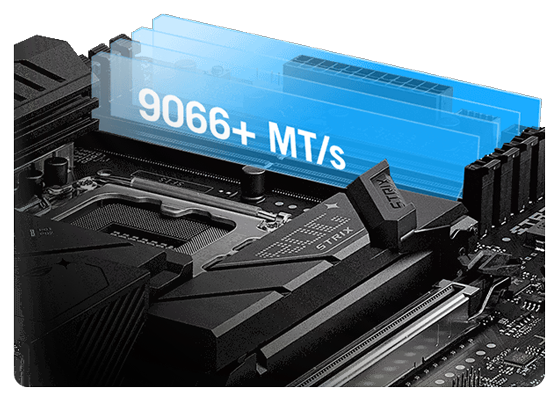

High-Speed DDR5ROG has a rich history of delivering top-tier memory performance, and DDR5 is no exception. Enhanced signal routing can push enthusiast-grade kits well beyond the 9 GT/s threshold on the Strix B860-F, with even greater speeds on the horizon. For experienced users, the UEFI offers a wide range of options to fine-tune and push performance to its limits.

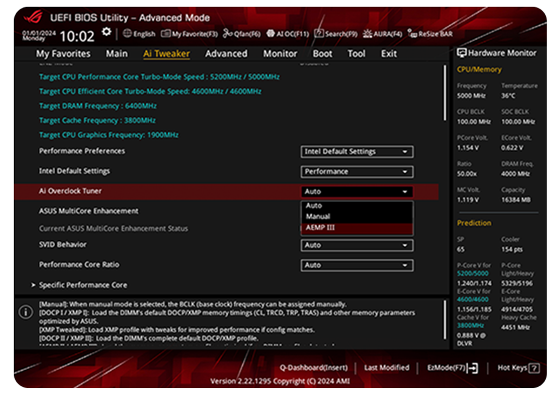

ASUS Enhanced Memory ProfileAEMP III is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimises the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.
Maximum Cooling Capabilities
M.2 HeatsinksHeatsinks cover every slot both above the main PCIe slot, and below, to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

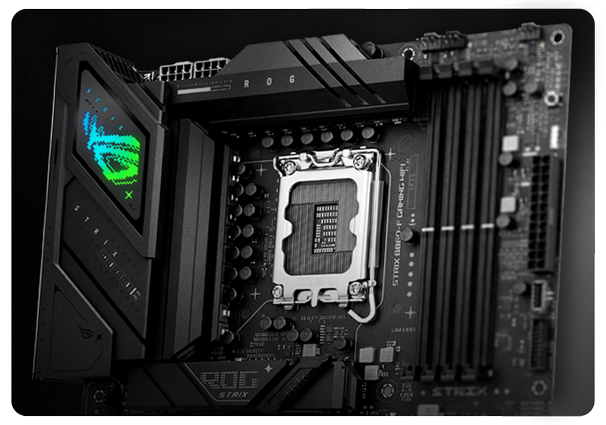

VRM Heatsink ArrayTwo thick heatsinks covering the power delivery section provide strategic airflow channels for increased heat dissipation while empowering high-performance Intel Core Ultra Processors.

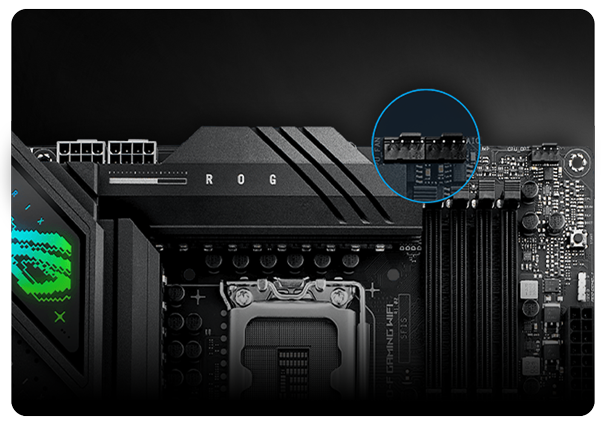

CPU Fan and AIO Pump Fan HeadersA dedicated pair of PWM fan headers provide easy access to power for big CPU coolers, with another dedicated PWM header available for connecting self-contained AIO water-cooling setups.

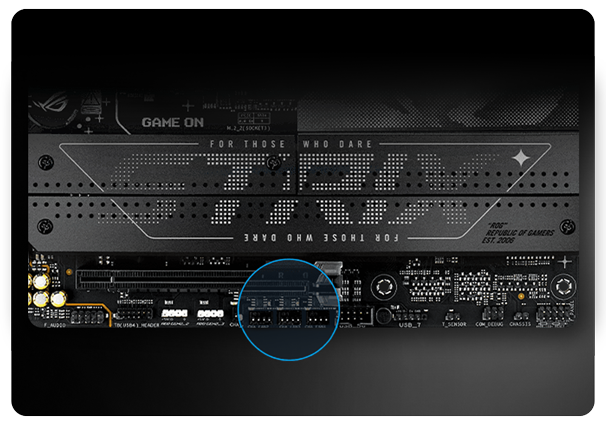

4-Pin Fan HeadersThe Strix B860-F features four chassis fan headers, each supporting auto-detection of PWM or DC fans, for worry-free, reliable system cooling.
