*3XS* ZOTAC NVIDIA GeForce RTX 5080 SOLID CORE 16GB GDDR7 Graphics Card

Images

Thumbnail Thumbnail Thumbnail Thumbnail

*3XS* ZOTAC NVIDIA GeForce RTX 5080 SOLID CORE 16GB GDDR7 Graphics Card

Scan Code:LN159601

Manufacturer Code:ZT-B50800D2-10P

Customer Reviews and Q&A

Product Overview

ZOTAC GAMING GeForce RTX 5080 SOLID CORE

The ZOTAC GAMING GeForce RTX 5080 SOLID CORE is a no-frills, all-action package to sate your need for performance and speed. Featuring NVIDIA's cutting-edge Blackwell architecture and features like DLSS4 and flagship-level cooling solution, the SOLID CORE is built tough and hard-hitting when it comes to games and benchmarks.


No Frills, All Action

With a stealthier aesthetic and engineered for durability and performance, the ZOTAC GAMING SOLID is for those who demand pure performance over anything else. A solid design, powerful cooling, and robust durability with minimal distractions.


A Powerful Cooling System

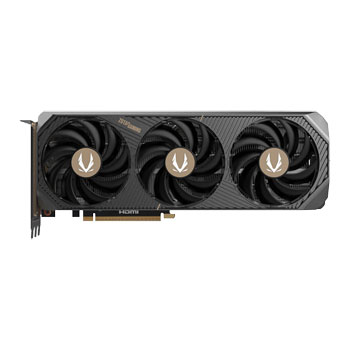

Bladelink fans provide an optimised airflow intake whilst reinforcing the overall structure and rigidity of the graphics card. The card is designed to allow free-flowing air movement through the structural housing, with vents and cut-outs forming part of the backplate design. A full length heatsink and a large vapor chamber directly extract heat from the GPU, with composite heat pipes channelling that heat away to be exhausted by the fans.


Active Fan Control 2.0

Control each fan independently for maximum noise and temperature control.


Noise Redefined

Every aspect of the ZOTAC GAMING GeForce RTX 50 Series cards are optimised to minimise noise and heighten immersion. The fans are also capable of stopping when the GPU is idle or under low load.


Dual BIOS

With the press of a single button, you can switch between two cooling profiles, prioritising either noise, or temperature.


Increased Durability

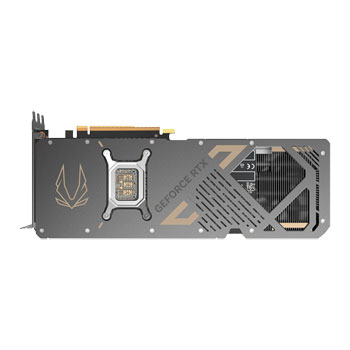

As the most important, and often most expensive component in your PC, the ZOTAC GAMING 50 Series cards are built to last. A solid metal backplate provides the necessary rigidity and strength to support high-end cards of this size. An additional retention bracket enhances cold-plate to GPU contact distribution for more effective heat transfer. The reinforced metal mid-frame is integrated into the overall housing from end to end, for even more solidity throughout.


Power and Stability

ZOTAC have included a built-in safety light for the 12V-2x6 reverse connector port, so you can be confident your power cable is seated correctly. The connector is also gold-plated, to provide better conductivity and ensure it is resistant to corrosion. The bundled metal support stand helps combat GPU sag, giving you peace of mind for years to come.


SPECTRA Link

Take more control with the graphics card RGB lighting with SPECTRA Link. Connect the graphics card to a compatible motherboard with an RGB port via SPECTRA Link and let your motherboard lighting software sync the graphics card lighting with the rest of your system.


A Refreshed Look

The ZOTAC GAMING FireStorm Utility has a new fresh coat of paint for the 50 series, matching the elegance of our new design. FireStorm comes with a host of tuning and monitoring options that include clock speeds, GPU memory frequencies, voltage, fan speed, fan curve settings, and SPECTRA RGB lighting effects.

Features
Specifications
Key Specifications
Chipset GeForce RTX 5080
Edition ZOTAC GAMING GeForce RTX 5080 SOLID CORE
Manufacturing process 4 nm
Microarchitecture Blackwell
Cores & Clocks
Cores 10752
Core Clock
Boost Clock 2617 MHz
AI TOPS 1801
Video Memory (VRAM)
Memory Size 16GB
Memory Type GDDR6
Memory Clock
Memory Bus 256 Bit
Cooling
Cooling Solution Tri Fan (3)
Included/Fitted Backplate Yes
I/O & Connectivity
Interface PCIe 5.0 (x16)
Connectivity
  • 3 x DisplayPort 2.1b
  • 1 x HDMI 2.1b
Visuals
GeForce VR Ready Yes
Multi-Way Graphics Support Not Supported
Microsoft DirectX Support 12 API
HDCP Ready Yes
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 (8K UHD)
Ray-Tracing
Real-Time Ray Tracing Yes
NVIDIA RT Cores 84 (4th Gen)
NVIDIA Tensor Cores 336 (5th Gen)
Power & Thermals
Graphics Card Power Connectors 1 x 12v-2x6
Graphics Card TDP/Power 360W
Minimum Recommended PSU 850 W
Physical
Width 2.5 Slot
Low Profile Support N/A
Dimensions 303.5 x 115.8 x 55.7 mm
Package Type OEM
Additional Information
Scan Code LN159601
Model Number ZT-B50800D2-10P
