be quiet! Black Silent Base 802 PC Gaming Case

Images

Thumbnail Thumbnail Thumbnail Thumbnail

be quiet! Silent Base 802, Black, Mid Tower, 3x 140mm Fans, USB 3.2 Gen2, E-ATX/ATX/mATX/mITX

Scan Code:LN112187

Manufacturer Code:BG039

Customer Reviews and Q&A

Silent Base 802 Black PC Case from be quiet!

silent base 802

EXCELLENT VERSATILITY, PERFORMANCE AND SILENCE The Silent Base 802 is the ideal solution for users who strive for whisper-quiet operation and maximum performance. This innovative PC case comes with two different top and front covers so you can choose based on your needs. One is optimised for silent operation, and the other for maximum airflow. There's also three Pure Wings 2 140mm fans pre-installed to kickstart your cooling. Silent Base 802 uses extra thick insulation mats to minimise system noise, and on the top lies an impressive I/O panel that offers a fan controller and USB 3.2 Gen 2 Type C.

Optimised for Air or Water Cooling

back

INTERCHANGEABLE TOP COVERThe first of two included top covers perfectly rounds off the design of the Silent Base 802 Black and ensures a silent operation. For all who strive for extremely powerful cooling and especially with water-cooled systems, the highly air-permeable top cover is the right choice.

Enjoy Maximum Performance or Whisper-Quiet Operation

back

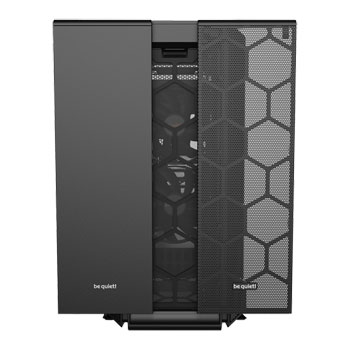

INTERCHANGEABLE FRONT PANELThe airflow front panel provides maximum performance for sophisticated configurations with highest demands for low temperatures. The standard front panel is the perfect choice for silent systems and regular PC configurations. Both panels are included.

Made to Stay Cool

back

THREE PREINSTALLED PURE WINGS 2Three preinstalled Pure Wings 2 140mm fans with airflow-optimized fan blades ensure perfect airflow and solid cooling no matter if you chose a high airflow or a silence optimized configuration.

Peace and Quiet? No Problem

back

SUPERB NOISE DAMPENINGThe front and sides are equipped with extra thick dampening mats of up to 10mm, resulting in maximum stability and superb noise dampening capabilities. The decoupled PSU bracket, motherboard tray and HDD cages also minimize vibrations. The full metal body provides stability for the case and improves its haptic.

State-of-the-Art Technology for your System

back

SMART I/O PORTSA USB 3.2 Gen. 2 Type C connector is provided on the front I/O port and allows usage of the latest hardware. The integrated 4-step fan controller allows the setting of the speed of up to six fans manually or connect all to one PWM signal.

Build your Ideal Layout

back

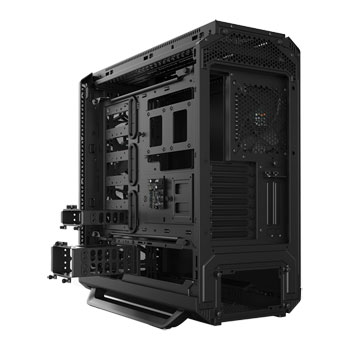

VERSATILE MOTHERBOARD TRAYThe motherboard tray is decoupled and can be installed alongside the left panel in an inverted layout. It is also removable for use as a test bench.

Keeping your System Neat is a Breeze

4K Recording

FUNCTIONAL PSU SHROUDThe PSU shroud perfectly covers the cables, PSU and contains a double HDD cage. The cover plates are separately detachable to install a 140mm fan on the top. With the small cover detached a 360mm or 420mm radiator can be installed at the front. Using the PSU bracket the power supply unit can be easily installed from behind.

Specifications
Core Chassis Specifications
Case Edition Silent Base 802
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (305 x 275mm)
  • MicroATX
  • Mini-ITX
Back Connect Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Fan Controller Button(s)
  • 1 x HD Audio
  • 1 x Power Button
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Drive Bays
  • 7 x 2.5" Internal
  • 3 x 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots 2
Fans & Filters
Fan Bays 8 x 120mm / 8x 140mm
Fans Included 3 x 140mm
Fan Controller/Hub Built-in Fan Controller
Dust Filters
  • Bottom
  • Front
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360/420mm
Top Radiator Compatibility 1 x 120/240/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120/140mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 185 mm
Max GPU Card Length 432 mm
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 288 mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials SECC / Plastic
Dimensions 281 x 553 x 539 (WxHxD mm)
Weight 12.59 kg (Approx)
Package Type
Please Note
Additional Information
Scan Code LN112187
Model Number BG039
GTIN 4260052188378
