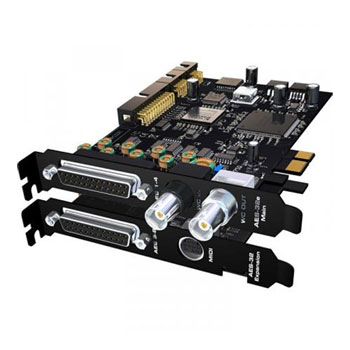

RME HDSPe AES, PCIe Audio Interface

Images

Thumbnail

RME HDSPe AES, PCIe (x1) Interface, 192 kHz, AES Only Digital Interface, 10 Dawbench LLP

Scan Code:LN22626

Manufacturer Code:RME-HDSPE-AES/32

Customer Reviews and Q&A

Product Overview The HDSPe AES is a short-length PCI Express card with AES/EBU interfaces. It provides eight AES inputs (16
channels) and eight AES outputs (16 channels) at 192 kHz sample rate. The card is also equipped with two MIDI
I/O ports, word clock I/O, and can be used with the optional TCO module for synchronization to LTC and video.

The HDSPe AES is RMEs reaction to requests from audio professionals for an AES-based solution with the
typical RME features and quality. This audio card is a perfect all-in-one solution for professional users in
the fields of broadcast, TV, theater, stage/PA - and in any professional studio.

Scan Computers are approved RME resellers with dedicated product specialists trained by RME. Please contact us to arrange your product demo in store today. Features
Specifications
Computer Interface Type PCI-E 1X
Connections (Input)
  • 8 x AES-EBU (XLR)
  • 2 x MIDI
  • 1 x Word Clock (BNC)
Mic Preamps (Max)
Instrument Inputs (Max)
Phantom Power No
Sample Rate (Max) 192 kHz
Bit Resolution 24
iPad Compatible No
Connections (Output)
  • 8 x AES-EBU (XLR)
  • 2 x MIDI
  • 1 x Word Clock (BNC)
Dimensions (mm)
DSP Processing No
Misc. Notes AES Only Digital Interface
Additional Information
Scan Code LN22626
Model Number RME-HDSPE-AES/32
GTIN 4260123362522
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
30 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
RME
