Antelope Discrete 8 Pro Synergy Core
Images
Antelope Discrete 8 Pro Synergy Core - 8x14,Studio TB 3 & USB 2, 1 FPGA and 2 DSP processors
Scan Code:LN134791
Manufacturer Code:Discrete 8 Pro Synergy Core
Customer Reviews and Q&A
1U Rack Audio Interface
Antelope - Discrete 8 Pro Synergy Core
Built to performThe Antelope Discrete 8 Pro is the new generation of a modern classic. The 1U rack audio interface features industry-leading sound quality, transparent preamps, diverse connectivity and the powerful Synergy Core effects platform. This versatile interface is made with a zero-compromise approach to hardware – made readily accessible through its redesigned software control panel.
The Discrete 8 Pro allows connection between any signal source and any destination for turning any session scenario into reality. Every analogue or digital output, effect strip or DAW track can receive any of the analogue or digital inputs, effect returns, computer source channels or the four stereo mixes. All this flexibility is accessible via the full virtual patch-bay or the simplified routing view, whichever you like!
Amazing Features
• 26x32 Thunderbolt 3 & USB 2.0 audio interface with built-in real-time effects
• Synergy Core integrated platform with 2x DSP and 1x FPGA chip
• Up to 24Bit / 192kHz AD/DA conversion
• 8 Discrete 6-transistor preamps
• Up to 130dB dynamic range
26 inputs & 32 outputs
Explore all avenuesThe generous number of preamps, analogue and digital I/O support a wealth of applications: voice work, multi-synth setups, live recordings of small ensembles and even close-miked drum kits. With both USB and Thunderbolt™ 3 connectivity, the interface achieves cutting-edge performance and easy integration with any setup.
uncompromising detailThe A-D/D-A converters and clocking are at the core of every studio. The Discrete 8 Pro has been upgraded with latest generation converters (up to 130dB of headroom), while keeping the 64-bit AFC™ clocking technology established by industry-standard master clocks. With the interface in your rack, you can experience a new level of nuance in your recordings and enjoy wider soundstage for an exceptional stereo image in audio playback.

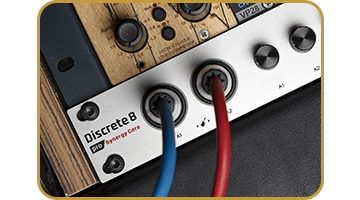

Console-gradeThe Discrete 8 Pro features eight discrete Class-A microphone preamps, formed of six transistors each and based on circuits found in classic recording consoles. The evidence is in the clarity, depth and ultra-low noise floor, with up to 65 dB of gain to satisfy even the hungriest mics. All eight inputs accept XLR as well as line-level TS/TRS jacks, and the two front panel inputs can even be switched to Hi-Z instrument inputs.
Stack Up Your Processing Chain
EFFECTS PROCESSINGThe unique Synergy Core platform gives you access to hardware-based analogue-modeled outboard recreations. Running on a hybrid system of one FPGA and two DSP chips, you can monitor, record and mix using an ever-expanding library of low-latency processors. Even at the highest sample rate, the Discrete 8 Pro supports the full number of effects, simultaneously.
up to 16 channel stripsWith the Discrete 8 Pro you can load effects on up to sixteen channel strips.
process any signal sourceYou can process any signal source – including all digital and analogue inputs and outputs.
extensive modelingThe interface is mic modeling ready, featuring an extensive library of all-time favorites to emulate when using the Edge series microphones.
37 Included Effects
Special Processing
Equalizers
Pedals, Delay & Modulation
Dynamics Processors
Guitar Cabs
Guitar Amps
Seamless Access
afx2dawafx2daw is a software bridge plugin that allows you to take advantage of the unique sound of the Synergy Core or FPGA effects of your Antelope Audio interface, all with the convenience of native plugins within your DAW.
All the processing is done inside your interface, so the afx2daw gives you the ability to mix and master with your favourite effects in real-time, with no complicated routing needed.
Beyond The Basics
With a wide selection of I/O options you can easily adapt to any recording scenario. The following set of dedicated features come in handy as workflow requirements evolve.
Word clock I/OSync the rest of your digital hardware to your Discrete with three Word Clock outputs. With the Word Clock input, you can slave the interface for more versatility in your clocking configuration.
Reamp outputsTake your clean guitar signal outside the interface and record it back using your favourite amplifier/cabinet combo, without needing a reamp box.
TalkbackChoose any of the eight mic inputs or the dedicated, built-in talkback mic on the front panel, to send to the monitor and headphone outputs.
Footswitch inputThis input supports either a single footswitch (on 1/4″ TS jack) to control the dim function or a dual footswitch to control both the talkback and dim functions.
The Tech Spec
| Features | Specifications | Total I/O | 26 x 32 |
|---|---|
| Mic inputs | 8 |
| Line inputs | 8 |
| Headphone outs | 2 |
| Dedicated line outs | 8 |
| ADAT I/O | Up to 16 channels |
| Word clock I/O | 1 x In/3 x Out |
| Mic preamps | Discrete Class A, Console-grade |
| A/D conversion headroom | 122dB |
| D/A conversion headroom | 130dB |
| Effects processing engine | FPGA + DSP |
| Available FX channel strips | 16 |
| Maximum effects per strip | 8 |
| Routing modes | Virtual Patch Bay + SImplified |
| Thunderbolt™ version | 3 |
| On-screen metering | Adaptive-source based |
| Low-latency monitoring with DSP FX | Yes |
| CPU-free mixing with DSP-accelerated FX in your DAW | Yes |
| Freely included DSP-accelerated FX | 37 FX |
| Dimensions (W x H x D) | 483 x 44 x 220mm |
| Weight | 3.1kg |
