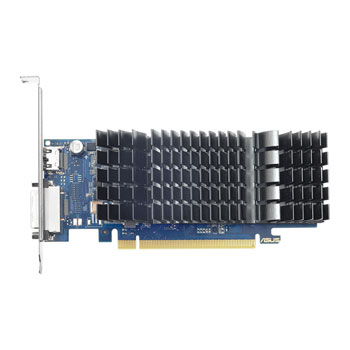

ASUS NVIDIA GeForce GT 1030 2GB Passive PCIe Graphics Card

Images

Thumbnail Thumbnail Thumbnail

ASUS GeForce GT 1030 Passive 2GB GDDR5 Graphics Card, 384 Core, 1228MHz GPU, 1468MHz Boost

Scan Code:LN81590

Manufacturer Code:GT1030-SL-2G-BRK

Customer Reviews and Q&A

Product Overview

ASUS NVIDIA GeForce GT 1030 2GB Passive

Accelerate your entire PC experience with the fast, powerful ASUS GeForce GT 1030 Passive graphics card. Its award winning NVIDIA Pascal architecture, powerful graphics engine, and state-of-the-art technologies give you the performance upgrade you need to drive today's most demanding PC applications. Unleash your creativity with stunning HD video and picture editing and enjoy incredible gaming. Now, you can do it all 2X faster than with Intel Core i5 integrated graphics. You can even get easy driver updates and one-click game optimization with GeForce Experience.


0dB Cooling: Perfect for Building a Hushed HTPC

Exclusive ASUS-designed heatsink with large surface area effectively cools the graphics card passively so absolutely no sound is produced while running – perfect for high-definition and silent home theatre PCs and multimedia centers.


Low Profile Design: Perfect for Mini-ITX PCs

ASUS gets the graphics card design done right for HTPC and multimedia use with its narrow & compact form factor. The card is designed to easily run current game titles at 1920x1200 resolution and play smooth Blu-ray 3D content.


AUTO-EXTREME Technology

An industry-only, 100% automated production process that incorporates Super Alloy Power II components for premium quality and best reliability.


ASUS GPU Tweak II with XSplit Gamecaster

With an intuitive new UI, GPU Tweak II makes overclocking easier than ever, featuring gaming booster to maximise graphics performance, and Xsplit Gamecaster to stream or record your gameplay.

Features
Specifications
Key Specifications
Chipset GeForce GT 1030
Edition Passive
Manufacturing process 16 nm
Microarchitecture Pascal
Cores & Clocks
Cores 384
Core Clock 1228 (1266 in OC Mode) MHz
Boost Clock 1468 (1506 in OC Mode) MHz
AI TOPS
Video Memory (VRAM)
Memory Size 2GB
Memory Type GDDR5
Memory Clock 6008 MHz
Memory Bus 64 Bit
Cooling
Cooling Solution Passive
Included/Fitted Backplate No
I/O & Connectivity
Interface PCIe 3.0 (x16)

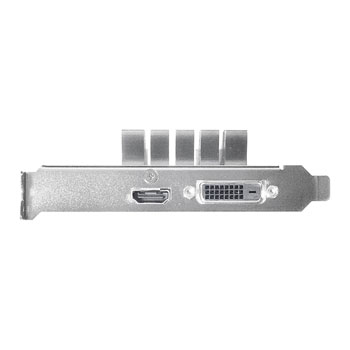

Connectivity
  • 1 x DVI-D SL
  • 1 x HDMI 2.0b
Visuals
GeForce VR Ready No
Multi-Way Graphics Support Not Supported
Microsoft DirectX Support 12 API with Feature Level 12.1
HDCP Ready Yes
Max. Concurrent Displays 2 Displays
Maximum Digital Resolution 4096x2304 (4K) @60Hz
Ray-Tracing
Real-Time Ray Tracing No
NVIDIA RT Cores
NVIDIA Tensor Cores
RTX-OPS
Rays Cast
Power & Thermals
Graphics Card Power Connectors
Graphics Card TDP/Power 30W
Minimum Recommended PSU 300 W
Maximum GPU Temperature 97 °C
Physical
Width 1.5 Slot
Low Profile Support N/A
Dimensions 69 x 40 x 173 mm
Package Type Retail
Additional Information
Scan Code LN81590
Model Number GT1030-SL-2G-BRK
GTIN 4712900743333
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
36 months
