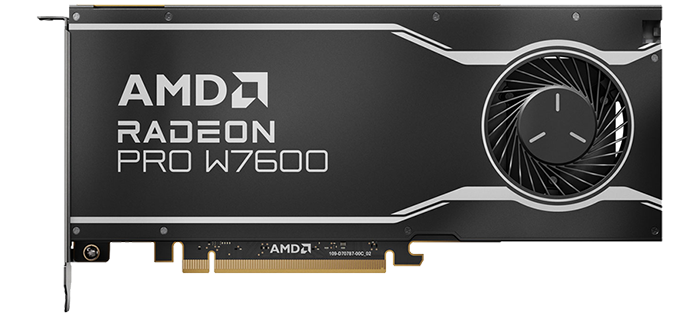

AMD Radeon PRO W7600 8GB RDNA3 Workstation Graphics Card

Images

Thumbnail Thumbnail Thumbnail

AMD Radeon PRO W7600 8GB GDDR6 Ray-Tracing Workstation Graphics Card, 2440 Streams

Scan Code:LN139266

Manufacturer Code:100-300000077

Customer Reviews and Q&A

Radeon PRO W7600 8GB GDDR6 RDNA3 Workstation Graphics Card from AMD

AMD Radeon PRO W7000 Series Workstation GPU

The Next Step in Pro-Grade GraphicsThe AMD Radeon™ Pro W7000 Series brings the RDNA™ 3 architecture to a full professional lineup, built around a new chiplet approach that expands capability across every tier. Across the range, you’ll find modern GDDR6 options with ECC, updated compute units equipped with ultra-fast AI accelerators, and second-generation ray tracing to support more demanding lighting and material workloads. The media engine steps up with dual encode/decode streams, AV1 encode and decode, plus a new AI-enhanced encode path for cleaner, more efficient production pipelines. Visual output is driven by the AMD Radiance Display Engine, delivering DisplayPort™ 2.1 bandwidth up to 77.4 Gbit/s, support up to 12K120, and readiness for next-generation displays across the full W7000 stack.

2440Stream Processors

8 GBGDDR6 Memory

PCIe 4.0 (x16)Rapid Interface

RDNA 3Microarchitecture

Single SlotGPU Size

Powered by RDNA3™ Technology

RDNA 3 Chip

Built for Advanced Creation and Visualisation

Person Modelling Car in Software

Accelerate Your PerformanceThoroughly tested and certified for CATIA and the 3DExperience® platform for optimized performance and reliability.

Industrial Applications

Manage Complex ProjectsTake on demanding, large, photorealistic architectural, engineering and construction environments in real time while completing other tasks simultaneously.

Architectural Applications

Create Without RestraintsLoad enormous 3D scenes, compute real-time effects, take advantage of AI enabled features and encode/decode workloads at the same time.

Illustrate Anything

Realistic Skin and Shadow 3D Modelling Project on Monitor

Astonishing, Realistic Visual DepthCreate and experience breathtaking visuals with up to 68 billion colors at up to 8K 165 Hz with AMD Radiance Display™ Engine for amazing color accuracy and clarity for your designs. It delivers full coverage of the REC2020 color space and is the world's first GPU series with DisplayPort™ 2.1.

DisplayPort 2.1Modern Interface

8K 165HzHigh-End Support

Colour and Glossy Texture 3D Modelling Project on Monitor

Next Generation PerformanceWith GDDR6 memory, AMD Radeon™ PRO W7000 Series workstation graphics cards let you work on large designs and renderings or focus on daily tasks with high performance and energy efficiency.

Revit & AECFaster Model Handling

Reduced TwinmotionSmoother Visual Output

Made for Creators

DaVinci Resolve Workstation

Video Production and CODECsAMD Radeon graphics powered by AMD Software give you the performance to work fast and be productive, with hardware-accelerated video effects and encode/decode of HEVC, H.264 and AV1 content.

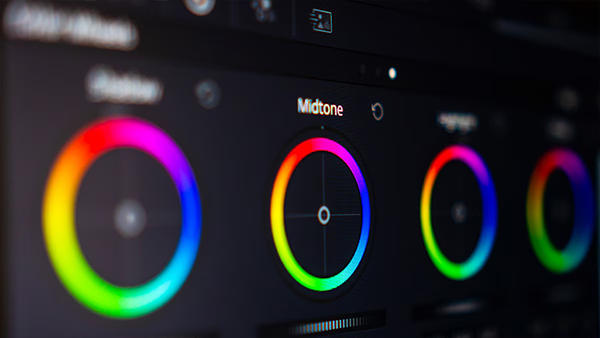

DaVinci Resolve Colour Wheels

Post-Production & VFXFor VFX tasks that demand ultimate performance and reliability, AMD Radeon™ and AMD Radeon™ PRO graphics cards can help you create, visualise and inspire.

Precise Performance

8GB GDDR6 Memory with ECC Support

21.4 TFLOPS Peak Single-Precision

32 Ray Accelerators

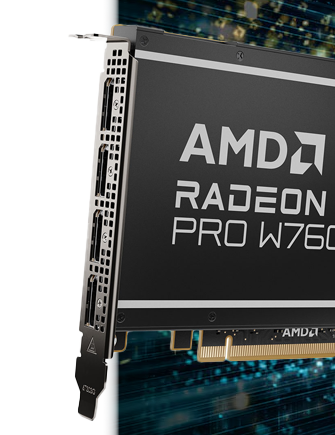

4x DisplayPort 2.1


Radeon PRO W7600 Datasheet

Specifications
Key Specifications
Chipset Radeon PRO W7600
Edition W7600
Manufacturing Process 6 nm
Microarchitecture RDNA 3
Cores & Clocks
Streams 2440
Core Clock
Boost Clock
Video Memory (VRAM)
Memory Size 8GB
Memory Type GDDR6
Memory Bus 128 Bit
Memory Bandwidth 288 GB/s
Cooling
Cooling Solution Single Fan (1)
Fitted/Included Backplate No
I/O & Connectivity
Interface
Connectivity 4 x DisplayPort 2.1
Visuals
AMD CrossFire Support
AMD Freesync Support No
HDR Support Yes
Microsoft DirectX Support
Max. Concurrent Displays
Maximum Digital Resolution 7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution
Compute Performance
Peak Half Precision Compute Performance (FP16) 40 TFLOPs
Peak Single Precision Compute Performance (FP32) 20 TFLOPs
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors 1 x 6-pin PCIe
Graphics Card TDP/Power 130 W
Minimum Recommended PSU 450 W
Maximum GPU Temperature
Physical
Width Single Slot
Low Profile Support
Dimensions
Package Type
Additional Information
Scan Code LN139266
Model Number 100-300000077
GTIN 727419314855
