Corsair MP700 PRO XT 2TB M.2 (2280) PCIe Gen 5 NVMe SSD / Solid State Drive

Images

Thumbnail Thumbnail Thumbnail Thumbnail

2TB Corsair MP700 PRO XT, M.2 (2280) PCIe 5.0 (x4) NVMe SSD, 14900MB/s Read, 14500MB/s Write, 2700k / 3300k IOPS

Scan Code:LN164635

Manufacturer Code:CSSD-F20GBMP700PXNH

Customer Reviews and Q&A

2TB MP700 PRO XT PCIe Gen5 x4 NVMe M.2 (2280) SSD from Corsair

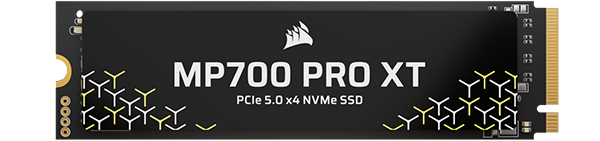

CORSAIR MP700 PRO XT

blazing fast gen5 speedsThe CORSAIR MP700 PRO XT pushes PCIe Gen5 storage to its limits. Featuring read speeds up to 14,900MB/sec and write speeds up to 14,500MB/sec, it offers incredible boot, load, and transfer times. Its power-efficient design ensures top-tier performance with lower power draw and less heat. With support for Microsoft DirectStorage, this SSD can communicate directly with a GPU for unbeatable gaming speed. Thanks to the versatility of CORSAIR SSD Toolbox software and a five-year warranty, the MP700 PRO XT delivers cutting-edge storage performance for years to come.

2TBDrive Capacity

14,900 MB/s / 14,500 MB/sSequential Read/Write Speeds

PCIe Gen5 x4Interface Type

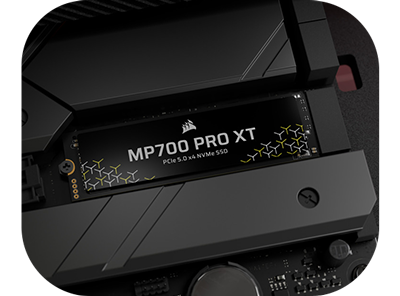

Powered by NVMe 2.0

NVMe 2.0

A Fantastic Addition to Your StoragePCIe Gen5 x4 combines with the massively high-bandwidth NVMe 2.0 interface to unleash higher-speed data transfers and greater M.2 SSD performance than ever before.

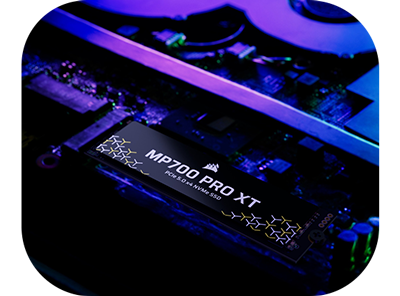

High-Density 3D TLC NAND Memory

Storage

Built to stand the test of timeProvides the ideal mix of performance and capacity to keep your drive performing at its best for years. Compact M.2 2280 form-factor fits directly onto most motherboards.

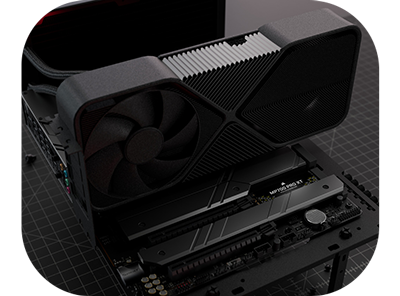

Wide Compatibility

Compatibility

CORSAIR SSD Toolbox SoftwareSupports the latest PCIe 5.0 architecture of Intel Z890 and AMD X870 platforms and beyond. Enable advanced drive controls from your desktop including secure erase and firmware updates. Microsoft DirectStorage allows the MP700 PRO XT to communicate directly with your graphics card when playing compatible games, for unbelievably fast load times.

DirectStorage requires a DirectX12 GPU with Shader Model 6.0 support.

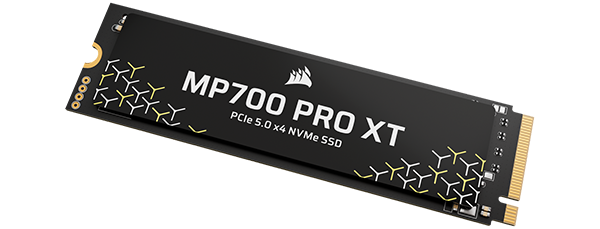

Impressive Gen5 Storage Performance

Impressive Gen5 read and write speeds

Your PC Made FasterLoad games, boot Windows, open and transfer files, all faster than ever. *Backward Compatible – Support for PCIe Gen4 and Gen3 systems at reduced performance.

Outstanding enduranceGuaranteed for up to 3,000TB Written, the MP700 MICRO's longevity ensures that it reliably stores your data through many years of use.

Comprehensive Warranty

Warranty

Guaranteed reliabilityLong-term reliability and industry-leading customer support for peace of mind.

Specifications
Capacity 2TB
Edition MP700 PRO XT
Form Factor M.2 (2280)
Height 2.4mm
Interface PCIe 5.0 (x4)
Host Controller Interface NVMe 2.0
Controller Phison PS5028-E28
Flash Memory Type 3D TLC
Max. Read 14900 MB/s
Max. Write 14500 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 2700k IOPS
Max. Random Write 4K 3300k IOPS
Latency N/A
Special Features
  • Garbage Collection
  • S.M.A.R.T Support
  • TRIM Support
Power Consumption (active) 6.2w
Max. Endurance Rating 1400TBW
MTBF 1.5M Hours
Max. Operating Vibration
Max. Non-operating Vibration
Max. Operating Shock
Max. Non-operating Shock
Connectivity 1 x M.2
OS Support
Bracket N/A
Dimensions 22 x 2.4 x 80.4 mm (WxHxD)
Weight 75 g
Package Type
Additional Information
Scan Code LN164635
Model Number CSSD-F20GBMP700PXNH
GTIN 840440416678
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
60 months
