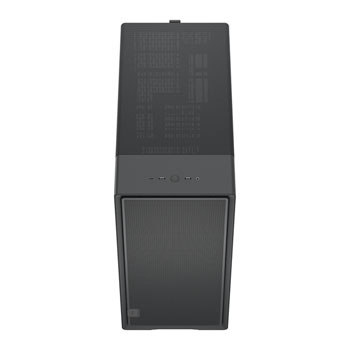

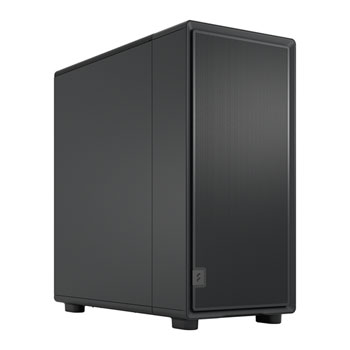

Fractal Design Epoch XL Solid Black Mid Tower PC Gaming Case

Images

Thumbnail Thumbnail Thumbnail Thumbnail

Fractal Design Epoch XL Solid Mid Tower Chassis, Black, 3x 140mm Fans, USB 3.2, Back-Connect, mITX / mATX / ATX / E-ATX

Scan Code:LN163528

Manufacturer Code:FD-C-EPO1X-01

Customer Reviews and Q&A

Epoch XL Black Solid Mid Tower PC Gaming Case from Fractal

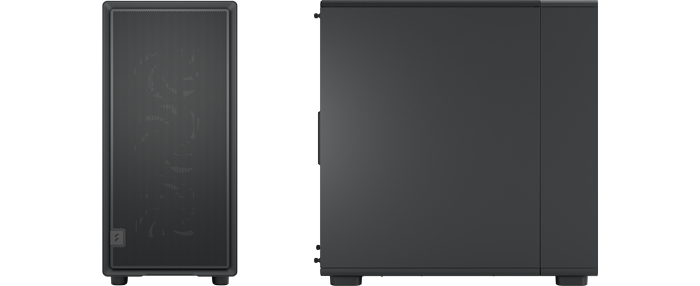

Epoch XL Mid Tower PC Gaming Case

Elegant airflow in a generous format Epoch XL scales up the clean and contemporary design of the Epoch series into a more spacious format. With a mesh front panel and three powerful Momentum 14 fans included, it is engineered to keep components running smoothly. For ambitious builds, further cooling can be added with support for up to 360 radiators in the front and top, together with space for a graphics card up to 425 mm in length. Exterior details such as a laser-etched aluminium badge, a textile pull tab, and a fine-pattern mesh contribute to a sleek, uncluttered look. On the inside, a refined interior layout and neatly integrated cable routing help maintain a clean and tidy finish.


Please note: Images are for illustrative purposes, you are viewing the Epoch XL Black Solid PC Case.

The Epoch XL Line Up

Feature image

from Fractal designEpoch XL combines clean and contemporary design with modern airflow engineering. Featuring a mesh front and top with optimised interior layout. Each Epoch XL is unique and either comes with a solid panel, tempered glass design, or RGB version in both Black and White.

A Generous Interior

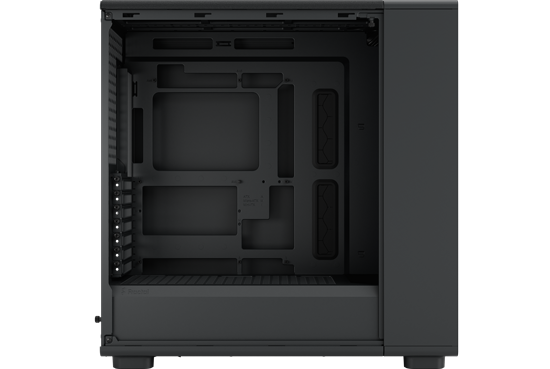

Epoch XL Mid Tower PC Gaming Case

Tool-free access Create your ideal build with ample space for next-generation components and integrated reverse motherboard compatibility. Supports motherboards up to 275 mm E-ATX with front-facing connectors and up to ATX with reverse connectors.

Contemporary Design

Design

Clean, seamless style. Integrate your setup seamlessly into your gaming station with clean lines, a tidy interior, and refined details such as a laser-etched aluminium badge.


Fans

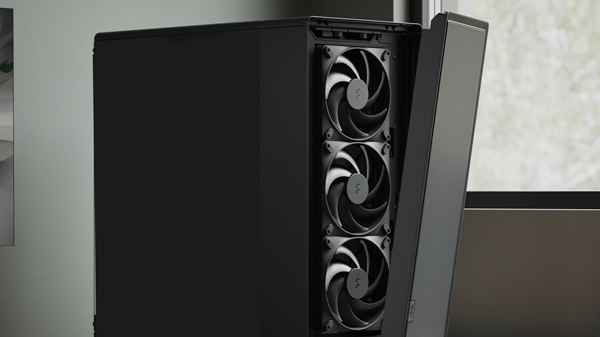

Powerful fans included. Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.

Organised Interior Layout

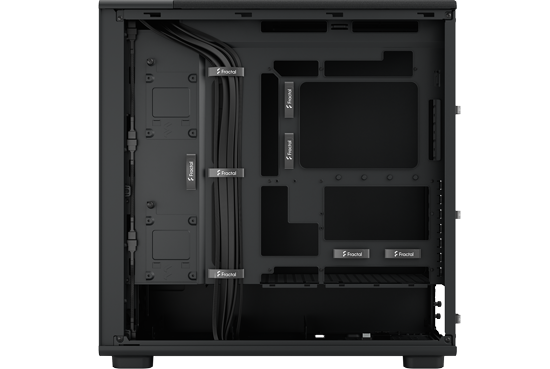

Epoch XL interior

with tidy cable routing Achieve a tidy look with a clean interior layout, cable routing grommets, and movable routing straps to help keep your cables neatly arranged. Keep your high-performance components running cool with a clean interior layout and ventilated top and front panels for strong natural airflow.

Easily Accessible Design

Access to your system

Fabric Pull Tab. Enjoy a smooth build experience with tool-free access, including a pull-to-remove front panel and a sliding top panel featuring a fabric tab.


Epoch XL front I/O view

Accessible I/O. Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports, and a combined audio and microphone jack.

Space to Build it Your Way

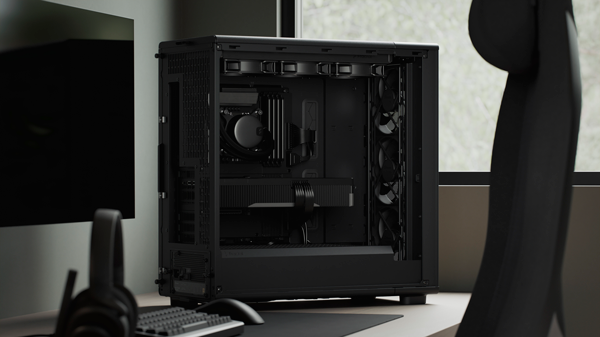

Graphics card ready

Ready for Gaming Create a powerful gaming system with space for graphics cards up to 425 mm in length with front-mounted fans, or up to 395 mm with a front radiator.

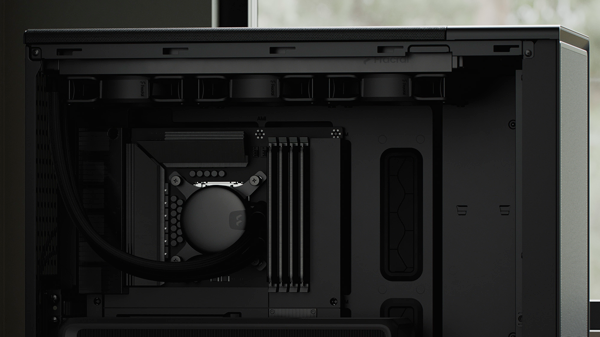

Epoch XL front radiator view

Cooler Compatible. Cool your build further with compatibility for up to 360 mm radiators in the front and top, with space for a CPU air cooler up to 176 mm in height.

Specifications

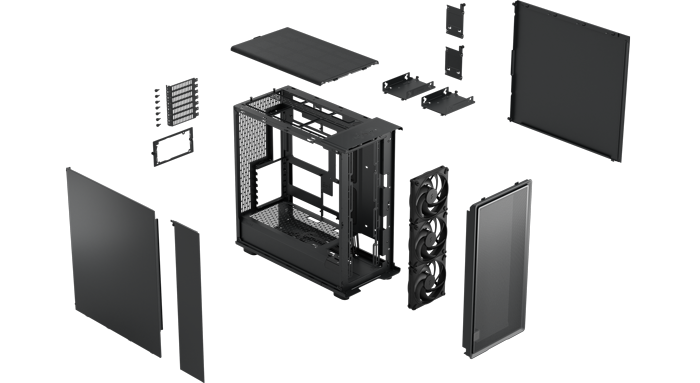

Components

What's included?

• Hook and Loop fixed straps
• 37 mm cable routing space
• Cable routing grommets
• Captive thumbscrews
• Tool-less push-to-lock

Motherboard compatibility
(Front-facing connectors:)
• E-ATX up to 275 mm/ ATX / mATX / ITX
(Rear-facing connectors:)
• ATX / mATX

• Total fan mounts: 7x 120 mm or 5x 140 mm
• 3.5"/2.5" drive mounts: 2 (2 included)
• Dedicated 2.5" drive mounts: 2 (2 included)
• Expansion slots: 7
• PSU dust filter

Specifications
Core Chassis Specifications
Case Edition Epoch XL Solid
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
Back Connect Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 1 x Power Button
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 4.0 Type-C or USB 3.2 Gen2x2 Type-C
Drive Bays
  • 2 x 2.5" Internal
  • 2 x 3.5" / 2x 2.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays 7 x 120mm / 5x 140mm
Fans Included 3 x 140mm
Fan Controller/Hub
Dust Filters PSU
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/280/360mm
Top Radiator Compatibility 1 x 120/140/280/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 176 mm
Max GPU Card Length 425 with front fan / 395 with front radiator mm
Cable Routing Space 37 mm
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 290 mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials
Front Panel Type N/A
Dimensions 240 x 509 x 503 (WxHxD mm)
Weight 9.36 kg (Approx)
Package Type
Please Note
Additional Information
Scan Code LN163528
Model Number FD-C-EPO1X-01
GTIN 7340172710370
