*3XS* Corsair 3500X LX-R RGB White Tempered Glass Mid Tower PC Case

Images

Thumbnail Thumbnail Thumbnail Thumbnail

*3XS* Corsair 3500X LX-R RGB, White, Mid Tower, Tempered Glass, Reverse Connection, 3x iCUE LINK LX120R RGB

Scan Code:LN161372

Manufacturer Code:CC-9011325-WW/3XS

Customer Reviews and Q&A

3500X LX-R ARGB White Mid-Tower PC Case from Corsair

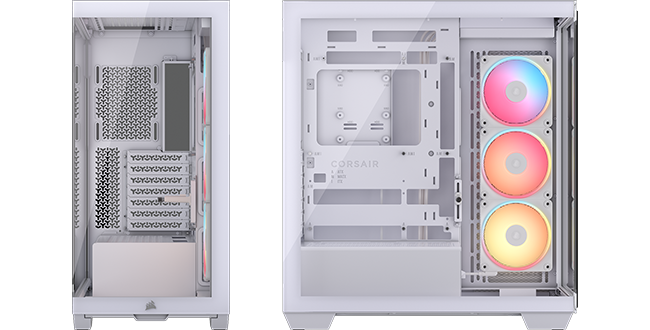

3500X RS-R ARGB Mid-Tower

build with an unforgettable view The CORSAIR 3500X LX-R RGB Mid-Tower Glass PC Case is your gateway to a high-performance iCUE LINK ecosystem, with a clean, modern design framed by wraparound tempered glass panels. Three pre-installed LX120-R reverse rotor RGB fans provide vibrant lighting and strong airflow, all with the streamlined connectivity of iCUE LINK, reducing cable clutter. Its spacious interior supports large graphics cards, CPU coolers, and radiators up to 360mm for custom or all-in-one liquid cooling. Compatible with the latest reverse connection motherboards for a cable-free interior, the 3500X also includes a GPU Anti-Sag Stabilization Arm to support your graphics card, while double-shot grommets improve cable routing for a cleaner build.

ATX / E-ATX / MicroATX / Mini-ITXMotherboard Form Factor

410mmMax GPU Card Length

170mmMax CPU Cooler Height

Mid-TowerForm Factor

Maximum Visibility

Glass Panels

Wraparound glass view with removable front and side panelsThe 3500X has all the cooling benefits and essential features you need to build an amazing PC, supporting motherboard form-factors from Mini-ITX to EATX, with a wraparound glass aesthetic to give you the view to match. Easily removable front and side glass panels make it easy to build and access your system after it’s done.

Flawless Design

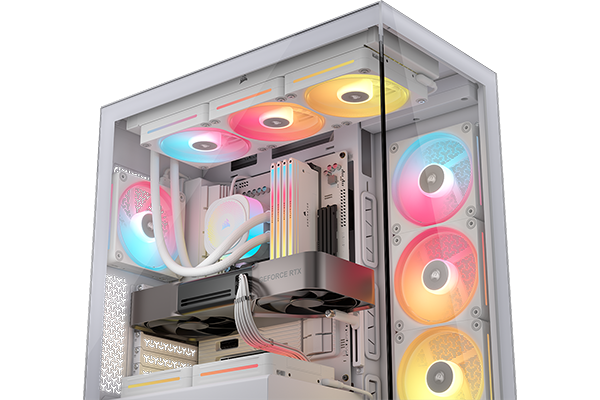

RGB Fans

LX120-R ARGB FansThree pre-installed LX120-R reverse rotor RGB fans and an iCUE LINK System Hub bring you into the iCUE LINK ecosystem, featuring simplified connections and reduced cabling for a clean, streamlined build.

Reverse Connection Motherboard Support ASUS BTF and MSI Project Zero validated.

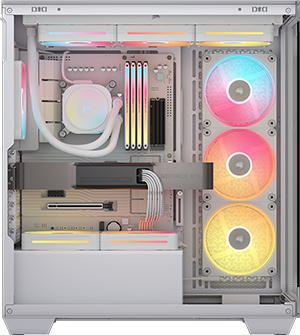

Motherboard Clearance

Validated for use with ASUS BTF and MSI Project Zero motherboards featuring connections on the back of the board, so your view isn’t spoiled by plugged-in cables.

Endless Support for your Components

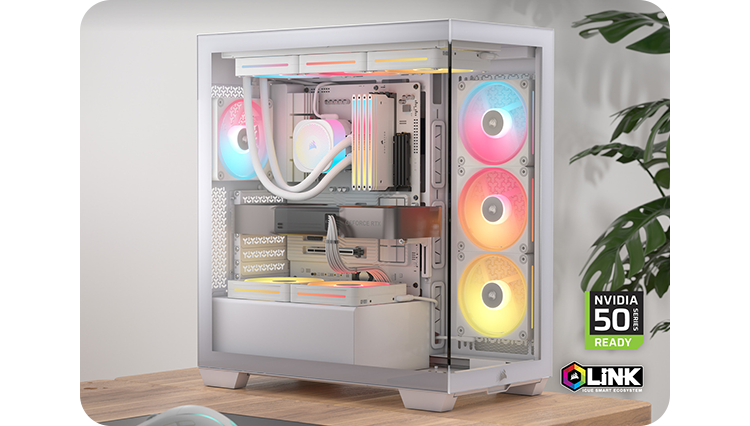

Component Support

Fits Multiple 360mm RadiatorsMount radiators up to 280mm and 360mm in the roof and 360mm in the side to support liquid cooling.

Double-Shot GrommetsSoft rubber inners allow smooth cable passthrough, while firm rubber outers hold each grommet securely in place.

spacious InteriorYour high-powered gaming PC will fit right in, with room to accommodate most large graphics cards and CPU coolers

Support for iCUE LINKCut down on cable clutter when you build with CORSAIR iCUE LINK smart components (sold separately), with built-in iCUE LINK cable hooks to make it even easier to create your dream system.

Specifications
Core Chassis Specifications
Case Edition CORSAIR 3500X LX-R RGB
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (305 x 275mm)
  • MicroATX
  • Mini-ITX
Back Connect Compatible Yes
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Drive Bays
  • 2 x 2.5" Internal
  • 2 x 3.5"
Standard Expansion Slots 7 Horizontal (or 4 Vertical)
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 1 x 120mm
  • 9 x 120mm / 5x 140mm
Fans Included 3 x 120mm w/ Addressable RGB LEDs
Fan Controller/Hub
Dust Filters
  • Bottom
  • Side
  • Top
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility 1 x 240/280/360mm
Bottom Radiator Compatibility 1 x 120mm
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility 1 x 240/280/360mm
Clearances
Max CPU Cooler Height 170 mm
Max GPU Card Length 410 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
  • 1 x Front
  • 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Included Addressable LED Fan/s
LED Lighting Colour RGB (16.7 Million Colours)
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length
Chassis Physical Specifications
Colour White
Chassis Construction Materials
Front Panel Type N/A
Dimensions 240 x 506 x 460 (WxHxD mm)
Weight 9.3 kg (Approx)
Package Type OEM
Please Note
Additional Information
Scan Code LN161372
Model Number CC-9011325-WW/3XS
GTIN 97524106
