Cooler Master Elite 502 White ARGB Mid Tower TG PC Case

Images

Cooler Master Elite 502 Mid Tower Chassis, Reverse Connection, 3x 120mm ARGB Fan, White, mITX / mATX / ATX / E-ATX

Scan Code:LN160906

Manufacturer Code:E502-WGNN-S00

Customer Reviews and Q&A

Cooler Master Elite 502 White Tempered Glass Mid PC Gaming Chassis

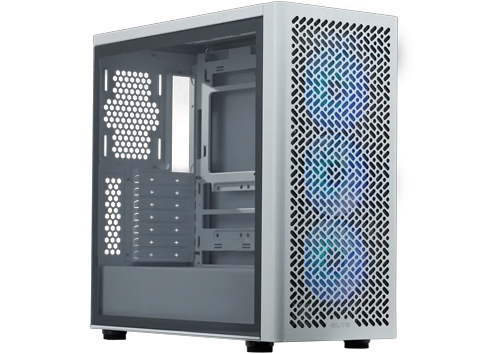

Cooler Master Elite 502 White Mid Tower PC Case

Effortless efficiency The Cooler Master Elite 502 is a feature-rich mid-tower PC chassis that combines exceptional airflow, modern aesthetics, and versatile hardware support for both new and experienced builders. It stands out with support for back-connect motherboards, offering 33-35mm of cable management clearance behind the tray, which ensures a clean, clutter-free interior and simpler assembly. The sturdy mesh front panel and three pre-installed 120mm ARGB fans deliver powerful cooling and stylish lighting, while support for up to seven total fans or large radiators makes it ideal for high-performance setups. Spacious enough for 410mm graphics cards (W/O Front Radiator) and 170mm CPU coolers, the Elite 502 also includes convenient front I/O with USB 3.2 Gen 1 Type-A and Type-C, a tempered glass side panel, and removable drive cages. This chassis is designed to make your PC build both visually stunning and easy to maintain, all while keeping your components cool and accessible.

Please note: Images are for illustrative purposes, you are viewing the Cooler Master Elite 502 in White.

Hardware and Cooling Support

Versatile thermal options Supports up to seven 120mm fans and either a top-mounted 360mm radiator or a front-mounted 420mm radiator, offering hyper-effective CPU thermal performance.

Room for updates Supports a 410mm GPU, a 170mm CPU cooler, and ample space for future hardware upgrades.

Designed to Suit Your Build Needs

ARGB style meets performance. The Elite 502 comes equipped with three 120mm ARGB fans, it offers stable cooling performance while adding stunning lighting effects to your build.

Back-connected motherboard support. Supports back-connected motherboard design, freeing up space at the front of the case and providing 33-35mm of space behind the motherboard tray for easier cable management.

Removable HDD cage. The Elite 502 comes with a HDD cage that is completely removable, providing better access during assembly and system upgrades.

Front I/O USB Type-C support. Features modern connectivity with a built-in USB Type-C port for faster, streamlined data transmission.

Specifications

Core Chassis Specifications
Case Edition	Elite 502 White
Case Form Factor	Mid Tower
Motherboard Form Factor	ATX E-ATX (up to 12"x10.9") MicroATX Mini-ITX
Back Connect Compatible	Yes

I/O, Bays & Expansion
Front/Side/Top Panel I/O	1 x Headphone/Mic Combo 1 x USB 3.2 Gen1 Type-A 1 x USB 3.2 Gen1 Type-C
Drive Bays	2 x 2.5" Internal 2 x 3.5"
Standard Expansion Slots	7
Vertical Expansion Slots

Fans & Filters
Fan Bays	1 x 120mm 6 x 120mm / 5x 140mm
Fans Included	3 x 120mm w/ Addressable RGB LEDs
Fan Controller/Hub
Dust Filters	Bottom Front Top

Liquid Cooling Support
Front Radiator Compatibility	1 x 120/140/240/280/360/420mm
Top Radiator Compatibility	1 x 120/140/240/280/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility	1 x 120mm
Side Radiator Compatibility

Clearances
Max CPU Cooler Height	170 mm
Max GPU Card Length	410 (W/O Front Rad) mm
Cable Routing Space	33-35 mm

Side Panels
Window/s	Yes
Window Configuration	1 x Main Side
Window Construction	Tempered Glass

LED Lighting Functionality
LED Lighting	Yes
LED Lighting Emitters	Included Addressable LED Fan/s
LED Lighting Colour	RGB (16.7 Million Colours)
LED Lighting Support & Control

Power Supply Compatibility
PSU Included	No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support	ATX
PSU Mounting Location	Bottom Mount, Rear
Max PSU Length	170mm, 210mm (w/o HDD Cage) mm

Chassis Physical Specifications
Colour	White
Chassis Construction Materials	Steel / Tempered Glass
Front Panel Type	N/A
Dimensions	230 x 481 x 474 (Incl. Protrusions) (WxHxD mm)
Weight
Package Type	Retail
Please Note

Additional Information
Scan Code	LN160906
Model Number	E502-WGNN-S00
GTIN	4719512158517
