Cooler Master Elite 502 Black ARGB Mid Tower TG PC Case

Images

Thumbnail Thumbnail Thumbnail Thumbnail

Cooler Master Elite 502 Black ARGB Mid Tower TG Chassis, Reverse Connection, 3x 120mm ARGB Fan, mITX, mATX, ATX, E-ATX

Scan Code:LN160905

Manufacturer Code:E502-KGNN-S00

Customer Reviews and Q&A

Cooler Master Elite 502 Black Tempered Glass Mid PC Gaming Chassis

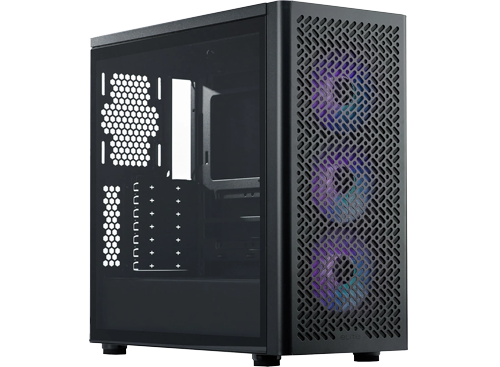

Cooler Master Elite 502 Black Mid Tower PC Case

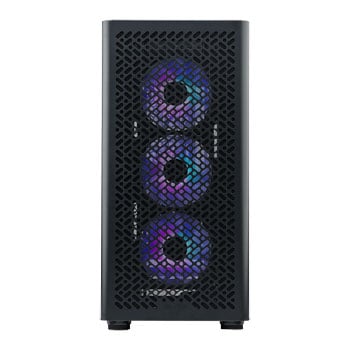

Effortless efficiency The Cooler Master Elite 502 is a feature-rich mid-tower PC chassis that combines exceptional airflow, modern aesthetics, and versatile hardware support for both new and experienced builders. It stands out with support for back-connect motherboards, offering 33-35mm of cable management clearance behind the tray, which ensures a clean, clutter-free interior and simpler assembly. The sturdy mesh front panel and three pre-installed 120mm ARGB fans deliver powerful cooling and stylish lighting, while support for up to seven total fans or large radiators makes it ideal for high-performance setups. Spacious enough for 410mm graphics cards (W/O Front Radiator) and 170mm CPU coolers, the Elite 502 also includes convenient front I/O with USB 3.2 Gen 1 Type-A and Type-C, a tempered glass side panel, and removable drive cages. This chassis is designed to make your PC build both visually stunning and easy to maintain, all while keeping your components cool and accessible.

Please note: Images are for illustrative purposes, you are viewing the Cooler Master Elite 502 in Black.

Hardware and Cooling Support


features

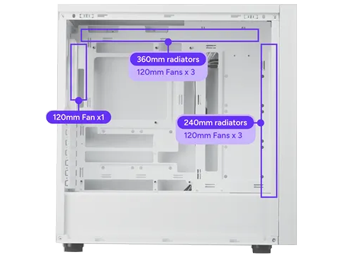

Versatile thermal options Supports up to seven 120mm fans and either a top-mounted 360mm radiator or a front-mounted 420mm radiator, offering hyper-effective CPU thermal performance.

features

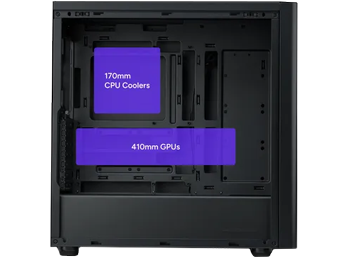

Room for updates Supports a 410mm GPU, a 170mm CPU cooler, and ample space for future hardware upgrades.

Designed to Suit Your Build Needs

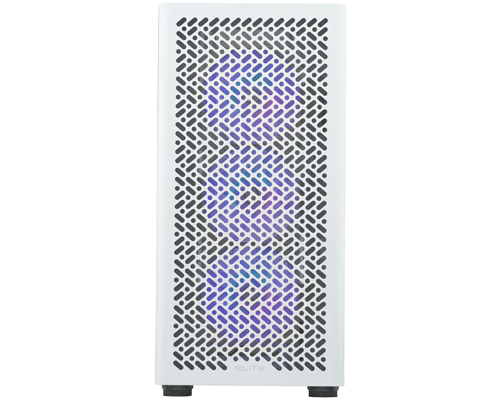

ARGB Fans

ARGB style meets performance. The Elite 502 comes equipped with three 120mm ARGB fans, it offers stable cooling performance while adding stunning lighting effects to your build.


features

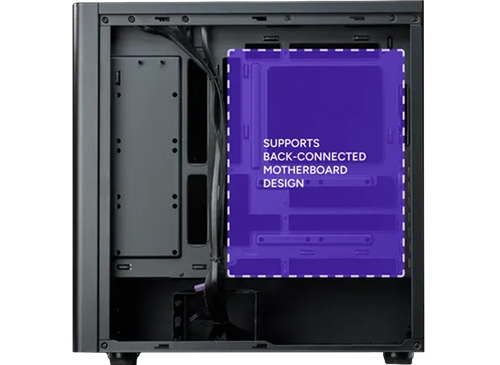

Back-connected motherboard support. Supports back-connected motherboard design, freeing up space at the front of the case and providing 33-35mm of space behind the motherboard tray for easier cable management.


features

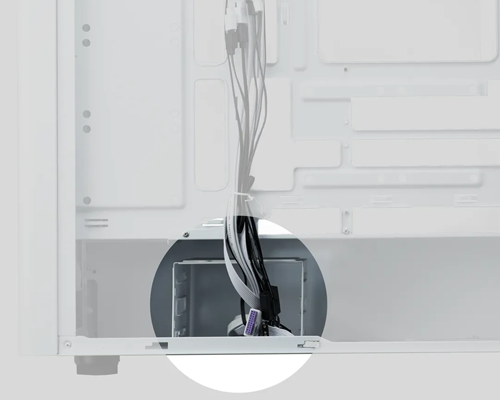

Removable HDD cage. The Elite 502 comes with a HDD cage that is completely removable, providing better access during assembly and system upgrades.


panel

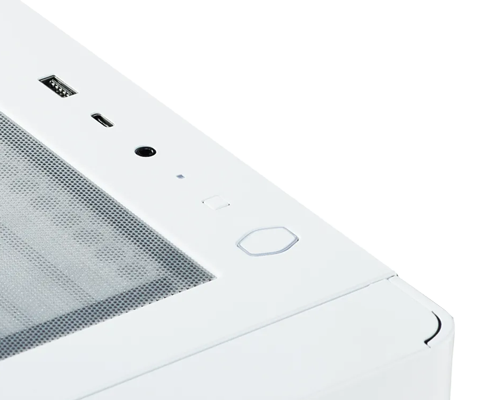

Front I/O USB Type-C support. Features modern connectivity with a built-in USB Type-C port for faster, streamlined data transmission.



Specifications
Core Chassis Specifications
Case Edition Elite 502 Black
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (up to 12"x10.9")
  • MicroATX
  • Mini-ITX
Back Connect Compatible Yes
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 1 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
Drive Bays
  • 2 x 2.5" Internal
  • 2 x 3.5"
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 1 x 120mm
  • 6 x 120mm / 5x 140mm
Fans Included 3 x 120mm w/ Addressable RGB LEDs
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360/420mm
Top Radiator Compatibility 1 x 120/140/240/280/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 170 mm
Max GPU Card Length 410 (W/O Front Rad) mm
Cable Routing Space 33-35 mm
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Included Addressable LED Fan/s
LED Lighting Colour RGB (16.7 Million Colours)
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 170mm, 210mm (w/o HDD Cage) mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials Steel / Tempered Glass
Front Panel Type N/A
Dimensions 230 x 481 x 474 (Incl. Protrusions) (WxHxD mm)
Weight
Package Type Retail
Please Note
Additional Information
Scan Code LN160905
Model Number E502-KGNN-S00
GTIN 4719512158500
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
