Lian Li O11 Dynamic Mini V2 Flow White Dual Chamber Compact Mid Tower PC Gaming Case

Images

Thumbnail Thumbnail Thumbnail Thumbnail

Videos

Lian Li O11D Mini V2 Flow White, Dual Chamber Compact Mid Tower Chassis, Tempered Glass, 120mm Fans, ATX / mATX / mITX

Scan Code:LN160811

Manufacturer Code:O11DMIV2FW

Customer Reviews and Q&A

Lian Li O11D Mini V2 White Flow Edition
Dual Chamber Compact Mid Tower Tempered Glass Chassis

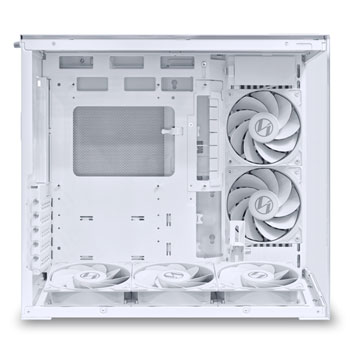

Lian Li O11D Mini V2 Dual Chamber Mid Tower Chassis Full Build Side and Front View

Precision Re-sized with Elegant EfficiencyA compact chassis refined for serious performance - offering smart cooling, modular flexibility and clean aesthetics; all in a unique, sleek build. At 2 litres larger than the original O11D Mini, the V2 provides better hardware compatibility and improved airflow. An extended side mesh accommodates larger PSUs, whilst back-connect functionality facilitates the use of the newest motherboards. Optimised for GPU cooling, the O11D Mini V2 has been designed with a slanted floor, channelling airflow directly to the GPU. Additional features include airflow covers that prevent pressure leaks, adjustable anti-sag GPU support, and a repositionable I/O module; making this case the true master of flexibility and aesthetics.

Dual Chamber Mini-TowerForm Factor

Tempered GlassFront & Side Panel

mITX / mATX / ATXMotherboard Compatibility

I/O Icon showing I/O Module positions

Top or Bottom I/O

GPU Bracket Icon shwoing Adjustable GPU height

Adjustable GPU Bracket

GPU Cooling Icon showing GPU airflow direction

Optimised GPU Cooling

Extended Side Mesh Icon showing proximity to PSU for cooling

Extendeed Side Mesh for PSU

mATX Mounting Position Icon showing the two mounting heights

Two M-ATX Mounting Positions

Slanted Base Icon showing the 10-degree floor angle

Slanted Floor Design

Please Note

Images below are used for illustrative purposes ONLY.
Please refer to the product carousel and titles above for the correct product variant.

Level-Up Your Aesthetics

Lian Li O11D Mini V2 Side-view showing various Back-Connect Motherboard sizes

ATX Back-ConnectThe Mini V2 offers broad motherboard support, specifically for ATX, m-ATX and mini-ITX form factors. For users seeking next-level cable management and cleaner builds, Back-Connect compatibility is exclusively available with ATX Back-Connect motherboards.

Go with the Flow

Beamforming

O11D Mini V2
Flow Edition
The Lian Li O11D Mini V2 - Flow Edition comes pre-installed with a total of five reverse blade PWM fans (three bottom, two side) for strong, silent airflow right out of the box. These fans ensure reliable cooling efficiency without having to worry too much about an optimal cooling setup.

GPU Cooling Optimisation

Lian Li O11D Mini V2 Full Build Side View with 10-degree slanted base angle highlighted

Angled Base
for Direct Airflow
A 10° slanted base helps to channel cool air directly to the GPU for better cooling performance whilst openly showcasing your chosen system fans. In thermal testing, the O11D Mini V2 achieved significantly better GPU thermals - registering a 3.1° improvement over the LANCOOL 207, or apparoximately 6% better GPU cooling performance.

Where Performance Meets Flexibillity

Lian Li O11D Mini V2 Side View showing compatible radiator sizes with different motherboard positions

Freedom to ChooseThis case features moveable motherboard standoffs, allowing vertical adjustment of the mATX mounting position. In turn, this improves compatibility with 280mm radiators, as well as thicker 360mm or 240mm models. Fans and radiators can also be installed outside of the case, then dropped into place using a bracket, simplifying the build process.

Lian Li O11D Mini V2 Top and Bottom I/O module positions

The I/O module can be placed either at the top of the case, or the bottom - offering adaptability for various build layouts and desk arrangements in different environments.

Anti-Sag GPU SupportHorizontal and Vertical GPU brackets are included out of the box, giving users the freedom to choose their GPU orientation whilst ensuring longevity for bigger, more powerful cards.

Lian Li O11D Mini V2 Anti-Sag GPU Bracket
Lian Li O11D Mini V2 Anti-Sag GPU Bracket

Adjustable Anti-Sag BracketThe vertical GPU support bracket features a height adjustment mechanism to accommodate varying card sizes and guarantee your case is the perfect home for your components.

Protected Air Pressure

Lian Li O11D Mini V2 Air Pressure Covers

No More LeaksToolless fan cover brackets help to seal off unused fan mounts, preventing internal air pressure leakage and keeping airflow concentrated. In combination with the included dust filters (bottom, top and right side), maintaining pressure can also help to prevent dust build up inside the case, reducing the need for regular maintenance.

Specifications
Core Chassis Specifications
Case Edition O11D Mini V2 Flow
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
Back Connect Compatible Yes
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 1 x Power Button
  • 2 x USB 3.0
  • 2 x USB 3.2 Gen1 Type-C
Drive Bays
  • 2 x 2.5" Internal
  • 2 x 3.5" / 2x 2.5" Internal
Standard Expansion Slots 5
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 6 x 120mm
  • 3 x 120mm / 2x 140mm
Fans Included 5 x 120mm
Fan Controller/Hub
Dust Filters Bottom
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility 1 x 240/280/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility 1 x 240mm
Clearances
Max CPU Cooler Height 160 mm
Max GPU Card Length 400 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
  • 1 x Front
  • 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length under 200mm mm
Chassis Physical Specifications
Colour White
Chassis Construction Materials Aluminium / Glass
Front Panel Type N/A
Dimensions 273.3 x 391.95 x 423.6 (WxHxD mm)
Weight 10.8 kg (Approx)
