Vector V100 Tempered Glass Mid Tower with 4 ARGB Fans from Lian Li

Lian Li Vector V100 Dual Chamber Case

Vivid Visuals, Powerful PerformanceThe Vector V100 is engineered around the idea of performance on display. With dual tempered glass panels, an elevated hardware showcase platform, and an integrated ARGB light strip, it turns your build into a centrepiece. The adaptable interior balances DIY flexibility with ease of installation, making it an ideal choice for gamers and PC enthusiasts who want a personalised, polished setup.

Please Note:

Images from this point are used for illustration purposes. For the selected variant, please refer to the sections above.

Fits Most Motherboards

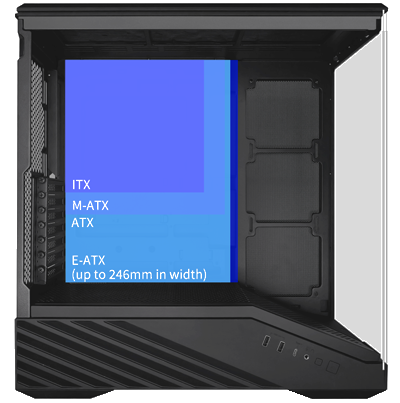

Side view of case with Motherboard Support highlighted

Deceptively SpaciousThe Vector V100 fits the conventional ITX, mATX and ATX loadout, but it also supports E-ATX boards too! Additionally, the case is fully back-connect compatible, ready to take on ASUS BTF, MSI Project Zero, Gigabyte Stealth and other boards of this type without a hitch.

Cool and Clear

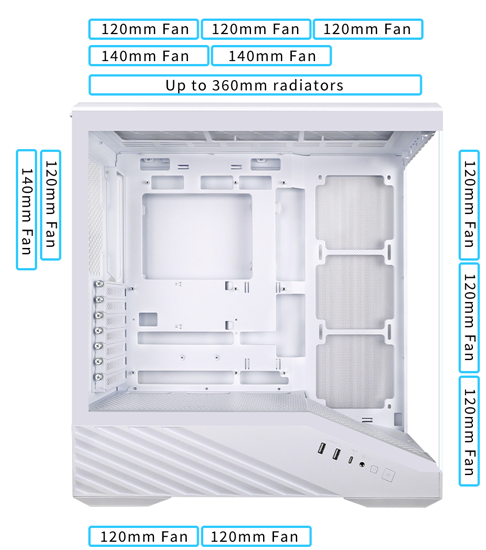

Annotated main side of case with motherboard compatibility and fan/radiator brackets

Accommodates up to 9 fans and supports up to 360mm radiators for exceptional cooling performance. Included out of the box are 4 high-airflow ARGB PWM fans that can be effortlessly customised in Lian Li's L-Connect 3 software.

4x Included 120mm ARGB Fans

420mm GPU Clearance

Numbered image of exposed alt side revealing second chamber and cable management features

Features a tool-free cable management design with a dedicated front-side chamber for cleaner routing. Comes pre-installed with a GPU support bracket to prevent sag and keep heavier cards securely in place.

Cable Straps
Cable Clips
Spacious Grommets

Dual Chamber Intake

Annotated image of alternate side with intake direction labelled

Superior ThermalsIn addition to accommodating large water cooling and air cooling setups, the Vector features an optimized mesh panel on the side, with a perforation rate of up to 40.3%—greatly enhancing cooling efficiency. This high airflow design helps maintain consistent internal temperatures by allowing more air to pass through the chassis without obstruction.

Make it Yours

Annotated high-angle shot of case bottom with RGB strip and figurine platform

26-LED L-Connect Strip
A 26-LED ARGB strip runs cleanly down the front panel and curves into the case floor, creating a soft gradient glow that connects both surfaces. It’s fully addressable, adding visual motion without disrupting airflow or layout.

Room for Figurines!
Set just above the PSU shroud, a rear platform gives you a dedicated spot for figurines or collectibles. It’s raised enough to stand out but tucked back to avoid clashing with key components or airflow paths.

Ascending I/O

The Vector V100’s side I/O panel is smartly integrated into the case’s side, providing intuitive access to power buttons and USB 3.0, 3.1 and Audio. The unique slanted design makes things look clean, tidy and aesthetically pleasing when complimented with the RGB guiding above.

Annotated Cutout of Bottom-Side I/O Panel
Specifications
Core Chassis Specifications
Case Edition Vector V100
Case Form Factor Dual Chamber Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX
  • MicroATX
  • Mini-ITX
Back Connect Compatible Yes
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 3.0
  • 1 x USB 3.1 Type-C
Drive Bays
  • 1 x 2.5" Internal
  • 1 x 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 3 x 120mm
  • 4 x 120mm / 3x 140mm
Fans Included 4 x 120mm w/ Addressable RGB LEDs
Fan Controller/Hub
Dust Filters Bottom
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility 1 x 360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 178 mm
Max GPU Card Length 420 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
  • 1 x Front
  • 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters
  • Included Addressable LED Fan/s
  • Included Addressable LED Light Strip/s
LED Lighting Colour RGB
LED Lighting Support & Control Compatible with Lian Li L-Connect
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Top Mount, Rear
Max PSU Length
Chassis Physical Specifications
Colour White
Chassis Construction Materials Steel
Front Panel Type N/A
Dimensions 235.5 x 484.65 x 446 (WxHxD mm)
Weight
Package Type Retail
Please Note
Additional Information
Scan Code LN160809
Model Number V100RW
GTIN 4718466017918
