ThermalTake View 600 TG Black Full Tower Tempered Glass PC Case

Images

Thumbnail Thumbnail Thumbnail Thumbnail

Thermaltake View 600 TG Full Tower Chassis, Black, Tempered Glass, USB 3.2 Gen 2 Type-C, mATX / ATX / EATX

Scan Code:LN160519

Manufacturer Code:CA-11H-00F1WN-00

Customer Reviews and Q&A

View 600 TG Black Full Tower Tempered Glass PC Case from Thermaltake

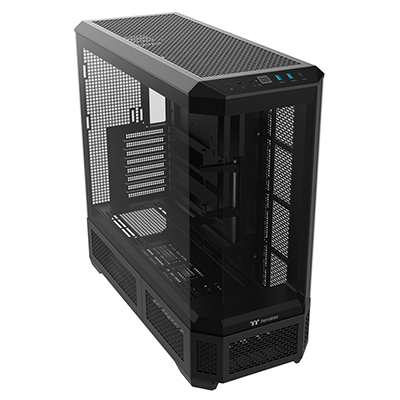

View 600 TG

FULL TOWER, FULL SHOW Designed to impress from every angle, the View 600 TG is a refined, showcase-style full-tower chassis, highlighted by three pieces of tempered glass panel in the front. Combined with a tempered glass side panel on the left, the panoramic glass design offers an uninterrupted view into your system. Your PC is not just a PC, but also a masterpiece.

Aside from the aesthetics, the performance and functionality are not overlooked. The View 600 TG supports up to E-ATX motherboards with hidden-connector features. The whole chassis is well ventilated on every possible corner, even the PSU chamber. View 600 TG has the capacity of accommodating up to 420mm radiators and up to ten 140mm fans on modular fan brackets.

View 600 TG is compatible with the 6” LCD Panel Kit, which integrated seamlessly TT RGB Plus 3.0 software, offering real-time monitoring and deeper personalization.
(Sold separately)

ATX / E-ATX / MicroATX / Mini-ITXMotherboard Form Factor

480mmMax GPU Card Length

175mmMax CPU Cooler Height

Full TowerForm Factor

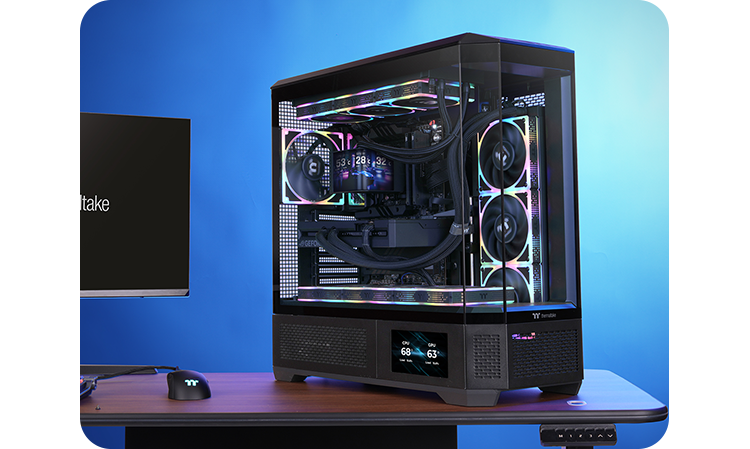

Maximum Visibility

Glass Panels

Four Tempered Glass PanelsThe View 600 TG features four tempered glass panels, providing a panoramic view of your system’s components. This design is specifically intended for enthusiasts who value aesthetics and want to showcase their build with maximum visibility from multiple angles. The clean lines, integrated ARGB support, and tool-less removable glass panels emphasise both style and ease of maintenance.

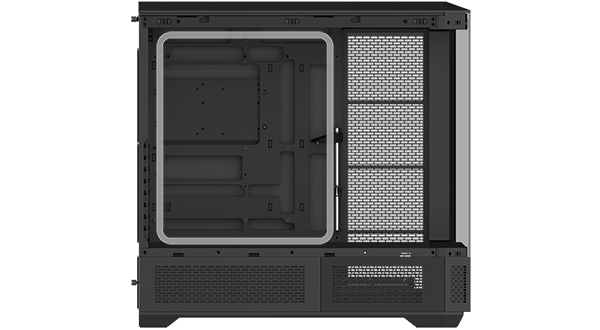

Extensive Motherboard Compatibility

Motherboard Support

Compatible with Hidden-Connector MotherboardsSupporting up to E-ATX (12” x 13”) motherboards, as well as ATX and Micro-ATX models—including back-connector/hidden connector motherboards—the View 600 TG offers maximum flexibility for high-end or next-generation systems. This adaptability provides a clean internal look and accommodates powerful hardware configurations.

Visually Pleasing, Totally Interactive

LCD Display

LCD Panel KitMaximise your View 600 TG’s visual effects by upgrading it with Thermaltake's LCD Panel Kit. The 6” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus software. Through the latest TT RGB Plus, the 6‘’ LCD display presents real-time information and plays JPG and GIF files at a 1480*720 resolution. It comes with six default background styles, and users can upload up to 20 custom images. Additionally, the display can show time and weather information, enhancing both visual appeal and customisation options for your build.

Please Note: The LCD Panel Kit is sold separately.

Cooling is a Breeze

View 600 Cooling

exceptional fan & radiator supportThe View 600 TG offers excellent cooling flexibility, supporting up to 420mm or 360mm radiators on both the top and motherboard side. Designed for high-performance cooling, the View 600 TG Full Tower Chassis also supports up to ten 120mm or 140mm fans, giving users maximum airflow customisation to their system. Thanks to its spacious interior, the View 600 TG Full Tower Chassis still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.

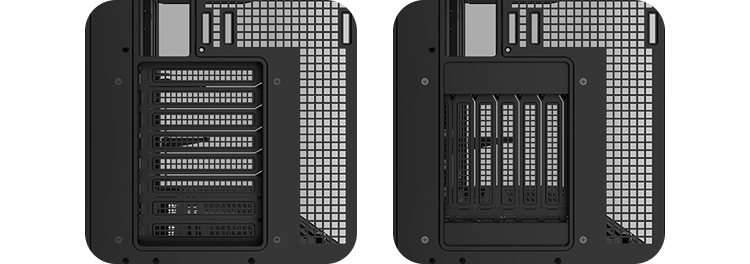

Display it Your Way

PCI-E Slots

rotatable pci-e slotsThe rotatable PCI-E slots, along with an optional riser cable (sold separately), support both horizontal and vertical GPU mounting configurations. The View 600 TG series chassis also features a built-in graphics card holder for added support to prevent sagging.

Secure and Scalable Storage

View 600 Storage

flexible storage optionsThe drive cage located beneath the PSU shroud supports up to two 3.5” hard drives or two 2.5” solid-state drives. Additionally, the mounting plate behind the motherboard tray accommodates either one 3.5” hard drive or two 2.5” solid-state drives, providing flexible and expanded storage options for your build.

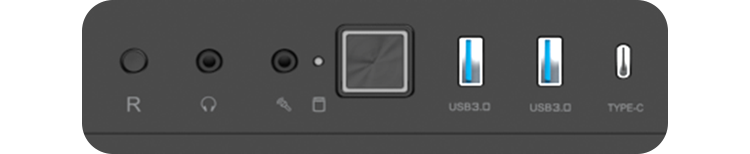

Versatile Connectivity

View 600 Ports

Handy I/O PortsTwo USB 3.0, one USB 3.2 Gen 2 Type C, one reset button and HD Audio ports are placed on the top panel to grant direct access when needed.

Top-located I/O ports consist of following functions:
Power Button with Integrated Power LED (Blue)
2 x USB 3.0 Type-A
1 x USB 3.2 Gen 2 Type-C
HD Audio
Reset Button

Specifications
Core Chassis Specifications
Case Edition View 600 TG
Case Form Factor Full Tower
Motherboard Form Factor
  • ATX
  • E-ATX (12" x 13")
  • MicroATX
  • Mini-ITX
Back Connect Compatible Yes
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 2 x USB 3.0
  • 1 x USB 3.2 Gen2 Type-C
Drive Bays 3 x 3.5" / 3x 2.5" Internal
Standard Expansion Slots 8
Vertical Expansion Slots
Fans & Filters
Fan Bays 10 x 120mm / 10x 140mm
Fans Included None
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360/420mm
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120/140mm
Side Radiator Compatibility 1 x 120/140/240/280/360/420mm
Clearances
Max CPU Cooler Height 175 mm
Max GPU Card Length 480 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
  • 1 x Front
  • 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length 220 mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials SPCC
Front Panel Type Tempered Glass
Dimensions 249 x 560 x 584 (WxHxD mm)
Weight 12.3 kg (Approx)
Package Type Retail
Please Note
Additional Information
Scan Code LN160519
Model Number CA-11H-00F1WN-00
GTIN 4711658540195
