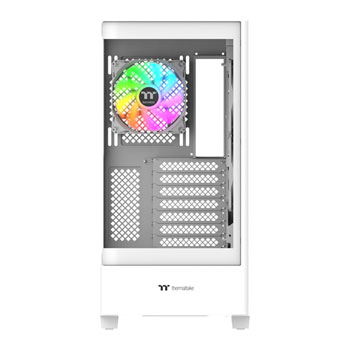

Thermaltake View 290 TG ARGB Snow Mid Tower Tempered Glass Gaming Case

Images

Thumbnail Thumbnail Thumbnail Thumbnail

Thermaltake View 290 TG ARGB Snow, Mid Tower Chassis, Curved TG Window, 3x120mm ARGB Fan, USB-C, ATX / mATX / mITX

Scan Code:LN160511

Manufacturer Code:CA-11G-00M6WN-00

Customer Reviews and Q&A

View 290 TG ARGB Snow Mid Tower Chassis from Thermaltake

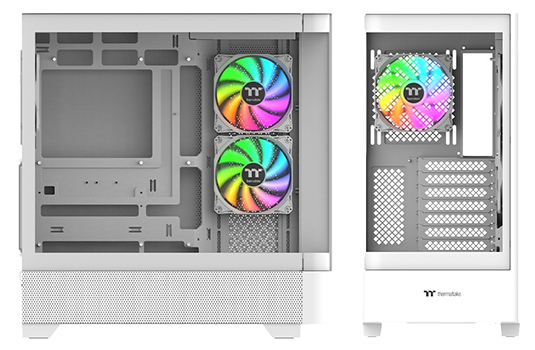

View 290 TG ARGB Mid Tower Chassis

Superior Cooling & Design The View 290 TG ARGB Mid Tower Chassis is an ATX case that includes a 4mm curved tempered glass front panel and a 3mm tempered glass side panel for clear internal visibility. It features rotatable PCI-E slots, a GPU support bracket, and comes with three 120mm ARGB Lite hydraulic bearing fans that deliver impressive lighting effects. The chassis supports RGB lighting control via software from ASUS, GIGABYTE, MSI, and ASRock. It can accommodate up to nine 120mm fans and a 360mm AIO radiator, ensuring effective cooling performance.

Show Off Your System

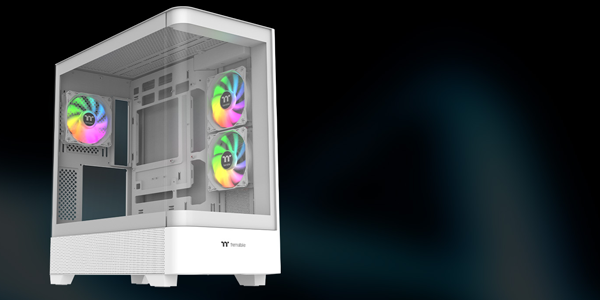

Three Hydraulic Bearing 120mm ARGB Lite Fans

Three Hydraulic Bearing 120mm ARGB Lite Fans The View 290 TG ARGB Mid Tower Chassis comes equipped with two 120mm ARGB Lite Reverse Fans and one 120mm standard ARGB Lite Fan. Its impressive lighting effects are controllable through motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

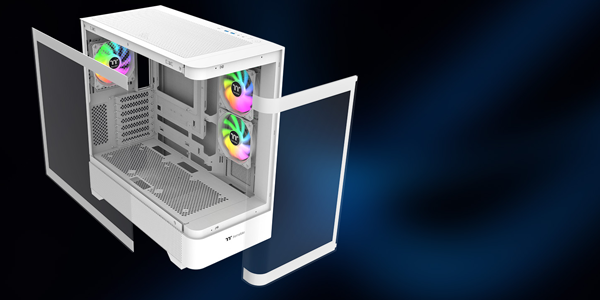

Tempered Glass Window

Tempered Glass Front and Left Panels The View 290 TG ARGB Mid Tower Chassis includes a 4mm curved tempered glass front panel alongside a 3mm tempered glass side panel, providing a transparent showcase for internal hardware.

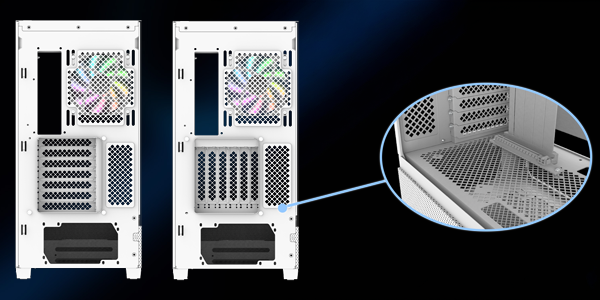

Rotational PCI-E slots

Display It Your Way Rotational PCI-E slots enable the GPU to be mounted either horizontally or vertically, with specialised standoff space that supports the installation of a 90-degree riser cable.

Extensive Compatibility

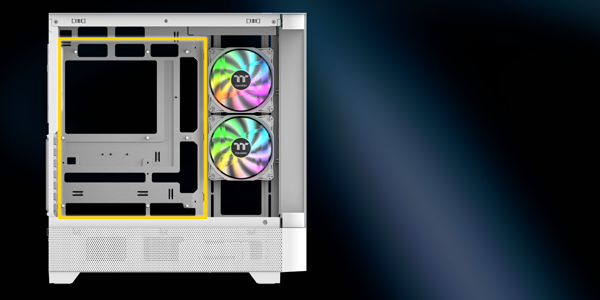

Hidden connector motherboard compatibility

Hidden-Connector MotherboardsThe View 290 TG ARGB Mid Tower Chassis, built for next-generation setups, is compatible with both standard and hidden-connector motherboards from ASUS, MSI, and GIGABYTE. Compatibility: • ASUS BTF Series.
• MSI PROJECT ZERO Series.
• GIGABYTE PROJECT STEALTH Series.

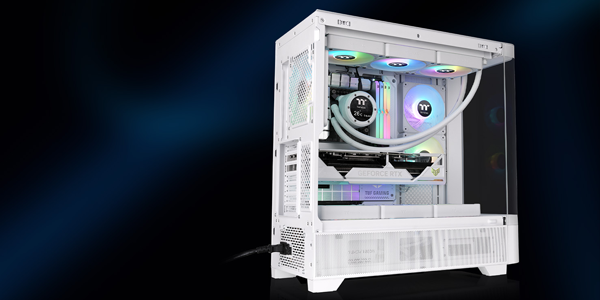

Radiator support

Radiator Support Offering effective cooling options, the chassis allows users to install a 360mm radiator at the top.

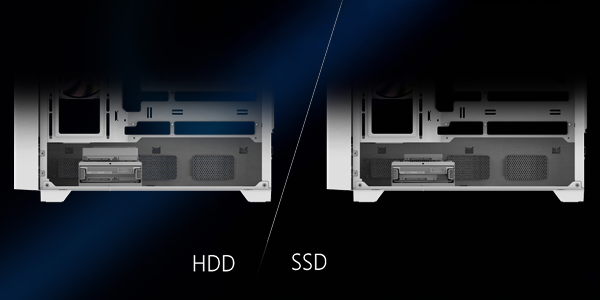

Storage support

Storage Support The View 290 TG ARGB Mid Tower Chassis supports storage with space for up to two 3.5" HDDs or two 2.5" SSDs in total.

Keep Your System Tidy

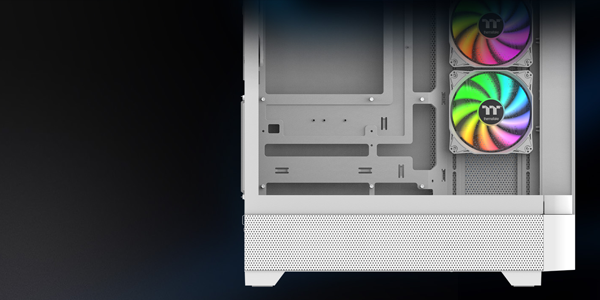

Built in PSU cover

Built-in PSU CoverThe View 290 TG ARGB Mid Tower Chassis includes a full-length power supply cover that offers ample room to manage cables neatly, ensuring unobstructed airflow around the hard drives and PSU.

Handy I/O Ports

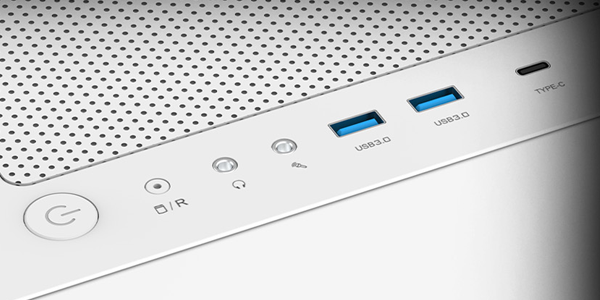

Connectivity

Convenient Connectivity The top panel provides easy access with two USB 3.0 ports, one USB 3.2 Gen 2 Type-C port, and HD audio jacks.

Specifications
Core Chassis Specifications
Case Edition The View 290 TG ARGB Snow
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
Back Connect Compatible Yes
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HD Audio
  • 2 x USB 3.0
  • 1 x USB 3.2 Gen2 Type-C
Drive Bays 2 x 3.5" / 2x 2.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 5 x 120mm
  • 4 x 120mm / 3x 140mm
Fans Included 3 x 120mm w/ Addressable RGB LEDs
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility 1 x 120/140/240/280/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility 1 x 120/240mm
Clearances
Max CPU Cooler Height 180 mm
Max GPU Card Length 450 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
  • 1 x Front
  • 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Included Addressable LED Fan/s
LED Lighting Colour RGB
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length 200 mm
Chassis Physical Specifications
Colour White
Chassis Construction Materials SPCC
Front Panel Type N/A
Dimensions 242 x 497 x 477 (WxHxD mm)
Weight
Package Type
Please Note
Additional Information
Scan Code LN160511
Model Number CA-11G-00M6WN-00
GTIN 4711658540089
