ASUS TUF Gaming GT502 Horizon ARGB White Mid Tower Gaming Case

Images

ASUS TUF Gaming GT502 Horizon ARGB, White, Mid Tower w/ Tempered Glass, 4x ARGB Fans, USB 3.2 Gen, ATX / mATX / Mini-ITX

Scan Code:LN158447

Manufacturer Code:90DC0093-B19010

Customer Reviews and Q&A

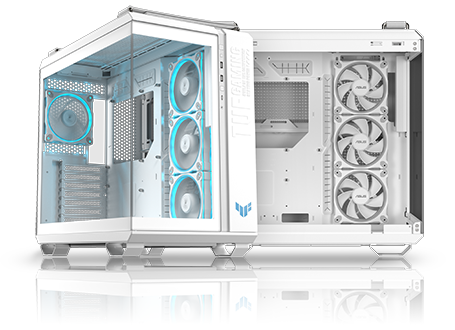

TUF Gaming GT502 Horizon ARGB White Mid Tower ATX Case from ASUS

TUF Gaming GT502 Horizon ARGB Mid Tower ATX Case from ASUS

BOUNDLESS PANORAMIC VIEW The TUF Gaming GT502 Horizon ARGB case features a panoramic design with a seamless view, unhindered by a front pillar. It has a dual-chamber chassis for independent cooling zones and comes with four pre-installed ARGB fans. The case also includes tool-free side panels, a front-panel USB Type-C port, and TUF Gaming-style woven straps. Its fully modular design allows for easy hardware installation and customisation.

Please note: Images are used for illustration purposes. Refer to the top image for the correct colour.

Experience a Seamless View

Four Pre-installed ARGB FansThree reverse blade ARGB fans and one standard ARGB fan optimise airflow and exhaust for balanced cooling performance with vibrant lighting effects.

Dual Chamber Chassis

Climate ControlGT502 Horizon ARGB internals are divided into two chambers, allowing you to build clean and configure independent cooling zones for the CPU and graphics cards. Freely expand your rig and give system components the ideal environment to dish out frames and slice through workloads.

Versatile Attachments

Chill or StowA 360 mm bracket in the rear chamber can accommodate a radiator or up to three storage devices.

Tool-Free Side Panels

Front-Panel High-Speed USB Type-C®In addition to two USB-A ports, the TUF Gaming GT502 Horizon ARGB front panel features a USB Type-C port ready for transfer speeds of up to 20 Gbps.

TUF Gaming-Style Woven Straps

Weave ho!Two durable and detachable straps can support up to 30 kg (66 lb), making it much easier to move the chassis around even when it’s packed with hardware.

Specifications

Core Chassis Specifications
Case Edition	TUF Gaming GT502 Horizon ARGB
Case Form Factor	Mid Tower
Motherboard Form Factor	ATX MicroATX Mini-ITX
Back Connect Compatible	No

I/O, Bays & Expansion
Front/Side/Top Panel I/O	1 x Headphone/Mic Combo 1 x LED Control Button 2 x USB 3.2 Gen1 Type-A 1 x USB 3.2 Gen2x2 Type-C
Drive Bays	4 x 2.5"/ 3.5" Internal
Standard Expansion Slots	8
Vertical Expansion Slots	3

Fans & Filters
Fan Bays	1 x 120mm 3 x 120mm / 2x 140mm
Fans Included	4 x 120mm w/ Addressable RGB LEDs
Fan Controller/Hub
Dust Filters	Bottom Side Top

Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility	1 x 120/140/240/280/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility	1 x 120mm
Side Radiator Compatibility

Clearances
Max CPU Cooler Height	163 mm
Max GPU Card Length	400 mm
Cable Routing Space

Side Panels
Window/s	Yes
Window Configuration	1 x Front 1 x Main Side
Window Construction	Tempered Glass

LED Lighting Functionality
LED Lighting	Yes
LED Lighting Emitters	Included Addressable LED Fan/s
LED Lighting Colour	RGB (16.7 Million Colours)
LED Lighting Support & Control	Control via Inc. Controller/Hub (Software Control)

Power Supply Compatibility
PSU Included	No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support	ATX
PSU Mounting Location	Bottom Mount, Rear
Max PSU Length	200 mm

Chassis Physical Specifications
Colour	White
Chassis Construction Materials
Front Panel Type	N/A
Dimensions	285 x 450 x 446 (WxHxD mm)
Weight	11.9 kg (Approx)
Package Type
Please Note

Additional Information
Scan Code	LN158447
Model Number	90DC0093-B19010
GTIN	4711387696620
