Antec Flux PRO Full Tower Tempered Glass White/Wood PC Gaming Case

Images

Antec Flux PRO, White/Wood, Full Tower Chassis w/ Tempered Glass, 4x 140mm/2x 120mm Fans, USB Type-C,E-ATX/ATX/mATX/mITX

Scan Code:LN149694

Manufacturer Code:0-761345-10156-1

Customer Reviews and Q&A

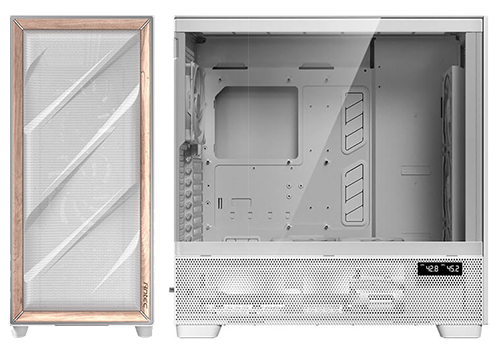

FLUX PRO White Windowed Full Tower Chassis from Antec

The Ultimate Full Power PC Case for Performance and Style The Antec Flux PRO White is a full-tower PC case meticulously engineered for superior airflow and cooling performance. Featuring the innovative F-LUX platform with a multi-directional vent system, it includes six pre-installed PWM fans — three Tranquil 140mm upfront, two P12R reverse on the PSU shroud, and one Tranquil 140mm fan on the rear — for immediate optimal heat dissipation. Highlights include an iShift 90° PSU mount for easier cable routing, integrated CPU/GPU temperature display, vertical GPU support, removable cooling brackets, tempered glass panels with birch wood accents, and extensive compatibility for up to 12 fans or 420mm radiators.

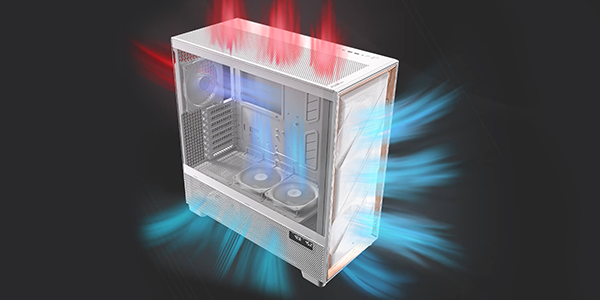

FLUX Pro white case illustrated with blue cold air entering the front, side/bottom with red warm air exiting the top/back of the case.

Flow Luxury F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 6 fans included, delivering enhanced GPU cooling performance.

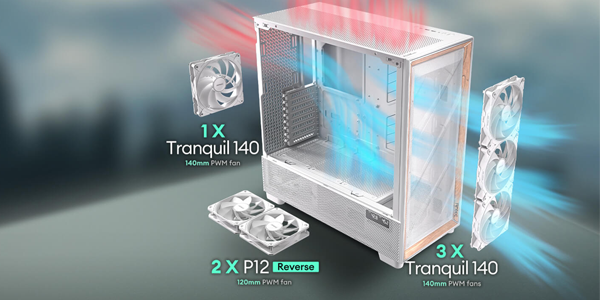

FLUX Pro white case with its included fans floating outside their pre-installed area.

P12R PWM Reverse • Speed: 600±200~1500±200rpm.
• Airflow: 61.46 CFM.
• Noise: 27.6 dB(A).

Tranquil 140 • Speed: 450±100~1500±150rpm.
• Airflow: 85.96 CFM.
• Noise: 27.5 dB(A).

FLOW Airflow Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.

Control the Flow

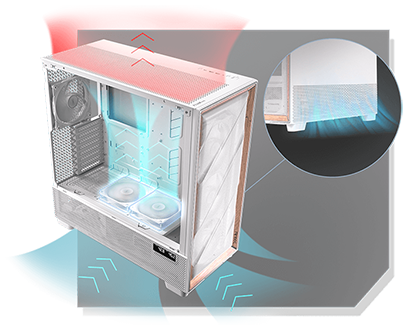

Angled FLUX PRO case with vertical cooling, blue cooling arrows entering from the front/bottom, red heat arrows exiting from the top.

Flux Vertical Cooling Air intake via the PSU chamber maximises heat dissipation while enhancing the intake effect for the graphics card.

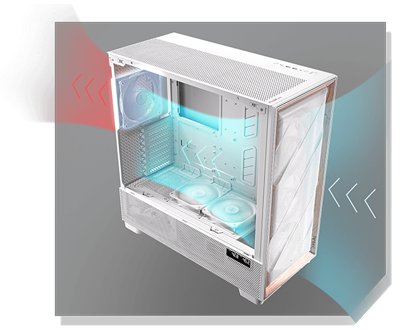

Angled FLUX PRO case with horizontal cooling, blue cooling arrows entering from the front, red heat arrows exiting from the rear.

Flux Horizontal Cooling Air intake via the front mesh provides smooth venting channel throughout the case.

Premium Wood

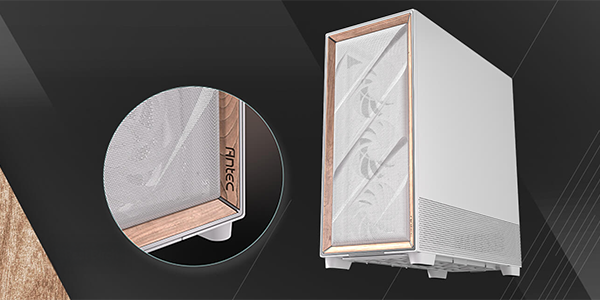

Zoomed in bottom right front angle of the FLUX PRO case, showcasing its wood trim edge.

Real Birch Front panel is crafted with a combination of metal mesh and wood (birch) to create a high-quality texture with different materials, integrating seamlessly into your home design.

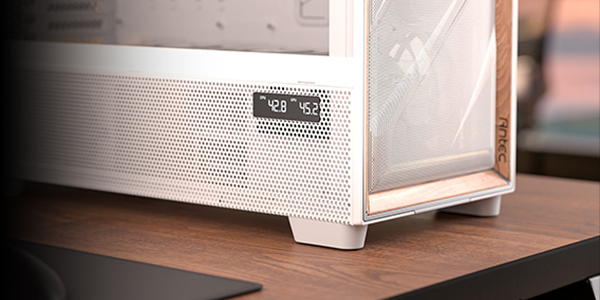

CPU/GPU Dual Temperature Display

4 Different Modes 1. GPU & CPU On.
2. GPU & CPU Off.
3. Only CPU On.
4. Only GPU On.

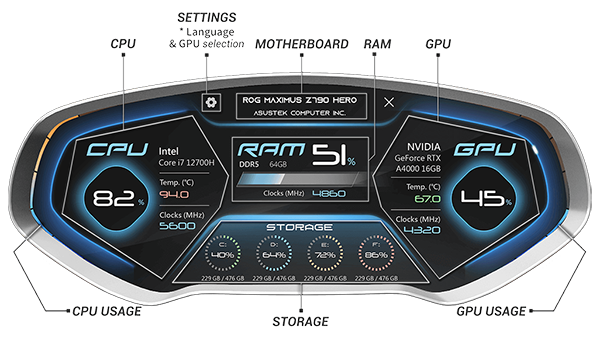

Antec iUnity software monitoring interface.

ANTEC IUNITY The Antec iUnity provides instant data on PC specs, loads, and usage.

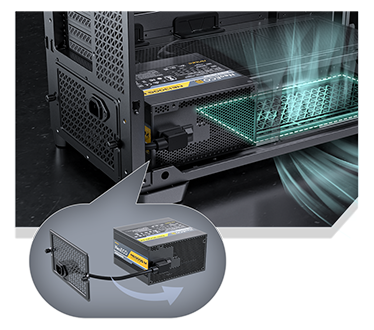

Innovative iShift PSU 90° Mount

Routing Made Simpler In addition to the standard PSU mount orientation,a 90-degree rotated option powered by the included extension cable is available. Plug in the cable connector from the right side, routing has never been easier.

Support 180mm long PSU.

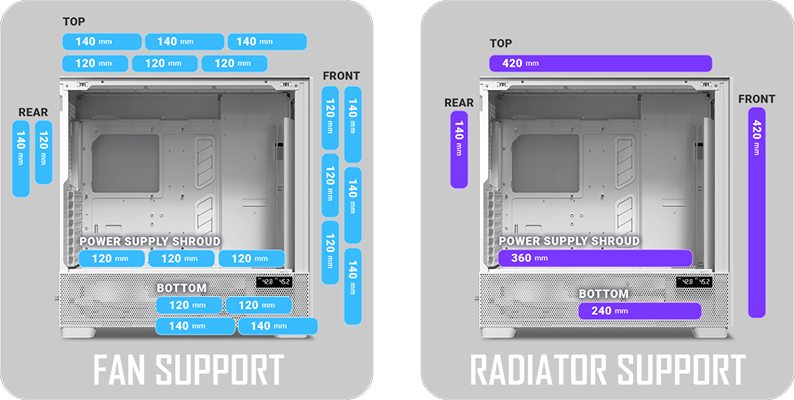

Fan & Radiator Support

Can only accommodate Top 420mm + Front 360mm radiator, or Front 420mm + Top 360mm radiator at the same time.

Specifications

Core Chassis Specifications
Case Edition	Flux PRO White
Case Form Factor	Full Tower
Motherboard Form Factor	ATX E-ATX (285mm Wide Max.) MicroATX Mini-ITX
Back Connect Compatible	No

I/O, Bays & Expansion
Front/Side/Top Panel I/O	1 x Headphone/Mic Combo 1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB 3.2 Gen1 Type-C
Drive Bays	2 x 2.5" Internal 4 x 3.5" / 4x 2.5" Internal
Standard Expansion Slots	8
Vertical Expansion Slots

Fans & Filters
Fan Bays	3 x 120mm 9 x 120mm / 9x 140mm
Fans Included	2 x 120mm 4 x 140mm
Fan Controller/Hub	Built-in Fan Hub
Dust Filters	Bottom

Liquid Cooling Support
Front Radiator Compatibility	1 x 120/140/240/280/360/420mm
Top Radiator Compatibility	1 x 120/140/240/280/360/420mm
Bottom Radiator Compatibility	1 x 120/140/240mm
Rear Radiator Compatibility	1 x 120/140mm
Side Radiator Compatibility

Clearances
Max CPU Cooler Height	190 mm
Max GPU Card Length	455 mm
Cable Routing Space

Side Panels
Window/s	Yes
Window Configuration	1 x Main Side
Window Construction	Tempered Glass

LED Lighting Functionality
LED Lighting	No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control

Power Supply Compatibility
PSU Included	No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support	ATX
PSU Mounting Location	Bottom Mount, Rear
Max PSU Length	300 mm

Chassis Physical Specifications
Colour	White
Chassis Construction Materials	Steel / Plastic
Front Panel Type	Wood
Dimensions	245 x 545 x 530 (WxHxD mm)
Weight	13.6 kg (Approx)
Package Type
Please Note

Additional Information
Scan Code	LN149694
Model Number	0-761345-10156-1
GTIN	0761345101561
