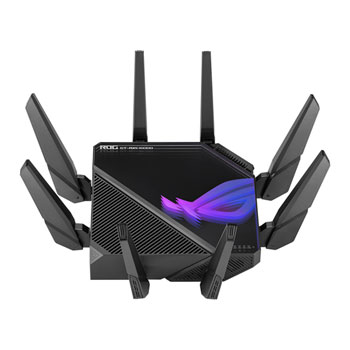

ASUS ROG Rapture Quad-Band GT-AXE16000 Gaming Router AiMesh Ready WiFi 6E 10GbE

Images

Thumbnail Thumbnail Thumbnail Thumbnail

ASUS ROG Rapture GT-AXE16000 WiFi 6E, Gaming Router, 2.0GHz CPU, 2GB RAM, 12x Antennas, Quad Band, 802.11ax, 10GbE

Scan Code:LN129606

Manufacturer Code:90IG06W0-MU2A10

Customer Reviews and Q&A

ROG Rapture GT-AXE16000 Quad-Band WiFi 6E Router from ASUS

ROG Rapture GT-AX11000 PRO Router

The world's first quad-band WiFi 6E gaming routerThe trailblazing ROG Rapture GT-AXE16000 is the world's very first quad-band WiFi 6E gaming router, delivering incredible speeds of up to 16000 Mbps. We've unlocked the full potential of the four frequency bands — 2.4 GHz, two 5 GHz* bands, and 6 GHz — with 160 MHz channels in the 5 GHz and 6 GHz bands to bring you the fastest speeds possible.

Built for Performance and Efficiency

CPU

Built for the ultimate speedROG Rapture GT-AXE16000 is powered by the latest 2.0 GHz quad-core 64-bit CPU and WiFi chipsets, giving it the performance to handle even the most demanding gaming networks. Maximum network throughput is increased by up to 18%* for lightning-fast responsiveness, accelerated data transfers and an optimized gaming experience.

Compared with former WiFi 6 platform.

RangeBoost Plus

Expanded Coverage with RangeBoost PlusASUS RangeBoost Plus can improve coverage and WiFi performance significantly compared to other models without RangeBoost. By using next-gen flagship Broadcom WiFi chipsets with the exclusive ASUS RF technology, RangeBoost Plus leverages multiple upgraded ASUS features that improve WiFi signal range and overall coverage by up to 38%.

Measured using WiFi 6 client connected at 200 Mbps to WiFi 6 router with RangeBoost Plus, compared to same WiFi 6 client connected at 200 Mbps to WiFi 5 router without RangeBoost Plus.

Flexible Network Ports Functions

Ports

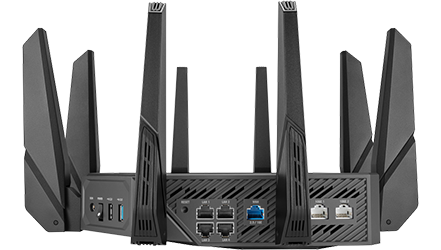

More ports more versatility ROG Rapture GT-AXE16000 has two dual-function 10 Gbps WAN/LAN ports, four 1 Gbps LAN ports, and a 2.5 Gbps WAN port. This flexibility gives you the ability to deliver massive bandwidth to your wired devices, and take advantage of ultra-high-speed internet connections in any scenarios.

Link aggregation Using LAN aggregation you can bond two 1 Gbps LAN ports together to create a 2 Gbps LAN connection, which is great for supplying extra bandwidth to high-bandwidth wired network devices such as your compatible NAS or desktop PC.

Create a Seamless Whole-Home Network

home

Rule your network WiFi 6E uses OFDMA technology to deliver increased WiFi signal range and better coverage by dividing each wireless channel into smaller sub-channels. With ASUS AiMesh, you can use a single SSID for your entire home network, with seamless coverage and no more dead zones, providing you with superfast, reliable and secure WiFi connections throughout your home.

Triple-Level Game Acceleration

Lag prevention for smoother gaming GT-AXE16000 boosts your gaming traffic every step of the way, from your PC all the way to the game server. The exclusive triple-level game acceleration stabilises your connections to prevent jitter, reduce lag, lower ping and increase speed for amazing gaming experiences.

devices

Game Device
Prioritisation

Router

Game Packet
Prioritisation

Game Server

Gamer
VPN

Complete Security for Everyone

security

AiProtection ProSecurity

WPA3Security Protocol

Parental ControlsAdvanced Safety Feature

For total peace of mind, GT-AXE16000 includes ASUS AiProtection Pro, including the latest WPA3 security protocol and advanced Parental Controls. The automatic, regularly updated security signatures help protect all your devices and personal data from internet threats.

Make Free WiFi Secure

Guard app

Wherever you are The free public WiFi you find in coffee shops, restaurants, hotels, airports and so on is rarely secure. ASUS Instant Guard uses VPN technology to create a secure data tunnel to your GT-AXE16000, adding rock-solid security to any public WiFi connections you use.

Three-Step Port Forwarding

Forwarding

The best ROG gaming router Join your clan smoothly and quickly using the OpenNAT feature. With only three steps needed to configure port forwarding, you can say goodbye to frustrating and complicated procedures!

Boost Your Game

Mobile

with just one click Minimise lag and latency for wireless network gaming with just a tap on the ASUS Router app.

Specifications
Networking, Connectivity & Ports
Model ROG Rapture GT-AXE16000
Form-Factor Desktop
Device Type Router
Compatible Internet Connections Existing WiFi Network
Network Connectivity
  • 10/100/1000
  • 10/100/1000/2500
  • 100/1000/2500/5G/10G
  • 1GbE + 10GbE
  • Wireless LAN
Network Ports
  • 4 x RJ45 10/100/1000 (Gigabit) BaseT for LAN
  • 1 x RJ45 10/100/1000/2000/2500 (2.5 Gigabit) for WAN
Other Connectors
  • 1 x USB 2.0
  • 1 x USB 3.1
USB Applications
Wired Protocols
  • IPv4
  • IPv6
Total LAN Connections 4
Total WAN Connections 2
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance .
Wireless
Wireless Speed 10756 (1148+4804+4804) Mbps
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IPv4
  • IPv6
Wireless Band Quad Band
Frequency
  • 2.4 GHz
  • 5 GHz
  • 6 GHz
  • 60 GHz
Operation Channel
Wireless Transmitter Power N/A
Antenna 12
Core Features
Features
  • DHCP Server
  • Gaming Dashboard
  • Guest Network
  • IPv6 Support
  • Quality of Service (QoS)
  • Traffic Analyser
  • WiFi Bandwidth Limiter
Router/Modem Processor 2.0 GHz quad-core processor
Internal RAM Memory 2GB
Internal RAM Memory Type DDR4
Internal Flash Memory 256MB
LED Indicators
  • 1 x 10G LED
  • 1 x 2.4 GHz Wi-Fi LED
  • 2 x 5 GHz Wi-Fi LED
  • 1 x LAN LED
  • 1 x Power LED
  • 1 x WAN Activity LED
Buttons
  • 1 x LED On/Off Button
  • 1 x Power Button
  • 1 x Reset Button
  • 1 x WPS Button
OS Support
  • Mac OS X
  • Windows 10
  • Windows 8
Max. Power Consumption . W
Security & VPN
Security Protocols WPA3
Firewall/NAT No
Management
  • Central Management
  • Cloud Access
  • Remote Management
VPN Support
Physical Specifications
Dimensions
Weight 2425 g
Additional Specifications
Note N/A
Additional Information
Scan Code LN129606
Model Number 90IG06W0-MU2A10
GTIN 4711081263838
