5 bay USB 3.0 or SATA2 Raid Box Sharkoon 4044951011735
Scan code: LN39305
Manufacturer code: 4044951011735
End Of Life
5 bay USB 3.0 or SATA2 Raid Box Sharkoon 4044951011735
Sharkoon 5-Bay 3.5" SATA HDD External Raid (0,1/10,3,5,JBOD) Box Via USB 3.0 & SATA II
Scan code:
LN39305
Manufacturer code:
4044951011735
This product is no longer available to purchase.
Email me when the availability or price changes
Product Overview
The 5-Bay RAID Box is an external hard drive housing that supports RAID Mode 0, 1/10, 3, 5 and JBOD.
The different RAID modes can be quickly and easily adjusted through a switch on the housings rear side.

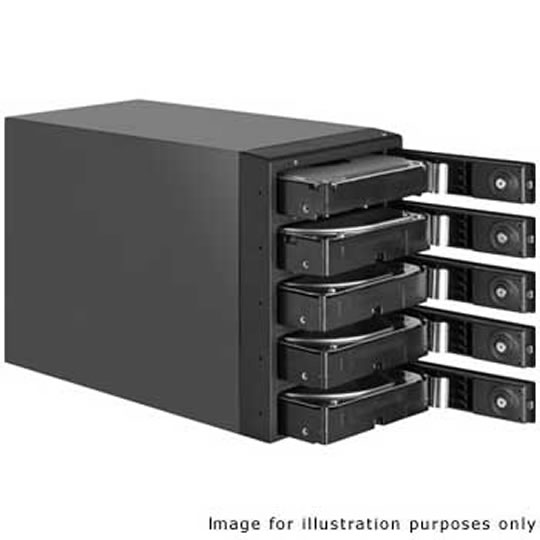

In the housing there are slots for a maximum of five 3.5" SATA hard drives that can be easily inserted and exchanged thanks to the fast-swap mechanism.

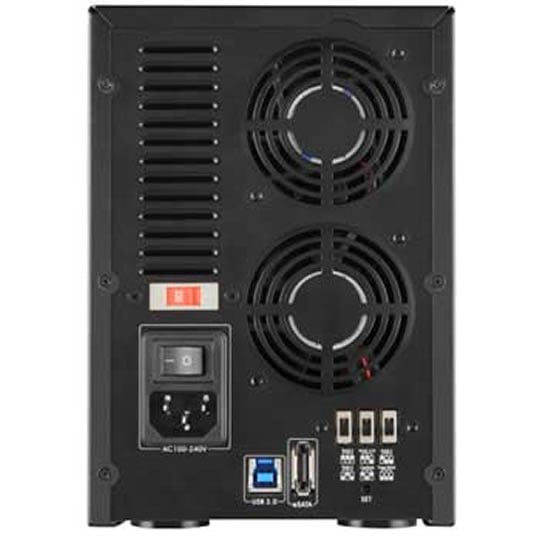

Cooling of the installed hard drives occurs through two 60mm fans on the backside.
The 5-Bay RAID Box can connect to compatible devices through either the USB3.0 or eSATA port.
Features Features:
• External RAID case with five mounting bays for 3.5" SATA HDDs
• RAID modes: Standard, 0, 1/10, 3, 5 and Combined (JBOD)
• Easy RAID mode selection
• No additional software required
• Fast Swap mechanism for easy HDD handling
• Premium quality craftsmanship
• On/off button
• LED indications for power, HDD activity and RAID mode
• Two pre-installed 60 mm fans
• Supported operating systems: Win XP/Vista/7 (32-bit and 64-bit)
Specifications:
• External interfaces: USB3.0 (downward compatible with USB2.0 and USB1.x) and eSATA
• Internal interfaces: SATA (SATA I and II; compatible with SATA III)
• Chipset: JMicron JMB393 and JMB 539
• Dimensions: 265x130x185 mm (LxWxH)
• Weight (empty): 3470 g
