Phobya G-Changer 35219
Scan code: LN36100
Manufacturer code: 35219
End Of Life
Product Overview
Innovation and cooling performance are the main arguments for this radiator! That's it? No! There is much more to this radiator when looking closer:

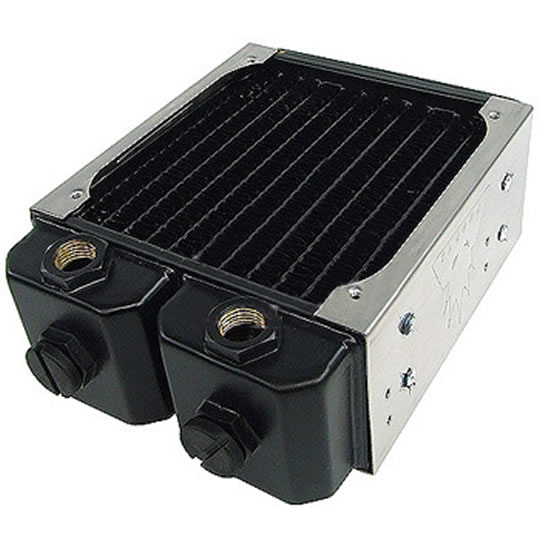

The choice of material is the basis for any great radiator. Copper fins and brass chambers are the traditional and proven materials for radiators with outstanding performance. The frame construction was coated with a robust layer of high-grade lacquer. The fins are coated with a thinner layer to improve the appearance without compromising cooling performance. The whole radiator is surrounded by a shiny metal frame which gives a great overall appearance to the radiator. The Phobya logo was machined into the sides of the radiator to show that this radiator is a serious heat exchanger.
Based on the right choice of material and design the Phobya engineers have implemented many technologies to achieve outstanding cooling performance. The first idea was that improved flow rates result in improved cooling performance. Therefore the G-Changer series feature parallel double cooling channels to greatly reduce flow resistance of the radiator. The fin spacing and size was chosen to work efficiently even with medium-speed and slow fans to achieve the best noise- to performance ratio. The unique design of the fins of this 60mm thick heat exchanger additionally allows great performance increases when using High-powered fans which makes it extremely versatile and perfect for any application!
What good is great performance if the radiator is a pain to install? To make installation quick, easy and safe the engineers at Phobya came up with another innovative concept: The radiator is equipped with connection threads both on the front and bottom which greatly increases the possible mounting locations of this radiator. The two included black thread sealing plugs safely seal the two unused threads shut.
The M3 threads in the sides of the radiator are another new feature which promises greatly eased installation: These threads allow quick and rigid installation of the radiator in 5,25" drive bays. For easy deaeration of the radiator a bleeding screw was integrated at the highest point of the back of the radiator. When filling the system simply open the screw slightly until all air is bled from the radiator. Then screw the cross-slotted screw in again and you are set to go with a completely bled radiator!
The radiator is shipped with decouplers which can be inserted between fan and mounting frame. When the mounting screws are fastened the radiator and fan form a unit which directs Airflow directly onto the fins which ensures the best possible cooling performance. Features Technical specifications:
Material: Copper fins, brass chambers
Dimensions: (L x W x H): 172x125x60mm
Connection threads: G1/4"
Weight: approx. 831g
Mounting threads: On both sides for fans or mounting, on sides for mounting
Mounting thread size: M3
Fan size compatibility: 120mm
Pressure tested: 2 Bar
Other features: Bleeding screw
Extent of delivery:
1x Radiator
4x M3x30mm Screws
4x Screws
1x Screw incl. O-ring
1x Decoupler
2x Black Seal plugs
Attention:
The reddish brown "stains" on the fins is no rust. Please note that this is a copper radiator and the note: "The whole radiator was coated with a robust black lacquer. The fins are coated with a thinner layer to improve the appearance without compromising cooling performance.". The lacquer coat is made from the same material, hence the reddish-brown "stains".
Attention: The radiator can be damaged, if the screws are screwed too deep. Please pay attention to the right length of the screws. The screws do not have the same size in every delivery.
Note: To avoid storage or manufacture-related residues in the circulation, Please rinse the radiator completely before assembling.
