Phanteks PH-TC14PE_BK Premium Edition Black with PWM Intel and AMD CPU Cooler
Delivery
DPD £5.48 Delivered by DPD Delivered to your specified address. Receive SMS with one-hour delivery window.
UPS Access Point £4.79 Collect from local shops Collect your parcel from your newsagents, petrol stations and convenience stores.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout
End of Life

Phanteks PH-TC14PE_BK Premium Edition Black with PWM Intel and AMD CPU Cooler

PH-TC14PE_BK - Phanteks Premium Edition CPU Cooler Black Edition LGA 2011/115x/1366/775 and AMD FM1/FM2/AM3+/AM3/AM2+/AM2

Scan Code: LN45380

Manufacturer Code: PH-TC14PE_BK

Customer Reviews and Q&A

HEXUS Review HEXUS is a premier website in the IT community and its unbiased, comprehensive and thorough reviews bring exceptional credibility. Read review.
Finance
Scan Finance

Buy Now Pay Later - After a 10% deposit pay nothing for 9 months.

PayBreak

Spend between £100 and £1000 and get the goods before you pay.

PH-TC14PE_BK - Phanteks Premium Edition CPU Cooler Black Edition LGA 2011/115x/1366/775 and AMD FM1/FM2/AM3+/AM3/AM2+/AM2

Phanteks PH-TC14PE_BK Premium Edition Black with PWM Intel and AMD CPU CoolerPhanteks PH-TC14PE_BK Premium Edition Black with PWM Intel and AMD CPU Cooler
Phanteks PH-TC14PE_BK Premium Edition Black with PWM Intel and AMD CPU Cooler
Product Overview

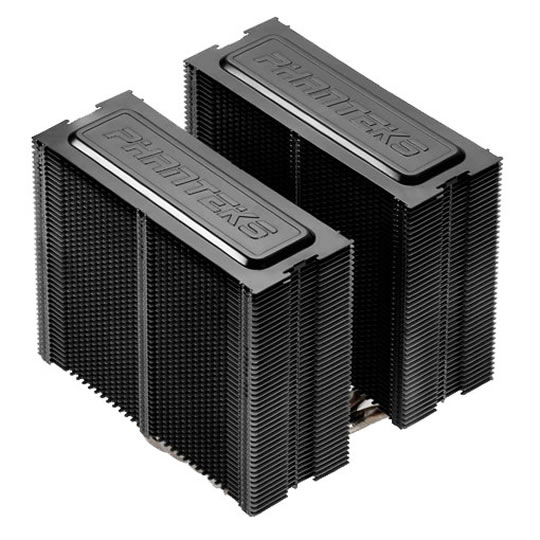

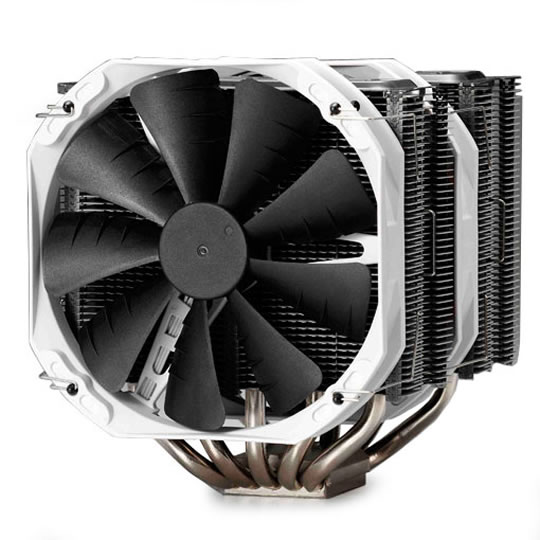

Phanteks PH-TC14PE ( Premium Edition ) twin tower thermal radiator design uses the latest aerospace technology.

By using P.A.T.S to increase cooling performance and C.P.S.C Technology to enhance thermal conductivity, heat will easily dissipate, creating an opportunity for greater overclocking. Combined with Dual Phanteks PH-F140 Premium 140mm Fans, easy-to-install SoliSku mounting kit and PH-NDC thermal compound, Phanteks PH-TC14PE is setting the new standard of today’s CPU cooling.

PHANTEKS PH-TC14PE_BK for Intel LGA 2011/1150/1151/1155/1156/1366/775 and AMD FM1/FM2/AM3+/AM3/AM2+/AM2, 5 x?8mm Dual Heat-pipes, Dual 140mm Premium Fans with PWM Adapter, Quiet CPU Cooler with patented P.A.T.S coating.

Features
• 1x PH-TC14PE_BK Heatsink
• 2x PH-F140 Premium fan, (Maelström Air Fort Optimization drive)
• PH-F140 Fan accessory
• 6 x rubber bar, 12x fan clip adaptor, 6x fan wire clip, 16x rubber pad
• 1x PWM external adaptor (Pulse Width Modulation, P.W.M. )
• SoliSku mounting kits for Intel LGA 2011/1150/1151/1155/1156/1366/775 and AMD FM1/AM3+/AM3/AM2+/AM2 ( stock backplate required )..
• 1x Y Fan Splitter
• 1x PH-NDC Thermal Compound
• Phanteks PH-TC14PE User’s manual.
Technical Specification
General
Manufacturer:
Phanteks
Socket Compatibility:
  • 1150
  • 1151
  • 1155
  • 1156
  • 1366
  • 2011
  • 775
  • AM3+
  • AM3/AM2+/AM2
  • FM1
Approx Fan Speed:
1300 rpm
Fan Airflow:
88.6 CFM
Sound Level:
19.6 dB
Material:
Copper
Adjustable Fan Speed Controller:
No
Fan Dimensions:
140 x 140 x 25 mm
Heatsink Dimensions:
159 x 140 x 171 mm (WxHxD)
Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747

Additional Notes:
5 Years Direct Manufacturers Warranty

Recommend This Product

To tell a friend about this product please fill out your name and enter their email address.

  • Send
Find Similar Products

Find similar products with the same specifications as Phanteks Premium Edition CPU Cooler Black Edition LGA 2011/115x/1366/775 and AMD FM1/FM2/AM3+/AM3/AM2+/AM2 . Please choose from the list below.

1150
1151
1155
1156
1366
2011
775
AM3+
AM3/AM2+/AM2
FM1

Please tick the check box above

1300 rpm

Please tick the check box above

88.6 CFM

Please tick the check box above

19.6 dB

Please tick the check box above

Copper

Please tick the check box above

No

Please tick the check box above

140 x 140 x 25 mm

Please tick the check box above

159 x 140 x 171 mm (WxHxD)

Please tick the check box above
Customer Reviews
Rated 4.3 out of 5 by 3 reviewers.
Rated 5 out of 5 by What a beast It's phenomenal , end of , buy it , lick it, stick it. 23 October 2014
Rated 3 out of 5 by Effective but loud This cooler is very bulky and will provide cooling on par with low end liquid cooling setups which is excellent, however it is very tedious to fit when in some cases such as the Zalman z9+, it may be easier to fit outside the case if you can manage to screw in the motherboard with this cooler attached. The cooling it provides is excellent and will keep your computer cold at load and reasonable clocks. With this cooler i managed to reach a stable 5.2ghz on an AMD fx 9370 however it was very close to the limits and I don't recommend extreme clocks like that on air cooling. This cooler is very loud due to the included fans but if you are just cooling non overclocked CPUs (the AMD FX-9370 and 9590 are overclocked from factory) you could provide sufficient cooling at load with no fans connected by passive cooling, however instead you can get 140mm pressure optimized fans that will work well with this cooler. 26 November 2013
Rated 5 out of 5 by Exceeding expectations! Had this delivered today and must say I'm impressed! Cpu never goes above 31c idle with I7 4770k @ 4.4Ghz. Haven't fully stress tested it yet though but can already see significant improvement compared to the intel stock cooler, especially whilst gaming. Only downside is that the instructions really are ridiculously poor, some intuitive is needed (or just youtube an installation vid). 23 October 2013
  • 2015-08-30T09:36:01.648-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_3, tr_3
  • loc_en_US, sid_45380, prod, sort_default
1-3 of 3
Questions and Answers
(1 Question : 2 Answers)

Product Q&A

Ask your questions. Share your answers.



« Back


Has staff answer

2 answers

Would this fit in a Cubitek Mini Cube?

Wanting to do a small ITX build focused on overclocking and wondered whether this cooler would fit within a small case such as the Cubitek Mini Cube.
Age: 17 or under
Gender: Male
2 years ago
Customer avatar
by
Read all my Q&A

Please wait while more information about Aragorn98 is loaded.
Additional information about Aragorn98 could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
I have checked the size of the Phanteks Cooler and its a few millimeters to big for that case.
Age: 18 to 24
Gender: Male
2 years ago
Customer avatar
by
Bolton, UK
Read all my Q&A

Please wait while more information about Johny is loaded.
Additional information about Johny could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
The Cubitek Mini Cube only allows for about 150mm height for heat-sinks, therefore I don't believe this cooler will fit in that particular case. I have this cooler in a mid-tower ATX case and it barely has room to fit.
1 year, 9 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about Super12 is loaded.
Additional information about Super12 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
