MSI X79A-GD45 (8D) Intel X79Socket 2011 Motherboard
End of Life

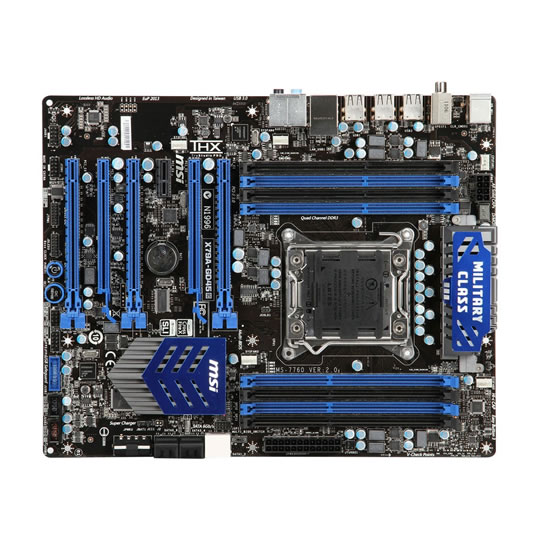

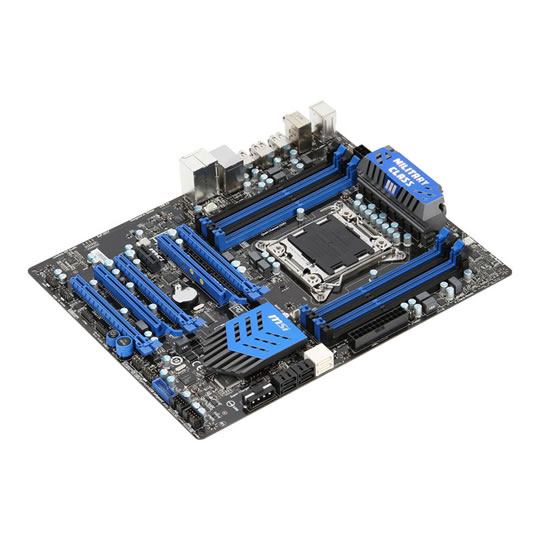

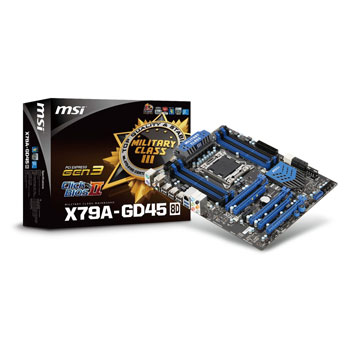

MSI X79A-GD45 (8D) Intel X79Socket 2011 Motherboard

MSI X79A-GD45 (8D), Intel X79, S2011, DDR3, Miliary Class III, OC Genie, USB3.0 + SATA6G, 5x PCI-E x16 Slots SLI/Xfire

Scan Code: LN45278

Manufacturer Code: X79A-GD45 (8D)

Customer Reviews and Q&A

Social Media

MSI X79A-GD45 (8D), Intel X79, S2011, DDR3, Miliary Class III, OC Genie, USB3.0 + SATA6G, 5x PCI-E x16 Slots SLI/Xfire

MSI X79A-GD45 (8D) Intel X79Socket 2011 MotherboardMSI X79A-GD45 (8D) Intel X79Socket 2011 MotherboardMSI X79A-GD45 (8D) Intel X79Socket 2011 MotherboardMSI X79A-GD45 (8D) Intel X79Socket 2011 Motherboard
MSI X79A-GD45 (8D) Intel X79Socket 2011 Motherboard

Product Overview

MSI mainboards maintains the commitment to product stability and reliability by introducing Military Class III components! In addition to the use of Hi-c CAP, SFC, and Solid CAP, MSI now incorporates DrMOS II, the next-generation DrMOS that provides an integrated Double Thermal Protection to maximize the lifespan of components. All Military Class III components have passed MIL-STD-810G certification, making MSI's Military Class III components synonymous with premium quality and ultimate stability.

MSI ClickBIOS II provides a consistent user interface both in the UEFI BIOS and in Windows, it provides the most convenient way for users to control system settings and supports touchscreen control.

Features

• Military Class III: Top Quality & Stability
• PCI Express Gen 3: World's 1st PCI Express Gen 3 Mainboard Brand
• Click BIOS II: World's 1st Unified UEFI & Software Graphical Interface
• OC Genie II: Overclock in 1 Second
• Supports USB 3.0 & SATA 6Gb/s

Technical Specification

Manufacturer:MSIGraphics Connectors:
Form Factor:ATX Graphics Interface:PCIe 3.0 (x16)
CPU Socket:2011 SLI Support:2 Way SLi
QPI Speed:N/ACrossfire Support:
Chipset:Intel X79 Water Cooled:No
Memory Type:DDR3 SATA:SATA III 6Gb/s
Memory Channel:Quad RAID:SATA
Memory Type (ECC):Non-ECC Expansion Slots:2 x PCIe 2.0 x1
2 x PCIe 3.0 x16
1 x PCIe 3.0 x8
Memory Type (R/U):Unbuffered Internal I/O:1 x 24pin (V)
1 x 4pin Molex (V)
1 x 8pin (V)
1 x Chassis Intrusion connector
1 x Clear CMOS Button
1 x OC Switch
4 x SATA II - 3Gb/s
2 x SATA III - 6Gb/s
1 x Serial (COM) Header
1 x START (Power On) button
1 x TPM Header
2 x USB 2.0 Header
1 x USB 3.0 Header
Memory Speed (Mhz):1066
1333
DDR3 - 1600
DDR3 - 1800
DDR3 - 2133
DDR3 - 2400(OC)

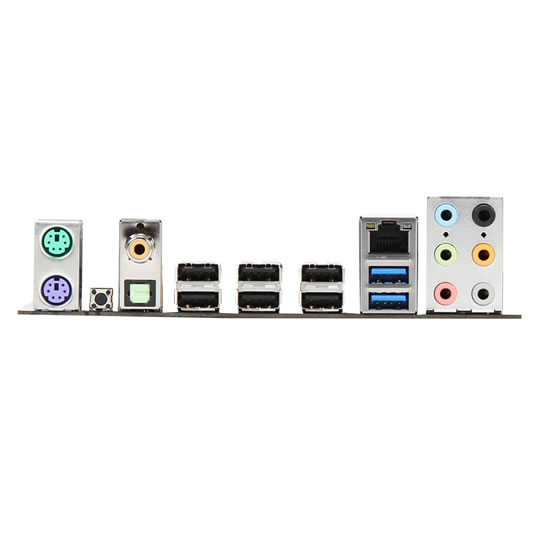

Back Panel:1 x 10/100/1000 (LAN)
1 x 7.1 Audio I/O
1 x Clear CMOS Button
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x SPDIF Out (Coaxial)
1 x SPDIF Out (Optical)
6 x USB 2.0
2 x USB 3.0
Memory Capacity:64GB

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 24 months

Type: Direct

DOA Period: 7 days

Manufacturer Contact Details

Manufacturer: MSI

Telephone: 0870 820 0009
