MSI P67A-GD53 (B3) Intel P67 Express Socket 1155 Motherboard OC Genie II
End of Life

MSI P67A-GD53 (B3) Intel P67 Express Socket 1155 Motherboard OC Genie II

MSI P67A-GD53 (B3), Intel P67, S 1155, DDR3, SATA III - 6Gb/s, SATA RAID, PCIe 2.0 (x16), ATX

Scan Code: LN38435

Manufacturer Code: P67A-GD53 (B3)

Customer Reviews and Q&A

Social Media

Product Overview

Military Class II
The perfect trinity of quality, stability and efficiency all exist at one mainboard to meet end user expectations. The MSI Military Class II series products provide the long lifespan, unparalleled quality, extreme performance and ultimate efficiency.

Hi-c CAP - 8X Lifespan than solid Capacitor!!
Insisting on the best stability, MSI utilizes Hi-c CAPs on Military Class series. Made of the rare element Tantalum, often used on space shuttles and satellites, which sustains very high temperatures and shows an amazingly high electrical conductivity.

SFC
SFC(Super Ferrite Choke).The super Ferrite Chokes use a Ferrite core that is Super-Permeable. Compare with traditional choke, the Super Ferrite Chokes run at a 35 degree Celsius lower temperature. The lower working temperature will enhance mainboard stability.

Solid CAP - 10 years long lifespan
For providing the highest quality products, we built-in Solid CAP in the entire Military Class series. This not only makes bursting capacitors a non-issue but also ensures a dramatically extended lifetime and ultra-low ESR.

Features

• B3 Stepping Ready
• Lossless 24-bit/192KHz HD Audio
• APS (Active Phase Switching)
• Live Update Online
• NVIDIA SLI & ATI CrossFireX Ready
• Military Class II components: Top quality & stability
• OC Genie II: Auto OC to boost performance in 1 sec
• ClickBIOS: Easy-to-use UEFI BIOS interface
• Super Charger: fast charge iPad/iPhone/smartphone
• THX TruStudio PRO: deliver the fullest audio experience
• Support USB 3.0 & SATA 6Gb/s

Technical Specification

Manufacturer:MSIGraphics Connectors:
Form Factor:ATX Graphics Interface:PCIe 2.0 (x16)
CPU Socket:1155 SLI Support:
QPI Speed:N/ACrossfire Support:
Chipset:Intel P67 Water Cooled:No
Memory Type:DDR3 SATA:SATA III 6Gb/s
Memory Channel:Dual RAID:SATA
Memory Type (ECC):Non-ECC Expansion Slots:2 x PCI (32 bit)
2 x PCIe 2.0 x16
3 x PCIe x1
Memory Type (R/U):Unbuffered Internal I/O:1 x 24pin (V)
1 x 8pin (V)
1 x CD-In
1 x Chassis Intrusion connector
5 x Fan Header (V)
1 x FP Audio Header
4 x Memory Slots (DDR3)
1 x OC Switch
1 x Reset Button
4 x SATA II - 3Gb/s
2 x SATA III - 6Gb/s
1 x Serial (COM) Header
1 x SPDIF-Out Header
1 x START (Power On) button
1 x System panel connector
1 x TPM Header
2 x USB 2.0 Header
Memory Speed (Mhz):DDR3 - 1066
DDR3 - 1333
DDR3 - 1600
DDR3 - 2133(OC)

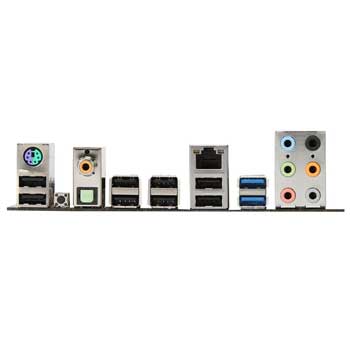

Back Panel:1 x 10/100/1000 (LAN)
1 x 7.1 Audio I/O
1 x Clear CMOS Button
1 x PS/2 Keyboard/Mouse Combo
1 x SPDIF Out (Coaxial)
1 x SPDIF Out (Optical)
8 x USB 2.0
2 x USB 3.0
Memory Capacity:32GB

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 36 months

Type: Return to base

DOA Period: 28 days

RTB Period: 36 months

Manufacturer Contact Details

Manufacturer: Scan

Telephone: 0871 472 4747

Additional Notes:
MSI, the globally renowned graphics card and motherboard manufacturer, is proud to back up their commitment to quality and reliability by providing a full three year warranty on any MSI motherboard or graphics card purchased from any authorised MSI reseller in the UK after the 1st January 2011.
