M-Audio Audiophile 2496 - 4-in/4-out Audio Card with MIDI and Digital I/O - 9900-50765-00
End of Life

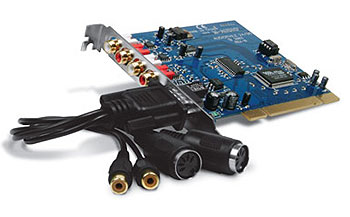

M-Audio Audiophile 2496 - 4-in/4-out Audio Card with MIDI and Digital I/O

9900-50765-00 - M-Audio Audiophile 2496 4 in / 4 out, PCI Interface, 96 kHz, 24 Bit

Scan Code: LN9114

Manufacturer Code: 9900-50765-00

Customer Reviews and Q&A

Social Media

Product Overview

*** Back In Stock***
Please Note: Although this is a fantastic card for the money, especially for older machines, there have been some compatibility issues with some (not all) Sandy Bridge & Ivy Bridge based computers.
This is a PCI card, not PCIe, compatibility is not guarenteed.


The Audiophile 2496 embodies a quantum leap in computer audio fidelity and performance unequaled by other audio cards in its price range.
This critically acclaimed PCI card features premium digital audio converters, elegant board design, and ultra-stable drivers just like the rest of the Delta line, but with a simpler I/O configuration.
As a member of the Delta family, the Audiophile 2496 supports all computer platforms and major software programs, ensuring seamless integration and rock-solid performance.
See why the Audiophile 2496 is one of the best-selling digital audio cards in the industry.

36-bit Embedded DSP
All Delta cards contain a 36-bit embedded DSP enabling a software-driven patchbay/router for all analog and digital I/O—all with extremely fast throughput for low-latency software monitoring.
A single unified control panel provides settings for clock and sample rates, buffer sizes, individual signal levels for every input and output, adjustable +4dBu/-10dBV pad controls and digital I/O control on up to four installed Delta cards.
All controls are also easily accessible through most professional audio software applications for seamless integration and operation.


Manual Manual

Features

• award-winning 24-bit/96kHz digital audio card
• 2 x 2 analog I/O
• full-duplex audio performance
• S/PDIF digital I/O with 2-channel PCM
• SCMS copy protection control
• digital I/O supports surround-encoded AC-3 and DTS pass-through
• gold-plated RCA jacks
• 1 x 1 MIDI I/O
• zero-latency monitoring
• software controlled 36-bit internal DSP digital mixing/routing
• includes Ableton Live Lite music production software, so you can make music right away

Technical Specification

Manufacturer:M-AudioiPad Compatible:No
Computer Interface Type:PCI
Dynamic Range:100.4 dB
Connections (Input):1 x MIDI
2 x RCA Phono
1 x SP/DIF Coaxial
Connections (Output):1 x MIDI
2 x RCA Phono
1 x SP/DIF Coaxial
Maximum Input Level:4.2 dBuMaximum Output Level:4.2 dBu
Mic Preamps (Max):Low Latency Performance Rating:
Instrument Inputs (Max):Dimensions (mm):
Phantom Power:NoDSP Processing:No
Sample Rate (Max):96 kHz
Misc. Notes:
Bit Resolution:24
