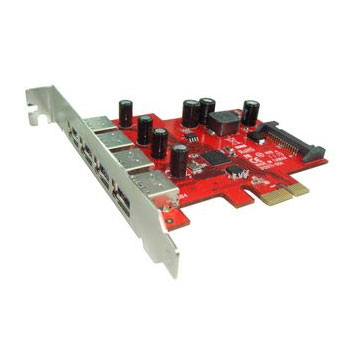

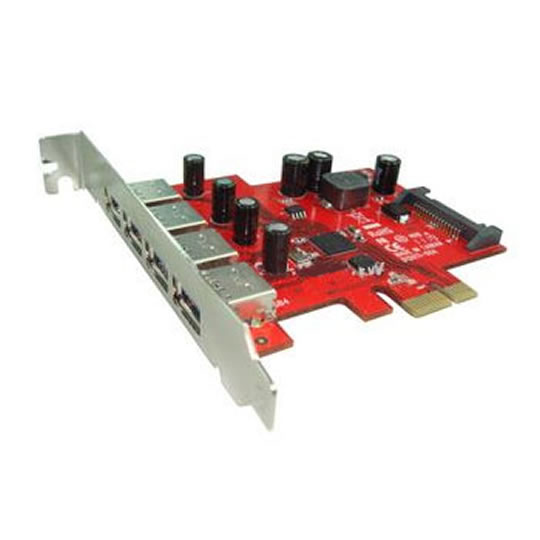

Lycom UB-120Ti 4Port USB3.0 PCIe Host Adapter
Scan code: LN40708
Manufacturer code: UB-120Ti
End Of Life
Product Overview
External 4 Port USB 3.0 SuperSpeed 5Gbps PCIe Host Adapter to support all kind of 5Gbps, 480Mbps, 12Mbps and 1.5Mbps USB Devices!
Features • 4 External USB 3.0 5Gbps Type A connectors
• Supports PCIe 1.0 and PCIe 2.0 motherboard
• PCIe Gen 2 x1 Lane Host Adapter
• Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
• Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 0.96
• All USB ports can handle SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
• Support USB3.0, USB2.0 and USB1.1 devices
• Compliant with PCI Express Specification 2.1
• Max 1.5A 5V USB bus power one USB port automatically from PCIe bus or PC power supply through on board 15Pin SATA power connector
• 64bit and 32bit Windows 7, Vista, XP drivers support
• Chipset :TI
• Fully RoHS compliant
