LD Systems MAUI 11 COLUMN P.A. System

Product Overview The white MAUI 11 is a compact array sound solution specially developed for weddings, conferences, churches and museums. Simple elegance meets pleasant sound, which is distributed softly and evenly over the entire location.

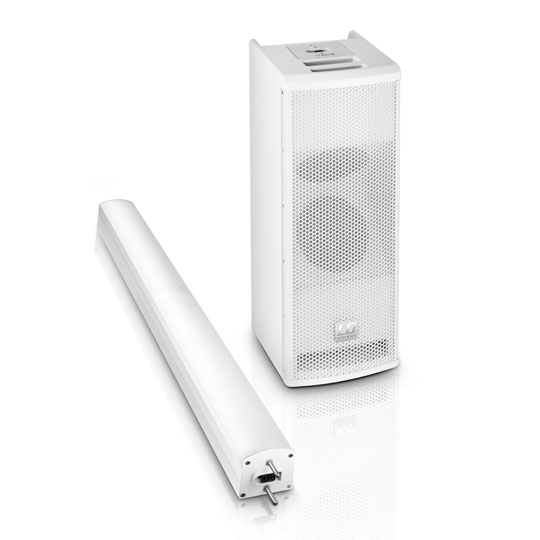

The MAUI 11 (Multiple Array User Intuitive) is an active column system with three-way amping. It provides maximum dispersion and consistent sound quality both in the listening and performing areas. The plug-and-play design can be set up and taken down in no time.

Due to the 2 x 6.5" V-Construction Tower Subwoofer the system controls are conveniently located for easy adjustment. With a power rating of 200 W RMS for the subwoofer and 140 W RMS for the columns the integrated Class D amplifier delivers plenty of clarity and punch while the inclusion of the LD LECC DSP™ (featuring limiter, equalizer, compressor and crossover functions) provides professional levels of fine tuning.

The MAUI 11 performance and convenience will be appreciated by solo performers, small groups and mobile DJs as well as those arranging private parties or corporate presentations. The multipin precision-lock system components require no speaker cables or stands, and the minimum weight and milled subwoofer handle allow for easy handling and transport. Features Max. SPL (continuous): 113 dB
Max. SPL (peak): 121 dB
Frequency response: 50 - 20000 Hz
Overall height: 1950 mm
Weight: 23,5 kg
Other features: DSP-based signal processing

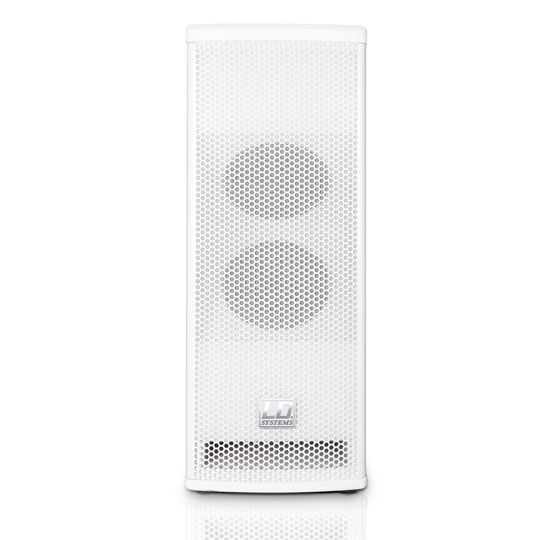

Subwoofer
Woofer dimensions: 2 x 6,5 "
Cabinet material: 12 mm MDF, 15 mm Plywood
Cabinet / Housing surface: Texture paint
Subwoofer dimensions: 256 mm x 650mm x 355mm


Mid/Hi System
Midrange size: 8 x 3 ", 8 x 76,2 mm
Midrange magnet: Neodymium
Midrange brand: Custom-made
Midrange voice coil: 1 ", 25,4 mm
horn: CD horn
tweeter dimensions: 1 "
tweeter dimensions (mm): 25,4 mm
tweeter magnet: Neodymium
tweeter brand: Custom-made
tweeter voice coil: 1 "
tweeter voice coil (mm): 25,4 mm
Mid/Hi system impedance: 4 Ohm(s)
loudspeaker inputs: 1
Speaker input connections: Custom-made multipin

Mid/Hi system cabinet material: aluminium
Mid/Hi system cabinet surface: HD coating
Mid/Hi system width: 94 mm
Mid/Hi system height: 1300 mm
Mid/Hi system depth: 95 mm

Amplifier Module (integrated in Subwoofer)
Amplifier: Class D
Amplifier Output System (RMS): 340 W
Amplifier Output System (Peak): 680 W
Amplifier Output Subwoofer (RMS): 200 W
Amplifier Output Subwoofer (Peak): 400 W
Amplifier Output Mid/Hi (RMS): 2 x 70 W
Amplifier Output Mid/Hi (Peak): 2 x 140 W
Protection circuits: Multiband limiter, short circuit, thermal overload
Cooling: Convection
Controls: Power, Main Level, sub level
Display: limit, protect (protection circuit engaged), on, signal
Power supply: Switching Power Supply
Operating voltage: 220 V AC - 240 V AC, 50-60 Hz
Power consumption Off / On / Max.: 0 / 11 / 450 W

Line inputs: 2 x stereo
Line input connectors: RCA, 6.3 mm Jack, XLR
input impedance: 25000 Ohm(s)
input sensitivity: - 5
line outputs: 1 x stereo
Line output connectors: XLR
loudspeaker outputs: 1
Speaker output connections: Custom-made multipin

DSP characteristics
Bit depth AD/DA converter: 24 / 24
internal sampling frequency: 48
Signal/noise ratio: 100 dB
