Intel Xeon E5-2697 V2 Processor Ivy Bridge - BX80635E52697V2
Delivery
DPD £5.48 Delivered by DPD Delivered to your specified address. Receive SMS with one-hour delivery window.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout

BX80635E52697V2 - Intel Xeon E5-2697 V2, LGA 2011, Ivy Bridge, 12 Core, 2.7GHz Clock, 3.5GHz Turbo, 8.0GT/s, 30MB Cache, 130W, CPU, Retail

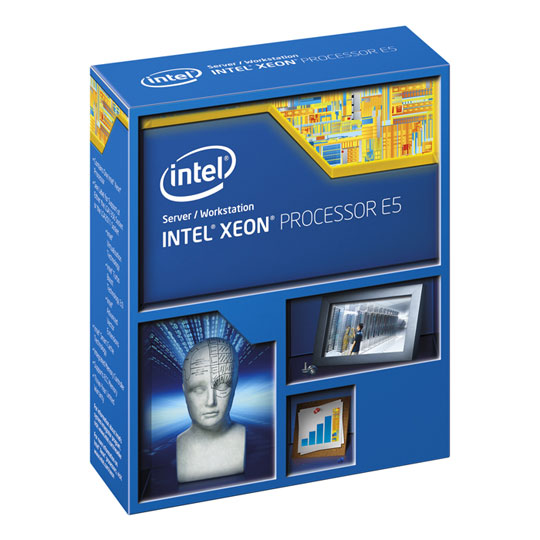

Intel Xeon E5-2697 V2 Processor Ivy Bridge
Intel Xeon E5-2697 V2 Processor Ivy Bridge
Product Overview
Intel® Xeon® Processor E5-2697 v2 - The Heart of a Modern Data Center

IT organizations around the world are driving higher value into their businesses by virtualizing their data centers and adding automation, so they can drive down costs and deliver new data-driven services more quickly and efficiently. Intel® Xeon® processor-based servers provide the foundation for this innovation. They account for the majority of all servers in today’s virtualized data centers and clouds, and also power many of today’s highest-performing workstations.
Features
Up to 35 Percent Higher Performance
The Intel Xeon processor E5-2600 v2 product family provides 50 percent more cores and cache than the previous generation, along with faster memory and additional hardware enhancements for virtualization. These innovations deliver up to 35 percent higher performance on average over previous generation Intel Xeon processor-based servers across a broad range of benchmarks. Three key technologies offer particularly high value.
• Higher performance for peak workloads.
• Up to 2x and higher performance gains for floating point operations.
• New virtualization efficiencies.

Eliminating Network Bottlenecks
The Intel Xeon processor E5-2600 v2 product family provides exceptionally fast data movement in dense virtual environments to increase server performance and accelerate network and storage communications.
• Intel® Integrated I/O for up to 2x higher bandwidth.
• Putting data right where you need it—fast.

Strengthening Security and Compliance
With the Intel Xeon processor E5-2600 v2 product family, you can protect your business more effectively using Intel® Security Technologies that help to improve workload isolation, security policy enforcement, and
data encryption.
• Better, faster data protection.
• Hardened protection for virtual data centers and clouds.

Driving Down Energy Costs at Every Level
Power and cooling costs continue to rise. The Intel Xeon processor E5-2600 v2 product family offers up to 40 percent more energy efficiency over previous generation Intel Xeon processor-based servers. It can help you get more value out of every watt by optimizing performance versus energy consumption, not only for individual servers, but also for racks, rows, and entire data centers.
• Industry-leading energy efficiency per server.
• Automated control of server power.
• Power optimization across your data center.

Optimized Platform Solutions
Intel delivers higher value by engineering complete, highly-optimized platform solutions.

Technical Specification
General
Manufacturer:
Intel
CPU Type:
Xeon
CPU Model:
E5-2697 V2
Socket:
2011
Core Name:
Ivy Bridge
Core Size:
22 nm
Core:
12 Core
No. of Threads:
24
Core Ratio:
27 x
Clock Speed:
2.7 GHz
Turbo Speed:
3.5 GHz
FSB Speed:
N/A
QPI Speed:
8.0 GT/s
DMI Speed:
N/A
Unclocked Core Multiplier:
No
Unlocked Full Range Base Clock (B-Clock):
No
Max. Memory Size:

Max. Memory Speed:

Max. Memory Channels:

Max. PCIe Lanes Supported:

Processor Graphics:

Base GPU Speed:
N/A
Max. GPU Speed:
N/A
Max. GPU Resolution:

L1 Cache (Total):
12x 32 KB instruction caches, 12x 32 KB data cache
L2 Cache (Total):
256KB x12
L3 Cache (Total):
30MB
Intel® Smart Cache:
N/A
Voltage:

Max. TDP:
130W
Thermal Specification:

Heatsink:
None
Package Type:
Retail
