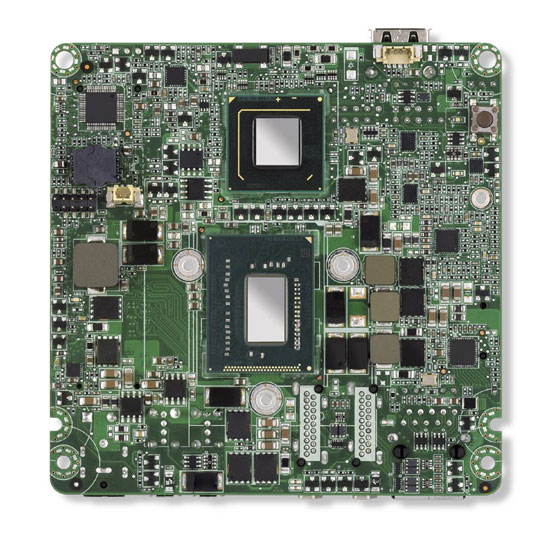

Intel BLKD33217GKE Next Unit of Computing Bare Bone Ultra Mini Motherboard
End of Life

Intel BLKD33217GKE Next Unit of Computing Bare Bone Ultra Mini Motherboard

BLKD33217GKE - Intel Golden Lake NUC Board, Intel QS77, Intel Core i3-3217U, Dual Channel DDR3, Dual HDMI/ USB 2.0, SFF 4"x4", OEM

Scan Code: LN48005

Manufacturer Code: BLKD33217GKE

Customer Reviews and Q&A

Social Media

BLKD33217GKE - Intel Golden Lake NUC Board, Intel QS77, Intel Core i3-3217U, Dual Channel DDR3, Dual HDMI/ USB 2.0, SFF 4"x4", OEM

Intel BLKD33217GKE Next Unit of Computing Bare Bone Ultra Mini Motherboard
Intel BLKD33217GKE Next Unit of Computing Bare Bone Ultra Mini Motherboard

Product Overview

Visibly smart graphics using the 3rd generation Intel® Core™ i3-3217U processor deliver amazing performance and visually stunning graphics

STUNNINGLY SMALL FORM FACTOR:
The 4"x4"x2" form factor unlocks a world of potential design applications, from digital signage and kiosks to portable innovations.

ADVANCED TECHNOLOGY:
The D33217GKE (Goleden Lake) features two SO-DIMM sockets for expandability up to 16GB of memory, two PCIe* mini-card connectors for flexible support of wireless and SSD configurations, BIOS vault technology, fast boot and the Intel® Visual BIOS. The NUC also supports The Intel® Anti-Theft™ Technology providing hardware intelligence designed to protect your device and its data if it's lost or stolen.

Features

• Intel® Core i3 - 3217U
• Intel® QS77 Express Chipset
• Dual channel DDR3, 2x SODIMM slots, 16GB maximum
• Dual HDMI
• Compatible with Microsoft® Windows® 7 & 8 / Linux (Fedora, Ubuntu, OpenSUSE)

Technical Specification

Manufacturer:IntelGraphics Connectors:HDMI
Form Factor:4" x 4" Graphics Interface:None
CPU Socket:Integrated Intel Core i3-3217U (1.8GHz) SLI Support:
QPI Speed:N/ACrossfire Support:
Chipset:Intel QS77 Express Water Cooled:No
Memory Type:DDR3 SO-DIMM SATA:N/A
Memory Channel:Dual RAID:None
Memory Type (ECC):Non-ECC Expansion Slots:2 x Mini PCIe
Memory Type (R/U):Unbuffered Internal I/O:2 x Memory Slots (DDR3)
1 x mSATA
1 x USB 2.0
1 x USB 2.0 Header
Memory Speed (Mhz):DDR3 - 1066
DDR3 - 1333
DDR3 - 1600
Back Panel:1 x 10/100/1000 (LAN)
1 x DC-In Jack
2 x HDMI
2 x USB 2.0
Memory Capacity:16GB

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 36 months

Type: Return to base

DOA Period: 28 days

RTB Period: 1 months
