Intel Core i7 950 Quad Core Processor - CPU - BX80601950
End of Life

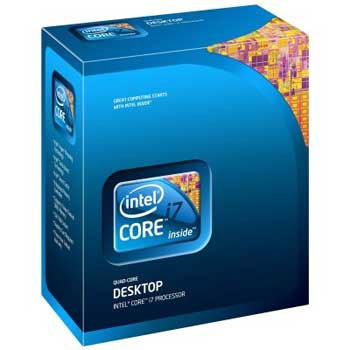

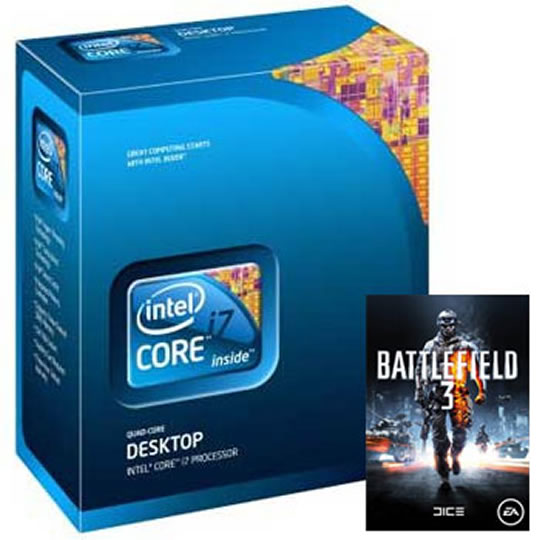

Intel Core i7 950 Quad Core Processor - CPU

BX80601950 - Intel Core i7 950, S 1366, Bloomfield 45nm, Quad Core 3.06GHz, 4.8GT/s, 8MB Cache, 23x Ratio, 130W, Retail

Scan Code: LN27179

Manufacturer Code: BX80601950

Customer Reviews and Q&A

Social Media

BX80601950 - Intel Core i7 950, S 1366, Bloomfield 45nm, Quad Core 3.06GHz, 4.8GT/s, 8MB Cache, 23x Ratio, 130W, Retail

Intel Core i7 950 Quad Core Processor - CPU
Intel Core i7 950 Quad Core Processor - CPU

Product Overview

Intel's next-generation microarchitecture (codenamed "Nehalem") represents the next step in processor energy efficiency, performance, and dynamic scalability.

Designed from the ground up to take advantage of hafnium-based Intel® 45nm hi-k metal gate silicon technology, Nehalem will also be the first to introduce Intel® QuickPath technology.

About Intel® Core™ i7 Processor
Whether you’re a serious multitasker or a multimedia enthusiast, performance matters. So why limit yourself? Unlock your full potential with the ultimate smart performance of the Intel® Core™ i7 processor.

Ultimate smart performance
A combination of greater cache size and higher frequencies give you ultimate performance for the toughest tasks.

Intel® Turbo Boost Technology?1
Automatically speeds up your processor when your PC needs extra performance.

Intel® Hyper-Threading Technology?2
The Intel® Core™ i7's 8-way or 4-way multi-task processing allows each core of your processor to work on two tasks at the same time, delivering the performance you need for smart multitasking.

As Intel's Premier Partner - Remember when buying Intel Retail CPU's - We are never the cheapest! but - we sell only genuine UK Distribution Stock - This means if you buy a Grey or Imported product Intel will NOT honour their 3 year Warranty. All Intel Boxed CPU's are now tracked by Serial Number.

http://www.intel.com/en_uk/consumer/products/processors/corei7-specs.htm

Features

• Intel® Virtualization Technology
• Execute Disable Bit
• Enhanced Intel® Speedstep Technology
• Enhanced Halt State (C1E)
• Intel® 64
• Intel® Demand Based Switching
• Intel® Turbo Boost Technology
• Intel® Hyper-Threading Technology

Technical Specification

Manufacturer:IntelMax. Memory Speed:N/A
CPU Type:Core i7 Processor Graphics:
CPU Model:950 Base GPU Speed:N/A
Socket:1366 Max GPU Speed: MHz
Core Name:Bloomfield Graphics Specifications:
Core Size:45 nmL1 Cache (Total):
Core:Quad Core L2 Cache (Total):256KB x 4
No. of Threads:L3 Cache (Total):8MB
Core Ratio:23 xIntel® Smart Cache:N/A
Clock Speed:3.06 GHzVoltage:0.80 - 1.375 V
Turbo Speed:N/AMax TDP:130W
FSB Speed:N/AThermal Specification:67.9 °C
QPI Speed:4.8 GT/sHeatsink:Active (With Heat Sink Fan)
DMI Speed:N/APackage Type:Retail
Max. Memory Size:N/A

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 36 months

Type: Direct

DOA Period: 28 days

RTB Period: 1 months

Manufacturer Contact Details

Manufacturer: Intel

Telephone: 0870 607 2439

Additional Notes:
Manufacturer's warranty is reprinted here for your information only. Warranty terms subject to change without notice.

Retail Intel Warranty:

1st year, return to Scan or Intel subject to manufacturer's warranty.
2nd and 3rd year, return to Intel only subject to manufacturer's warranty.

Business hours for phone support: 08:30 - 16:00 (United Kingdom time)
Monday - Friday Tel: 0870 607 2439

http://support.intel.com/support/processors/sb/CS-020033.htm#3

http://download.intel.com/support/processors/sb/english_3yr_warranty.pdf

Disclaimer:
Scan Computers International Limited will not be held responsible for any damage due to abnormal use or conditions, misuse, neglect, abuse, accident, improper handling or storage, serial number altered, defaced or removed; or has had the warranty seal on the system altered, defaced or removed, exposure to moisture, unauthorized modifications, alterations, or repairs, improper installation, improper use of any electrical source, undue physical or electrical stress, operator error, non-compliance with instructions.
