Intel BOXDC3217BY Next Unit of Computing Barebone Unit 4"x4"
End of Life

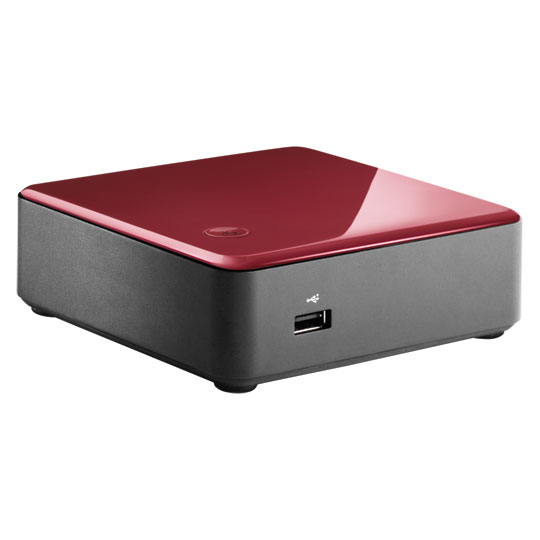

Intel BOXDC3217BY Next Unit of Computing Barebone Unit 4"x4"

BOXDC3217BY - Intel BOX Canyon NUC Barebone Unit, Core i3-3217U Dual Core 1.8GHz, Intel QS77 Express, DDR3, HDMI/ Thunderbolt/ USB 2.0

Scan Code: LN48008

Manufacturer Code: BOXDC3217BY

Customer Reviews and Q&A

Social Media

BOXDC3217BY - Intel BOX Canyon NUC Barebone Unit, Core i3-3217U Dual Core 1.8GHz, Intel QS77 Express, DDR3, HDMI/ Thunderbolt/ USB 2.0

Intel BOXDC3217BY Next Unit of Computing Barebone Unit 4"x4"Intel BOXDC3217BY Next Unit of Computing Barebone Unit 4"x4"
Intel BOXDC3217BY Next Unit of Computing Barebone Unit 4"x4"

Product Overview

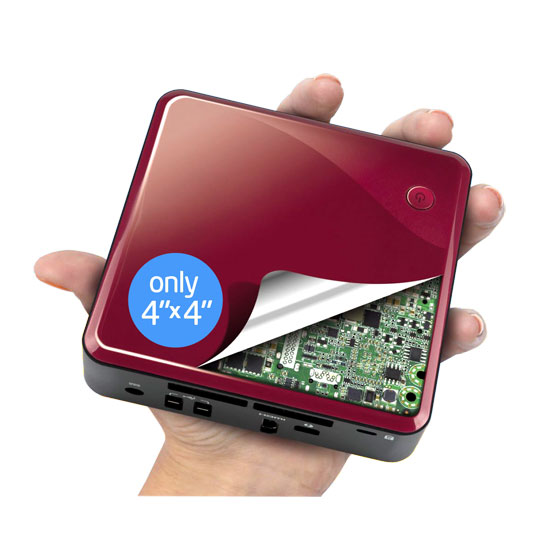

Only 4"x4"

The DC3217BY features Intel's Thunderbolt™ technology transforming device interconnectivity, dramatically increasing transfer performance with bi-directional 10Gbps speed, and offers daisy chaining to multiple devices, two SO-DIMM sockets for expandability upto 16 GB of memory, two PCIe* mini-card connectors for flexible support of wireless and SSD configurations, BIOS vault technology, fast boot and Intel® Visual BIOS.

Needs SODIMM DDR3 Memory and mSATA SSD

Please Note
This product comes with the power brick but the power lead (LN13640) needs to be purchased seperately

Features

• Intel® Core™ i3-3217U processor
• Intel® QS77 Express chipset
• Intel® Thunderbolt port for extreme connectivity and transfer rates
• HDMI port supporting HDMI 1.4a for best in class display
• Dual USB 2.0 Ports on the back panel
• 19V, 65W DC Power connector
• Dual Mini PCIe slots for expandability
• Front Panel USB 2.0 Port
• Dual SO-DIMM sockets for memory expandability upto 16 GB
• Stunningly Small Form Factor

Technical Specification

Manufacturer:IntelGraphics Interface:N/A
Form Factor:SFF SLI:No
CPU Included:YesExpansion Slots:2 x Mini PCIe
CPU Type:SATA:N/A
Core:Hard Drive Included:No
No. of Threads:N/AHard Drive Size:N/A
CPU Model:RAID:N/A
Clock Speed:N/AInternal I/O:1 x mSATA
Burst Frequency:N/AFront Panel:1 x USB 2.0
CPU Socket:Integrated Intel Core i3-3217U (1.8GHz) Back Panel:1 x HDMI
1 x Thunderbolt port
2 x USB 2.0
Chipset:Intel QS77 Express Processor Graphics:N/A
Memory Type:DDR3 SO-DIMM Base GPU Speed:N/A
Memory Included:NoMax GPU Speed:N/A
Memory:N/ADrive Bays:N/A
Memory Type (ECC):Non-ECC Optical Drives:None
Memory Type (R/U):Unbuffered Keyboard / Mouse:No
Memory Speed (Mhz):DDR3 - 1066
DDR3 - 1333
DDR3 - 1600
Remote Control:No
Max Memory Capacity:16GB Colour:Maroon
On Board VGA:YesVESA Mountable:Yes
PSU Wattage:65 WDimensions:116.6 x 112 x 39 mm (WxHxD)

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 12 months

Type: Return to base

DOA Period: 28 days

RTB Period: 12 months
