Hosa CBT-500 Cable Tester

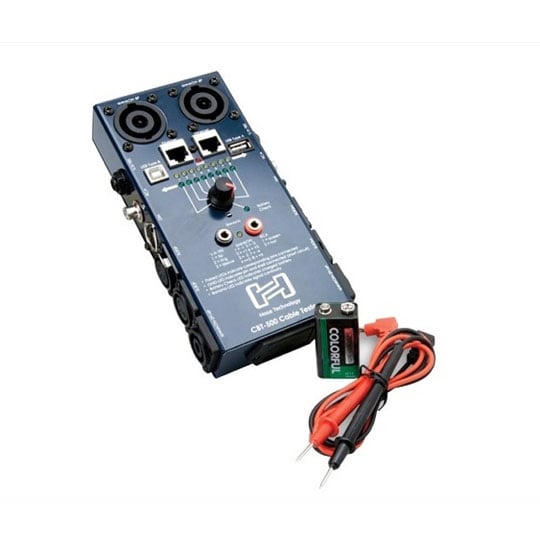

Product Overview The CBT-500 Cable Tester by Hosa Technology diagnoses signal failure in cables terminated with any combination of XLR, Phone, Phono, and speakON® connectors, as well as DIN, Ethernet, and USB Type A to Type B cables. It is also equipped with removable leads to verify continuity of additional connectors and jacks. Operation requires one 9-volt battery. Features How to use CBT-500 Cable Tester

Cable Test:
• Turn knob to position 1
• Plug one connector into corresponding jack on left side of tester
• Plug other connector into corresponding jack on right side of tester
• Turn knob to each position to check wiring of each contact

Continuity Test:
• Apply the tip of each lead to the corresponding contacts
• If continuity exists, the center LED will illuminate and tester will beep

Battery Check:
• Turn knob to Battery Check
• LED will illuminate if the battery is charged
