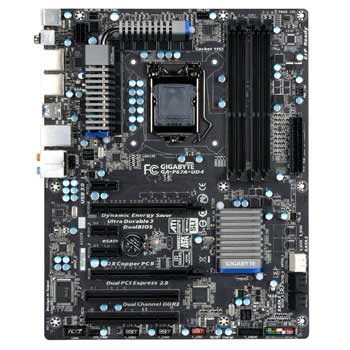

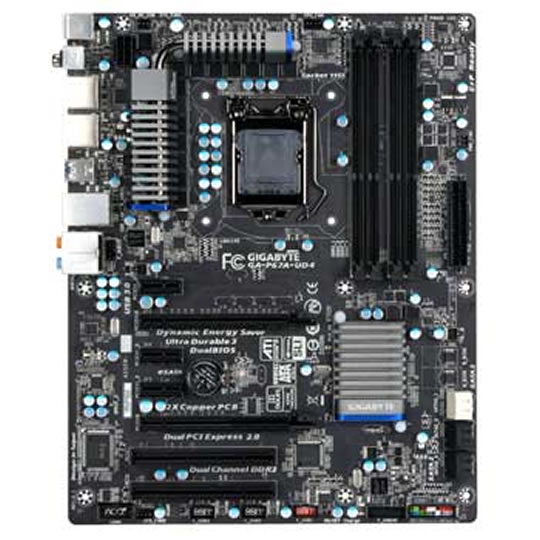

Gigabyte GA-P67A-UD4 Intel P67 Express Socket 1155 Motherboard
End of Life

Gigabyte GA-P67A-UD4 Intel P67 Express Socket 1155 Motherboard

Gigabyte GA-P67A-UD4, Intel P67, S 1155, DDR3, SATA III - 6Gb/s, RAID SATA, PCIe 2.0 (x16), ATX

Scan Code: LN36343

Manufacturer Code: GA-P67A-UD4

Customer Reviews and Q&A

Social Media

Product Overview

Get ready for a mind blowing media experience when you upgrade to a GIGABYTE P67A-UD4 motherboard. Every component on GIGABYTE P67A-UD4 motherboards is designed and engineered to deliver exceptional performance and clarity for your computing needs. Powered by the Intel® P67 chipset with support for 2nd Generation Intel® Core™ processors, GIGABYTE P67A-UD4 enjoy uniquely developed technologies such as Maximum Power Delivery technology, Dual CPU Power technology and Ultra Durable 3™ design just to name a few, that ensure a reliable and enjoyable computing experience.


**Please note: Intel Sandybridge SATA Issue on P67 and H67 Motherboards.
There is NO Issue with Sandybridge Processors (CPU's). Only Motherboards are potentially affected.
Devices connected to SATA Ports 0 & 1 or Using the SATAIII (6Gb/s) Ports are not affected.
**

Features

• 12 Phase Power Design
• Dual CPU Power Technology
• New 100% Hardware VRD 12 Compliant CPU Power Design
• Driver MOSFETs - Integration of VRM Components
• DualBIOS™ - Patented Dual Hardware BIOS Protection
• On/Off Charge Technology
• SuperSpeed USB 3.0
• SATA 6 Gbps
• 3x USB Power Boost
• Turbo XHD- Full Automatic RAID 0
• Dynamic Energy Saver™ 2
• Multi-display support with 2 way SLI™ and 2 way CrossFireX
• Power eSATA
• Hardware OverVoltage Control IC - Enabling Extreme Overclocking
• Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience
• ErP Lot 6 support

Technical Specification

Manufacturer:GigabyteGraphics Connectors:
Form Factor:ATX Graphics Interface:PCIe 2.0 (x16)
CPU Socket:1155 SLI Support:
QPI Speed:N/ACrossfire Support:
Chipset:Intel P67 Water Cooled:No
Memory Type:DDR3 SATA:SATA III 6Gb/s
Memory Channel:Dual RAID:SATA
Memory Type (ECC):Non-ECC Expansion Slots:2 x PCI (32 bit)
3 x PCIe 2.0 x1
1 x PCIe 2.0 x16
1 x PCIe 2.0 x16 (x8 Bandwidth)
Memory Type (R/U):Unbuffered Internal I/O:1 x FP Audio Header
4 x SATA II - 3Gb/s
4 x SATA III - 6Gb/s
1 x SPDIF-Out Header
3 x USB 2.0 Header
1 x USB 3.0 Header
Memory Speed (Mhz):DDR3 - 1066
DDR3 - 1333
DDR3 - 1600
DDR3 - 1866
DDR3 - 2133
DDR3 - 800

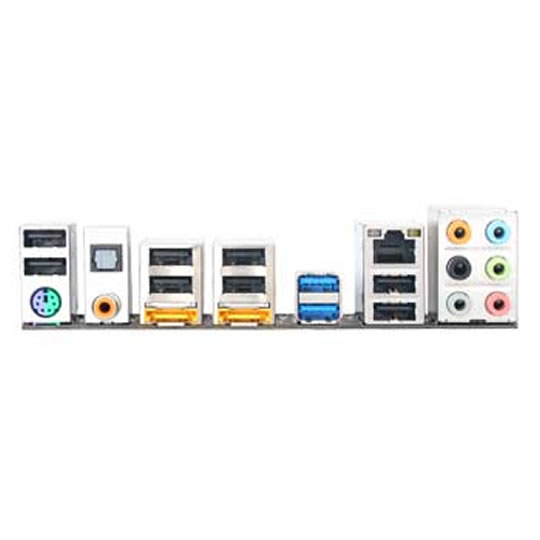

Back Panel:1 x 10/100/1000 (LAN)
1 x 7.1 Audio I/O
1 x SPDIF Out (Optical)
8 x USB 2.0
2 x USB 3.0
Memory Capacity:32GB

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 36 months

Type: Return to base

DOA Period: 28 days

RTB Period: 36 months
