Gigabyte H81M-S2PV Micro-ATX Motherboard - GA-H81M-S2PV
Delivery
DPD £5.48 Delivered by DPD Mon 03 Aug. Delivered to your specified address. Receive SMS with one-hour delivery window.
UPS Access Point £4.79 Collect from local shops Collect your parcel from your newsagents, petrol stations and convenience stores.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout

Gigabyte GA-H81M-S2PV, Intel H81, S 1150, DDR3, SATA III - 6Gb/s, PCIe 2.0 (x16), D-Sub/DVI-D, Micro ATX

Gigabyte H81M-S2PV Micro-ATX MotherboardGigabyte H81M-S2PV Micro-ATX MotherboardGigabyte H81M-S2PV Micro-ATX MotherboardGigabyte H81M-S2PV Micro-ATX Motherboard
Gigabyte H81M-S2PV Micro-ATX Motherboard
Product Overview
GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, GIGABYTE 8 series motherboards are in a class of their own.

Next Gen Intel® 8 Series Platform
The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® H81 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide significantly higher frame rates in the latest DX11 3D game titles.
Features
• Supports 4th Generation Intel® Core™ processors
• GIGABYTE Ultra Durable™ 4 Plus Technology
• GIGABYTE UEFI DualBIOS™
• USB 3.0 ports with GIGABYTE 3x USB power
• GIGABYTE On/Off Charge™ for USB devices
• LAN with high ESD Protection
• DVI-D, D-SUB, COM port on rear panel
• All solid capacitors design
Technical Specification
General
Manufacturer:
Gigabyte
Form Factor:
Micro ATX
CPU Socket:
1150
QPI Speed:
N/A
Chipset:
Intel H81
Memory Type:
DDR3
Memory Channel:
Dual
Memory Type (ECC):
Non-ECC
Memory Type (R/U):
Unbuffered
Memory Speed (Mhz):
  • DDR3 - 1333
  • DDR3 - 1600
Memory Capacity:
16GB
Graphics Connectors:
  • D-Sub (VGA)
  • DVI-D
Graphics Interface:
PCIe 2.0 (x16)
SLI Support:
N/A
Crossfire Support:
N/A
Water Cooled:
No
SATA:
SATA III 6Gb/s
RAID:
None
Expansion Slots:
  • 2 x PCI (32 bit)
  • 1 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16
Internal I/O:
  • 1 x 24pin (V)
  • 1 x 8pin (V)
  • 1 x FP Audio Header
  • 1 x Parallel Header
  • 2 x SATA II - 3Gb/s
  • 2 x SATA III - 6Gb/s
  • 2 x USB 2.0 Header

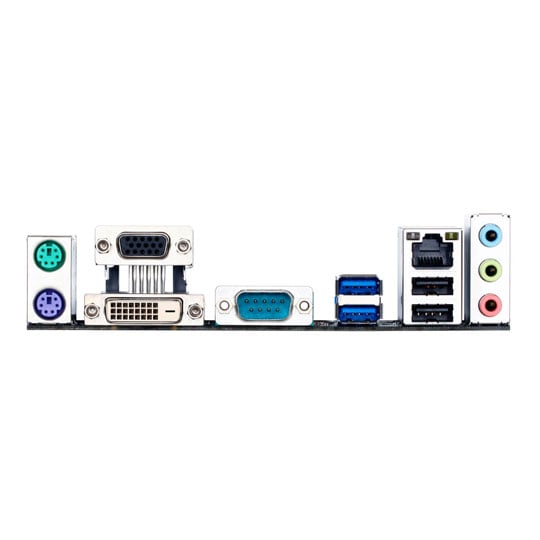

Back Panel:
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub
  • 1 x DVI-D
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Serial (COM)
  • 2 x USB 2.0
  • 2 x USB 3.0
Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
12 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
gigabyte
Telephone:
0330 223 2338
