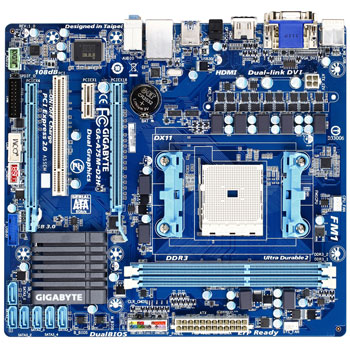

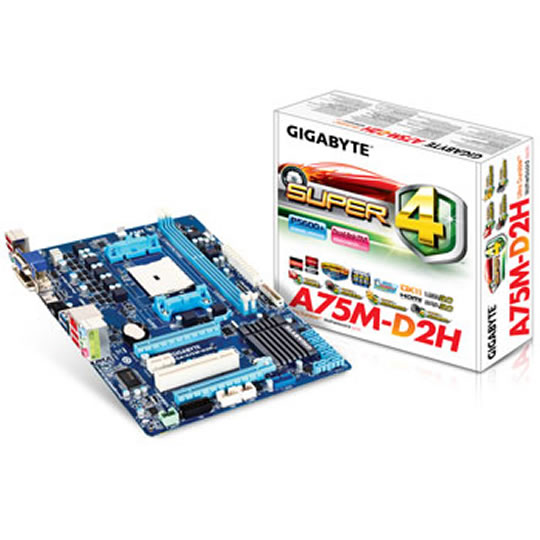

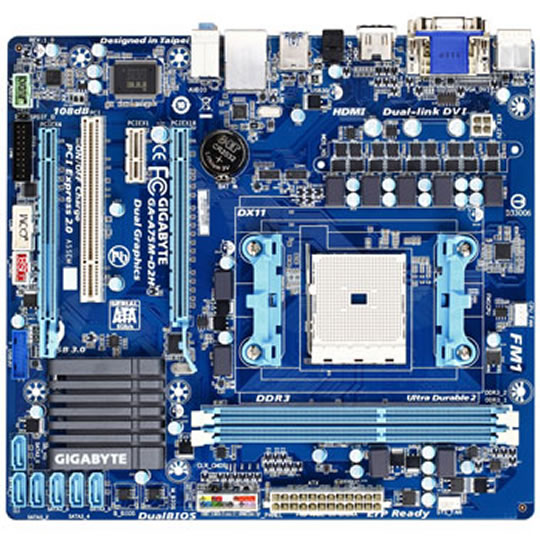

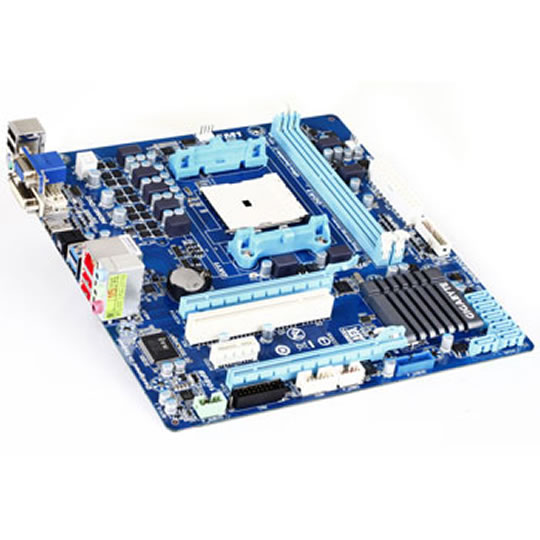

GByte GA-A75M-D2H Motherboard Socket FM1
Delivery
DPD £5.48 Delivered by DPD Delivered to your specified address. Receive SMS with one-hour delivery window.
UPS Access Point £4.79 Collect from local shops Collect your parcel from your newsagents, petrol stations and convenience stores.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout
Product Overview
To support ON BOARD Graphics on FM1 motherboards you need a compatible CPU with inbuilt GPU

GIGABYTE Super4™ motherboards are the latest range of next-generation desktop motherboards based on the AMD A75 chipset, supporting a new generation socket FM1 of 32nm AMD A-series APUs with DirectX11 graphics integrated. Not only delivering AMD’s industry-leading performance and advanced graphics capabilities, GIGABYTE Super4™ motherboards are equipped with a comprehensive range of unique features that offer mainstream PC users the most compelling platform on the market today.
Features
AMD Dual Graphics: Unrivalled Upgradability
The AMD A75 series platform showcases AMD Dual Graphics technology, allowing users to further boost 3D graphics performance by adding an additional discrete AMD Radeon™ HD 6000 series graphics card to the system. This unique Dual Graphics technology means users can enjoy higher frame rates on the latest gaming titles, utilizing the processing power of both discrete and integrated graphics processors.

AMD Fusion Graphics: Most Powerful Integrated Graphics Ever
Supporting Microsoft® DirectX® 11, OpenGL 4.1 and OpenCL 1.1 standards, AMD Fusion graphics deliver 3DMark Vantage (Performance setting) scores of over 6000 points, and a 3D gaming experience similar to entry-level discrete graphics card solutions.
Technical Specification
General
Manufacturer:
Gigabyte
Form Factor:
Micro ATX
CPU Socket:
FM1
QPI Speed:
N/A
Chipset:
AMD A75
Memory Type:
DDR3
Memory Channel:
Dual
Memory Type (ECC):
Non-ECC
Memory Type (R/U):
Unbuffered
Memory Speed (Mhz):
  • DDR3 - 1066
  • DDR3 - 1333
  • DDR3 - 1600
  • DDR3 - 1866
Memory Capacity:
16GB
Graphics Connectors:

Graphics Interface:
PCIe 2.0 (x16)
SLI Support:
N/A
Crossfire Support:
N/A
Water Cooled:
No
SATA:
SATA III 6Gb/s
RAID:
SATA
Expansion Slots:
  • 1 x PCI (32 bit)
  • 1 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
Internal I/O:
  • 1 x 24pin (V)
  • 1 x 4pin (V)
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x SPDIF-Out Header
  • 1 x TPM Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.0 Header

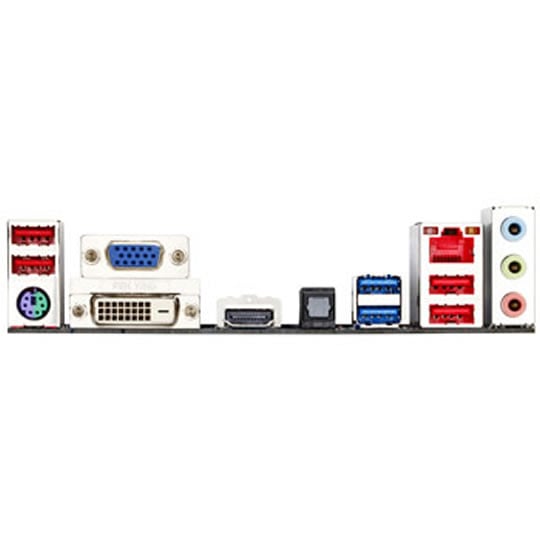

Back Panel:
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x SPDIF Out (Optical)
  • 4 x USB 2.0
  • 2 x USB 3.0
Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
