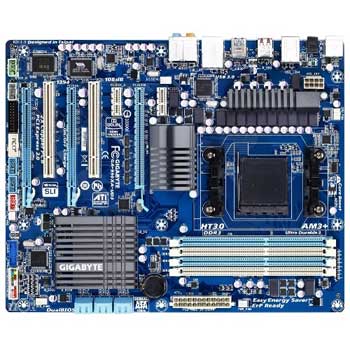

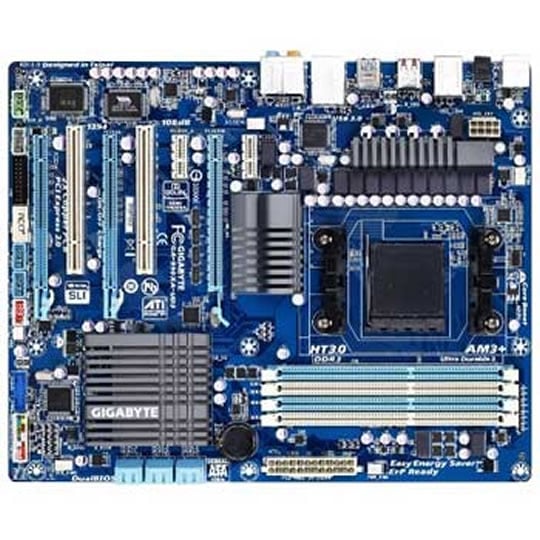

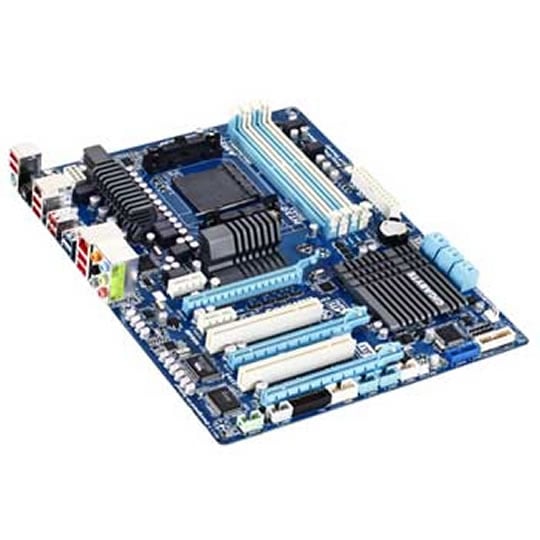

Gigabyte 990XA-UD3 ATX Motherboard - GA-990XA-UD3
Delivery
DPD £5.48 Delivered by DPD Delivered to your specified address. Receive SMS with one-hour delivery window.
UPS Access Point £4.79 Collect from local shops Collect your parcel from your newsagents, petrol stations and convenience stores.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout

Suggested Replacements

Sort by:

Page style:

1

Asus M5A99X EVO R2.0, AMD 990X, SAM3+, DDR3, PCIe 2.0 (x16), Quad SLi / Quad CrossFireX, ATX
  • High End Rating
  • Rated 3.0 out of 5 by 2 people Customer Review
  • 3XS Approved 3XS Approved

£85.99 ex VAT

£103.19 inc VAT

Product Overview
The 990XA-UD3 motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via the GIGABYTE 333 onboard acceleration technologies. Featuring the USB3.0 controller, AMD 900 series motherboards allow users to take advantage of super fast USB transfer rates of up to 5Gbps, delivering 10x faster data transfer compared to USB 2.0. Utilizing the industry's first Serial ATA Revision 3.0 solution via AMD SB950 chipset, GIGABYTE AMD 900 series motherboards offer native 6 ports of next generation high speed data storage devices support with data transfer speeds of up to 6 Gbps with RAID 0, 1, 5, 10. The AMD 900 series motherboards introduce a unique hardware design with lower resistance fuses for ensuring lower voltage drops and providing more stable and plentiful power delivery. All USB ports also benefit from a 3x power boost for better power delivery to power hungry USB devices.
Features
• On/Off Charge Technology
• Ready for New Generation of 32nm AMD AM3+ CPU
• Supports next generation of 45nm AMD AM3 CPU
• SATA 6 Gbps Support
• USB 3.0 Support
• 3x USB Power Boost
• Multi-display support with 2 way SLI™ and 2 way CrossFireX
• Dual Channel DDR3 2000+ MHz
• 108dB Signal-to-Noise ratio playback
• DualBIOS™ 3TB+ HDD Support (Hybrid EFI Technology)
• Turbo XHD- Full Automatic RAID 0/Stripe
• AutoGreen- Greening your PC via Bluetooth cellphone
• Dolby Home Theater Support
• Qualified for Windows® 7
• ErP Lot 6 support
Technical Specification
General
Manufacturer:
Gigabyte
Form Factor:
ATX
CPU Socket:
AM3+
QPI Speed:
N/A
Chipset:
AMD 990X
Memory Type:
DDR3
Memory Channel:
Dual
Memory Type (ECC):
Non-ECC
Memory Type (R/U):
Unbuffered
Memory Speed (Mhz):
  • DDR3 - 1066
  • DDR3 - 1333
  • DDR3 - 1600
  • DDR3 - 1866
  • DDR3 - 2000(OC)
Memory Capacity:
32GB
Graphics Connectors:

Graphics Interface:
PCIe 2.0 (x16)
SLI Support:
2 Way SLi
Crossfire Support:
2 Way CrossFireX
Water Cooled:
No
SATA:
SATA III 6Gb/s
RAID:
SATA
Expansion Slots:
  • 2 x PCI (32 bit)
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 2.0 x16 (x8 Bandwidth)
Internal I/O:
  • 1 x 24pin (V)
  • 1 x 8pin (V)
  • 4 x Fan Header (V)
  • 1 x Firewire 400
  • 1 x FP Audio Header
  • 4 x Memory Slots (DDR3)
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x SPDIF-Out Header
  • 1 x System panel connector
  • 1 x TPM Header
  • 3 x USB 2.0 Header
  • 1 x USB 3.0 Header

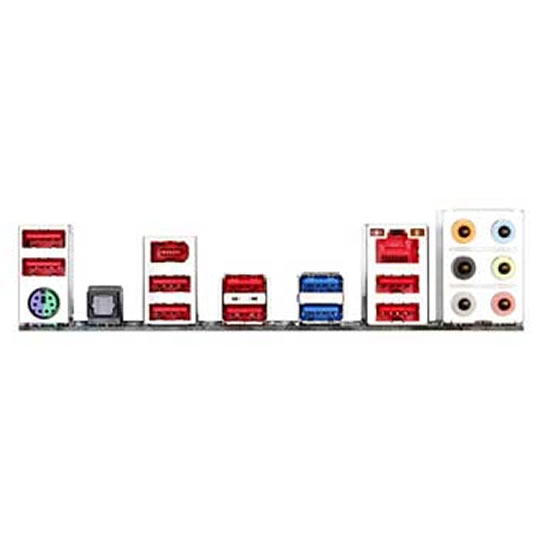

Back Panel:
  • 1 x 10/100/1000 (LAN)
  • 1 x 7.1 Audio I/O
  • 1 x Firewire (6pin)
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x SPDIF Out (Optical)
  • 8 x USB 2.0
  • 2 x USB 3.0
Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
